Choosing the right wheel stop dimensions is one of the most overlooked details in parking lot design, yet it has a huge impact on safety, accessibility, and long‑term maintenance costs. Drawing on my experience working with facility managers, parking lot designers, and OEM buyers, this guide explains wheel stop sizes, placement standards, and practical selection tips—then connects them to broader parking lot safety best practices and what we at Shenzhen Xingsheng Traffic Facilities Co., Ltd. can provide as your OEM/ODM partner.
A wheel stop (also called parking block, curb stop, car stop, or parking bumper) is a low barrier installed at the head of a parking space to stop a vehicle's tires and prevent it from rolling too far forward or backward. Correct sizing ensures it stops vehicles without damaging tires or undercarriage, keeps overhangs off sidewalks, and protects walls, glass, EV chargers, and pedestrians.
From a safety engineer's perspective, I see wheel stops as part of a system: they work together with markings, signage, lighting, and speed control devices to shape driver behavior and reduce low‑speed collisions. When dimensioning and specifying wheel stops, treat them as engineered components—not just cement or rubber blocks.
Different countries and standards bodies define recommended or typical wheel stop dimensions to balance safety, accessibility, and vehicle compatibility. Below is a practical overview you can use as a reference when designing or specifying parking lots for different markets.

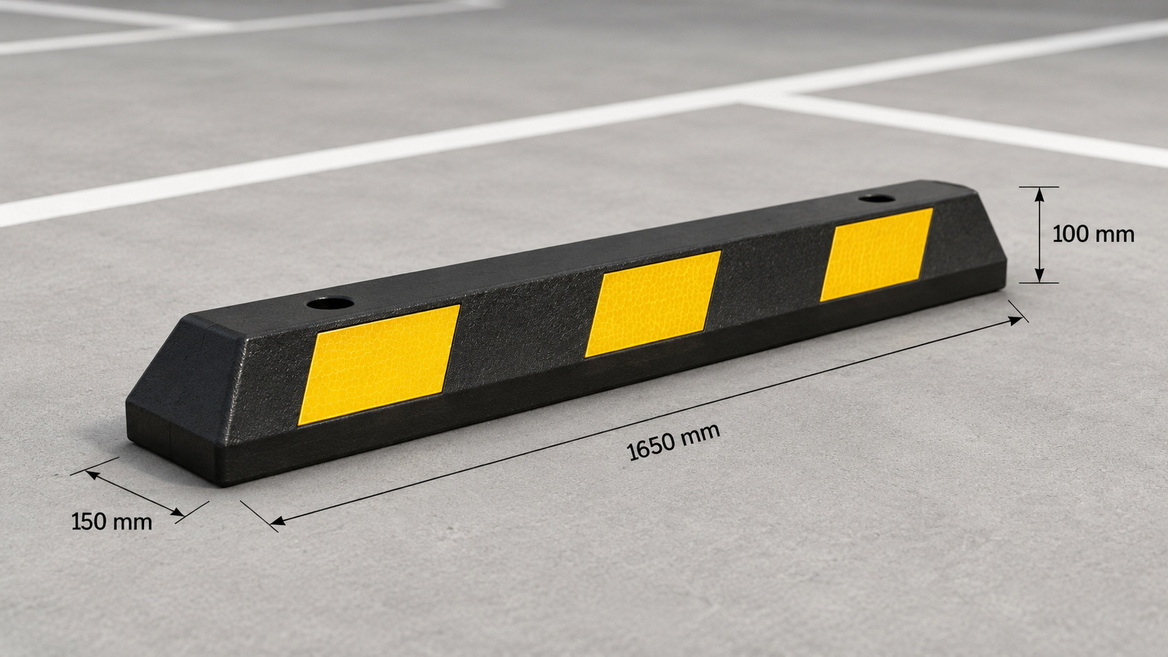

Most commercial wheel stops fall into a few common size ranges, especially in North America, Europe, the UK, Australia, and New Zealand.
Typical physical dimensions
From field feedback, the most common lengths specified for standard passenger bays are 900 mm, 1220 mm, 1650 mm, and 1830 mm, depending on lot layout and local regulations. In many applications, 100 mm is treated as a practical maximum height, giving a clear stop without harsh impact on tires.
Most wheel stops are designed in the 90–100 mm height range because this is high enough for the tire to "bump" and hold the vehicle without creating a trip hazard or interfering with low‑clearance vehicles. Taller blocks can cause undercarriage contact or make it difficult for drivers to feel a gentle stop, especially in modern vehicles with electronic parking aids.
As a rule of thumb used by many parking designers, anything above about 100 mm should be justified by a specific requirement (e. g., heavy‑duty truck yards with limited pedestrian traffic).

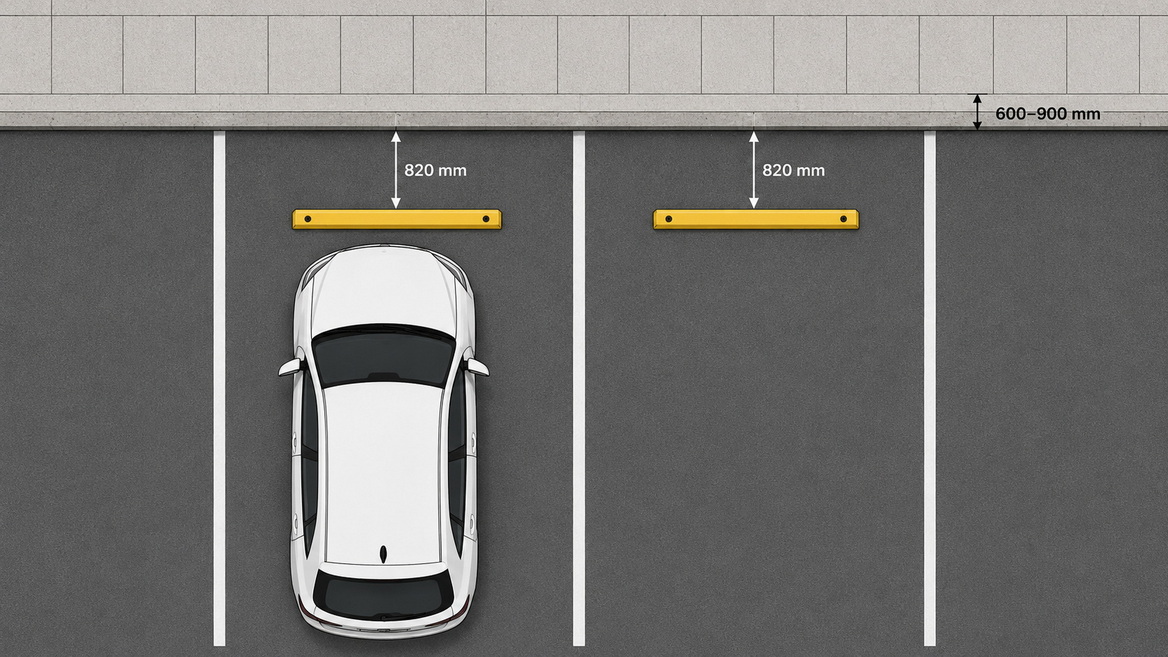

The placement of wheel stops is just as important as their size. Poorly placed blocks can block walkways, violate accessibility standards, or create nuisance trips for pedestrians.
Placement standards vary, but several widely used guidelines have emerged in practice:
- For front‑in parking, many designers keep the face of the wheel stop around 820 mm (2.7 ft) from the front of the space.
- For rear‑in parking, the gap is often increased to around 1100 mm (3.6 ft) to account for different vehicle overhangs and driver behavior.
- When there is a low curb or sidewalk in front, wheel stops may be placed 600–900 mm (2–3 ft) from the curb to prevent bumpers from overhanging pedestrian routes.
These values align broadly with Australian recommendations (around 620 mm for front‑in and 900 mm for rear‑in with low curbs), which many global designers treat as a practical reference.
From a practical installation standpoint:
- Keep wheel stops centered within the parking bay, with equal clearance to side lines for a consistent visual cue.
- Use appropriate anchors (e. g., rebar pins for concrete, mechanical anchors for asphalt, or specific anchors for precast decks) that match the base material.
- Ensure all wheel stops in a row are aligned using a chalk line or laser to avoid a "zigzag" appearance and inconsistent stopping distances.
From an industry perspective, the "best" wheel stop dimensions depend on the vehicle mix, use case, and regulatory environment of the site.
- Retail and office parking
For general passenger cars, compact SUVs, and light vans, a 1650–1830 mm long wheel stop at around 100 mm height works well for most standard bays.
- Residential garages and private lots
Shorter lengths like 900–1220 mm can be used where space is tight or aesthetics matter, as long as the tire contact area is reliable.
- Industrial and logistics yards
For larger vehicles or mixed fleets, you may require longer blocks (up to 2000 mm) or even custom profiles, and you must coordinate with local standards and internal safety policies.
- Accessible (disabled) parking bays
Stops must be sized and placed to avoid obstructing access aisles and wheelchair routes, while still preventing vehicles from encroaching into sidewalk space.
While this article focuses on dimensions, in practice we always discuss material at the same time because it affects performance and visual contrast:
- Rubber wheel stops offer good impact absorption and high visibility when combined with reflective strips, and they are easier to install and replace.
- Recycled plastic is highly durable and resistant to weathering, often used for premium commercial or institutional projects.
- Concrete wheel stops are heavy and cost‑effective but can chip or spall, especially in freeze–thaw climates.

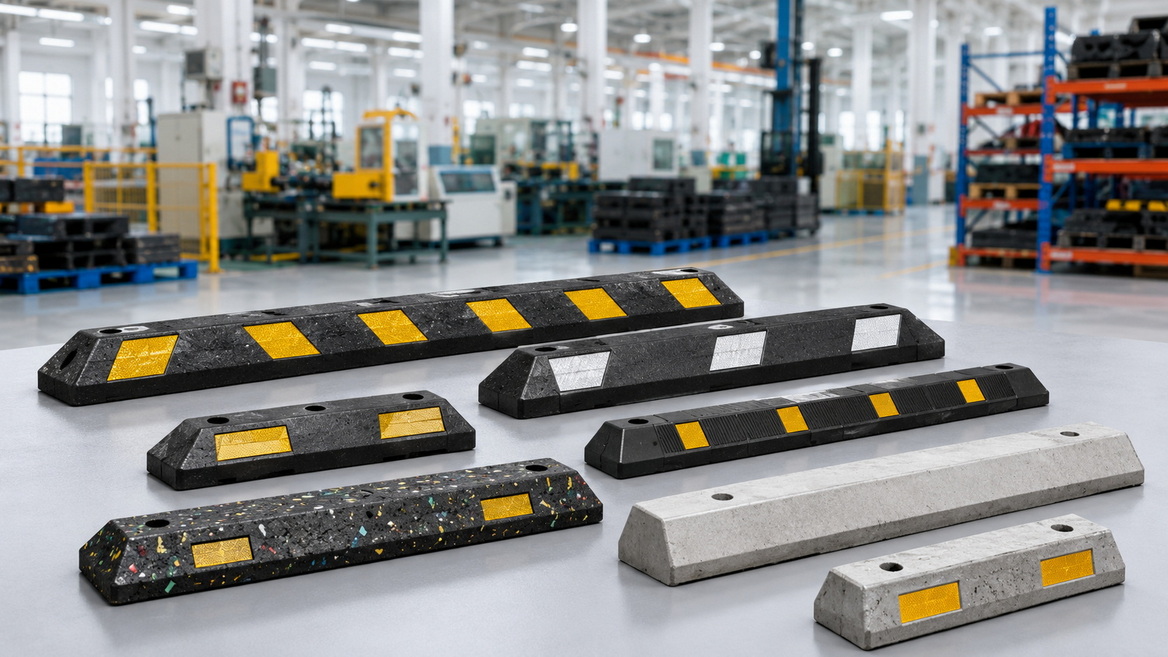

As an OEM/ODM manufacturer, we routinely adjust length, cross‑section, and material formulations to match project‑specific requirements in different markets, from standard 1650 mm rubber stops to custom‑molded polymer blocks for high‑end facilities.

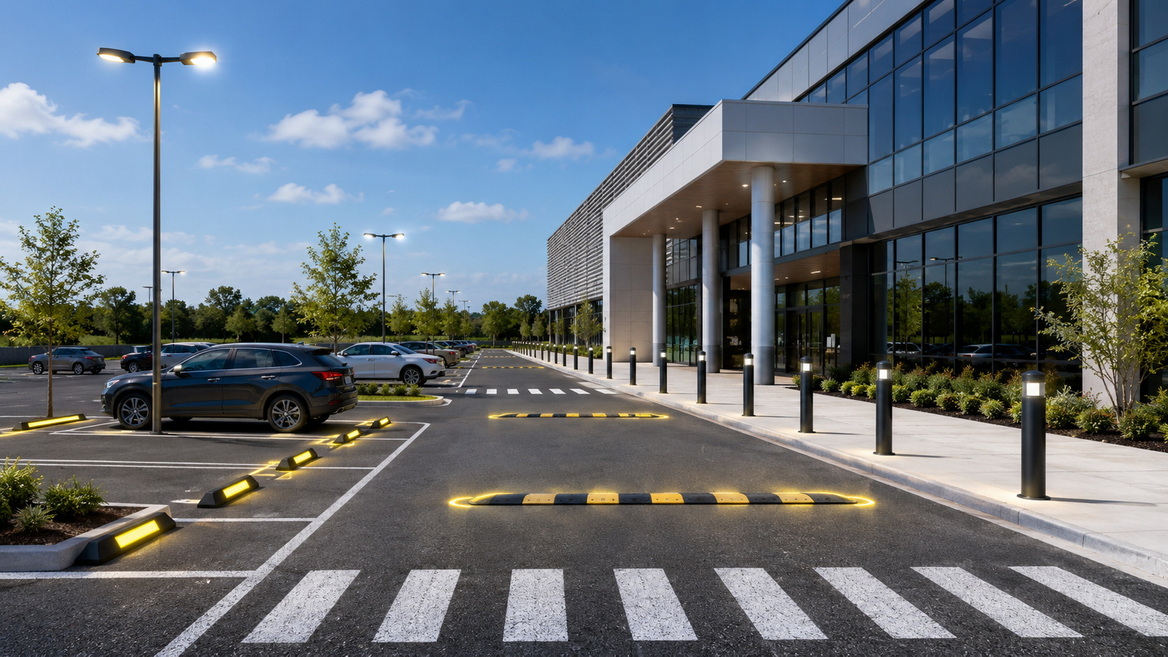

When I review parking safety as a whole, wheel stops are only one layer in a multi‑layered safety strategy. Effective projects combine properly dimensioned wheel stops with design, lighting, signage, and security.
Key elements that interact with wheel stops include:
- Efficient bay dimensions
Standard car spaces are often around 9 ft wide by 18 ft long, with wider spaces for accessible parking; correct bay sizing ensures wheel stops sit where drivers expect them.
- Clear traffic flow
One‑way lanes and angled spaces (45° or 60°) reduce conflict points and make the position of wheel stops more intuitive for drivers.
- Pedestrian pathways
Protected, well‑marked walkways must be kept clear of vehicle overhang and wheel stops, which is why correct distances from curbs and sidewalks matter.
- Speed management
Speed bumps, humps, and visible markings reduce the risk of hard impacts with wheel stops and other fixed objects.
- Lighting and surveillance
Good lighting (often 4000K–5000K LED) and visible CCTV coverage support situational awareness and discourage risky driving behaviors around parking stalls.
To make this actionable, here is a practical process we recommend to specifiers, facility managers, and distributors when selecting wheel stop sizes for a new project.
1. Define your vehicle mix
- Passenger cars only
- Mixed SUVs and vans
- Heavy vehicles or fleet operations
2. Check local regulations and standards
- Confirm any mandated wheel stop dimensions and placement clearances in your jurisdiction.
- For multi‑country portfolios, align with the strictest or most demanding standard.
3. Select a base length
- 900–1220 mm for small private or low‑traffic areas.
- 1650–1830 mm for most commercial and public lots.
- Up to 2000 mm for wide bays or heavy‑duty applications.
4. Fix height and width
- Target around 100 mm height and 150–165 mm width unless a specific standard indicates otherwise.
5. Determine placement distances
- Use ~820 mm for front‑in bays, ~1100 mm for rear‑in bays, adjusting if your local standard sets fixed values.
- Maintain 600–900 mm clearance from low curbs to protect pedestrian space.
6. Specify material and color
- Choose material (rubber, plastic, concrete) based on climate, budget, and maintenance expectations.
- Use high‑contrast colors and reflective elements where visibility is critical.
7. Plan inspection and maintenance
- Include wheel stops in inspection logs, maintenance records, and incident reports as part of your safety management system.
This simple framework not only improves safety performance but also makes your procurement specification clearer and easier to communicate to suppliers and contractors.
As a Chinese manufacturer focused on parking lot safety facilities and broader traffic safety products, we see three recurring themes in international projects: lifecycle cost, customization, and compliance.
Buyers often start by comparing unit prices, but the real difference shows up in:
- Frequency of replacements due to cracking, fading, or anchor failure
- Time and labor required for installation and maintenance
- Claims and incident costs from trips, tire damage, or vehicle–asset contact
Well‑dimensioned wheel stops with consistent quality can significantly reduce these hidden costs over the life of a parking facility.
OEM and ODM clients increasingly request:
- Custom lengths to match proprietary parking systems or compact urban layouts
- Modified cross‑sections (e. g., chamfered edges, cable channels)
- Color schemes and embedded logos to align with brand standards
With flexible tooling and production in Shenzhen, it is feasible to tailor dimensions and visual design while still meeting regional safety expectations.
Global clients operating across North America, Europe, and Asia often want a standardized family of wheel stops that:
- Share a common design language and quality level
- Use a few dimension "families" tuned to local norms (e. g., 1650 mm vs. 1830 mm length)
- Comply with local parking, accessibility, and safety regulations
By treating wheel stops as engineered products—rather than commodity blocks—you can harmonize safety, brand, and compliance across your entire portfolio.
Many parking lots already have wheel stops installed, but they may no longer meet current safety expectations. Typical triggers for upgrade projects include:
- Frequent minor collisions with walls, fences, or landscaping at the head of spaces
- Trip incidents reported by pedestrians, often due to misaligned or broken wheel stops
- Changes in vehicle mix, such as more SUVs, delivery vans, or EVs with sensitive undercarriage components
- A shift to accessibility‑focused design, requiring new clearances and overhang control
In these cases, reviewing both dimensions and layout—not just replacing like‑for‑like—can yield significant safety improvements.
As a specialized manufacturer of parking lot safety facilities and broader traffic safety solutions, we support clients across:
- Product design and optimization
Collaborating on wheel stop dimensions, materials, and profiles tailored to your local standards and branding.
- OEM/ODM services
Private labeling, custom molds, and packaging for distributors, brand owners, and project‑based OEM customers.
- Integrated parking safety solutions
Supplying matching products such as speed bumps, traffic cones, lane separators, bollards, and signage so your parking lot safety system works as a coherent whole.
If you are planning a new parking facility or upgrading an existing lot, we can help you translate high‑level safety requirements into concrete, manufacturable wheel stop specifications that are ready for design documents and procurement.
If you are designing, operating, or supplying parking lots and want safer, more consistent wheel stop solutions tailored to your local standards, contact Shenzhen Xingsheng Traffic Facilities Co., Ltd. for OEM/ODM support today. We can review your drawings, recommend dimension sets for different bays, and deliver production‑ready samples to accelerate your project timeline.
Most modern wheel stops are designed around 90–100 mm (3.5–4 inches) high to provide a clear stop for vehicle tires without causing damage or creating excessive trip hazards.
Typical lengths for standard car spaces range from 1650 mm to 1830 mm (5.5–6 ft), which provides sufficient contact area for most passenger vehicles and light SUVs.
For front‑in parking with a low curb or sidewalk, many guidelines use a clearance of about 600–900 mm (2–3 ft) from the curb face to keep vehicle overhangs out of pedestrian space.
Requirements vary by country and local jurisdiction. Some codes mandate wheel stops in specific areas (such as accessible parking or lots with pedestrian routes), while others rely on design standards and best practices rather than strict legal requirements.
Yes. For large projects or branded portfolios, it is common to customize lengths, profiles, and colors—as long as they remain consistent with local safety standards and accessibility guidelines, something an experienced OEM/ODM manufacturer can help you verify.
