12V and 24V systems both work for LED highway overhead signs, but for large-span, high‑power structures, 24V systems are usually the more robust, efficient, and scalable choice, while 12V systems can still be appropriate for smaller or retrofit projects where component ecosystems and legacy wiring dominate.
Below is an in‑depth, SEO‑optimized comparison tailored to large highway LED overhead signs, written from the perspective of an engineer working at a professional LED traffic sign manufacturer in China (Shenzhen Xingsheng Traffic Facilities Co., Ltd.).
In this guide, we will compare 12V vs. 24V systems for large highway LED overhead signs, covering electrical performance, reliability, cost of ownership, safety, and real‑world deployment scenarios. As a manufacturer focused on LED traffic signs, toll station displays, and parking guidance systems, we will also share factory‑side insights on how international customers actually specify and deploy these systems.
A 12V LED system is built around a DC bus voltage of 12 volts, typically coming from a power supply, battery bank, or solar controller. Many automotive and low‑voltage accessories use 12V, so components such as controllers and drivers are widely available.
Key characteristics:
- Common in vehicle-based or small sign applications
- Shorter runs are recommended to avoid voltage drop and dimming issues
- Often used in retrofits where 12V infrastructure already exists
A 24V LED system doubles the bus voltage to 24 volts DC, which means for the same power, the current is about half that of an equivalent 12V system. Industry analyses consistently point out that 24V LED systems support longer runs, improved voltage stability, and reduced wiring losses.
Key characteristics:
- Favored for long LED runs and large outdoor signs
- Lower current for the same power, reducing cable size and heat
- Often considered the professional default for large sign projects

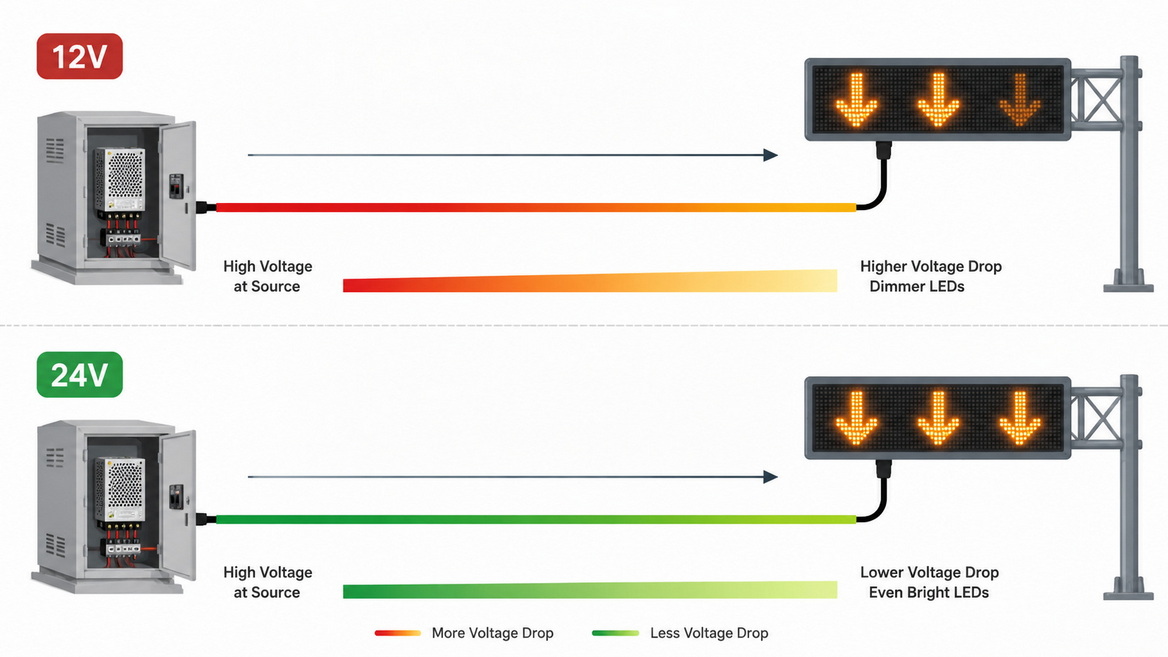

For large highway gantries, power must travel several meters from the distribution cabinet to each LED module, often across multiple sign cabinets. Over these distances, voltage drop becomes the critical design parameter.
- In a 12V system, even moderate wire lengths can result in *visible* dimming and uneven brightness across the sign.
- In a 24V system, the same power level requires about half the current, so the voltage drop is significantly reduced, improving uniformity and reliability.
For large overhead signs spanning a highway lane or multi‑lane structure, this difference directly affects legibility, safety, and compliance with highway visibility standards.
Power, current, and voltage are related by the simple formula \( P = V \times I \). For the same power:
- At 12V, current \( I = P / 12 \)
- At 24V, current \( I = P / 24 \)
That means 24V systems draw about half the current of 12V systems for the same power, which brings several advantages:
- Lower current reduces resistive losses in cables and connectors
- Smaller cable cross-sections can be used for the same power level
- Less heat in connectors and junction boxes, improving reliability
Field guidance for LED systems notes that 24V is better suited for longer LED runs with less voltage drop and dimming.
Industry resources for LED lighting state that 24V LED circuits can run significantly longer distances than 12V before brightness degradation becomes visible. Community guidance for sign and strip applications typically recommends:
- 12V: acceptable for short to medium runs, often under 5–10 m total per feed depending on load
- 24V: suitable for longer runs and multi-module installations where each feed may serve a much larger physical area
For overhead traffic signs, where LED modules may be distributed across a 5–20 m wide structure, this longer run capacity is a critical design advantage.
Higher currents put more stress on every connector, splice, and terminal. With 12V systems:
- Contact resistance causes higher I⊃2;R losses, leading to localized heating
- Heat accelerates oxidation and corrosion, especially in outdoor environments
- Over time, this can lead to intermittent faults and dim segments
Because 24V systems operate with lower current, they typically experience:
- Cooler connectors and distribution boards
- Reduced risk of thermal damage and loose contact failures over time
For highway agencies, that translates into fewer night-time maintenance call‑outs and higher uptime.
Both 12V and 24V systems depend on the reliability of power supplies and LED drivers. However:
- 24V power supplies often operate at higher efficiency under the same load compared with 12V equivalents.
- Many industrial-grade sign power supplies are optimized around 24V DC outputs for outdoor applications.
This makes 24V attractive where mean time between failures (MTBF) and total lifetime cost are critical.
Because 24V systems draw lower current, designers can either maintain the same cable size with extra margin or reduce cable gauge for the same permissible voltage drop.
Implications for large overhead signs:
- Potential to save on copper cost when using long cable runs
- Easier routing of smaller cables through tight conduit runs in gantry structures
- Reduced weight on the sign structure, which can simplify structural design
Analyses in related sectors (e. g., transport and marine electrical systems) show that while 24V is not always cheaper in very compact systems, larger installations tend to benefit from reduced wiring and loss costs.
Lower line losses (due to reduced current and voltage drop) mean more of the input power reaches the LEDs. Over thousands of operating hours per year:
- 24V systems can offer modest but real energy savings compared with 12V for the same luminous output.
- Improved efficiency also reduces thermal stress on components, indirectly extending their lifespan.
For highway agencies operating hundreds of overhead signs, even small per‑sign savings accumulate into meaningful operating cost reductions.
Highway LED overhead signs must comply with local electrical codes and transport safety standards, including limits on touch voltage, insulation, and protective earth. Both 12V and 24V DC are considered safety extra‑low voltage (SELV) in many jurisdictions when implemented correctly.
Key safety considerations:
- Proper isolation and surge protection in the power cabinet
- Compliance with energy efficiency and power density requirements for LED traffic signs (for example, standards that cap power per square meter of LED area).
- Correct overcurrent protection, regardless of bus voltage
Because 24V is widely used in industrial control and traffic systems, many certified components, enclosures, and surge devices are already optimized for 24V traffic sign applications.
As a Chinese manufacturer of LED traffic signs and highway variable message signs, we recently supported a project (scenario example) where a client needed:
- A multi‑lane overhead sign spanning more than 18 m
- High‑brightness LED modules with continuous operation in harsh weather
- Centralized power cabinets located at one side of the gantry

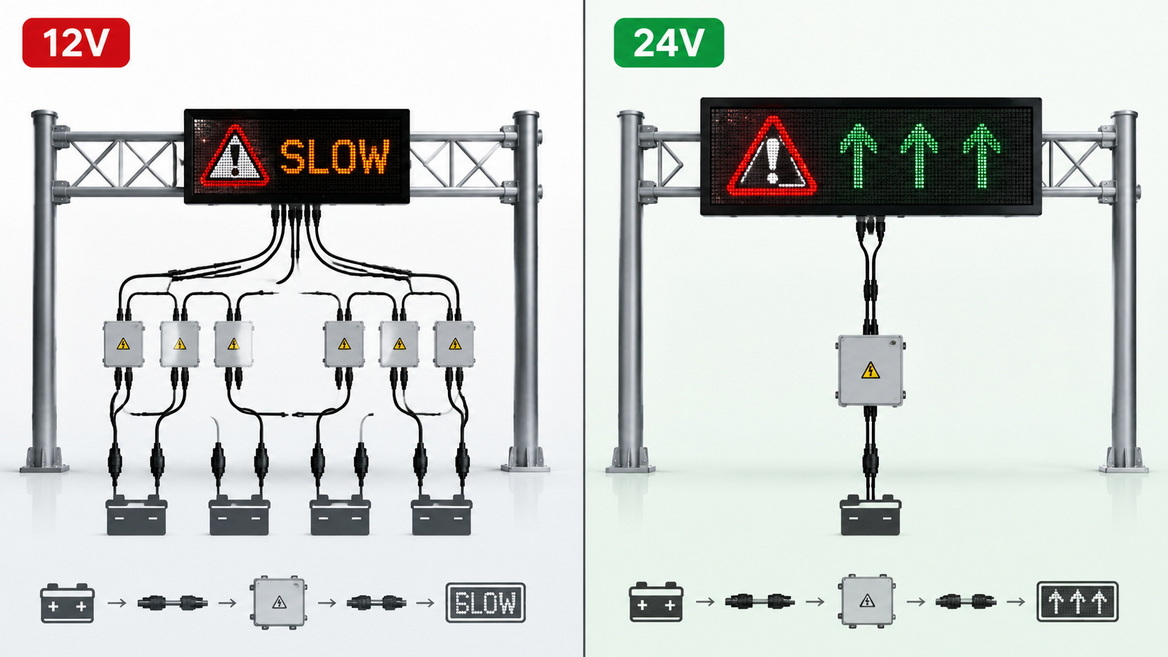

Our engineering team evaluated both options:
- 12V Option
- Required multiple feed points to limit voltage drop
- Needed larger cable cross sections, increasing cost and weight
- Higher currents raised concerns about connector heating
- 24V Option
- Allowed longer feed runs with acceptable voltage drop margins
- Enabled use of smaller gauge cables and fewer distribution points
- Improved the margin for future expansion and higher‑brightness modules

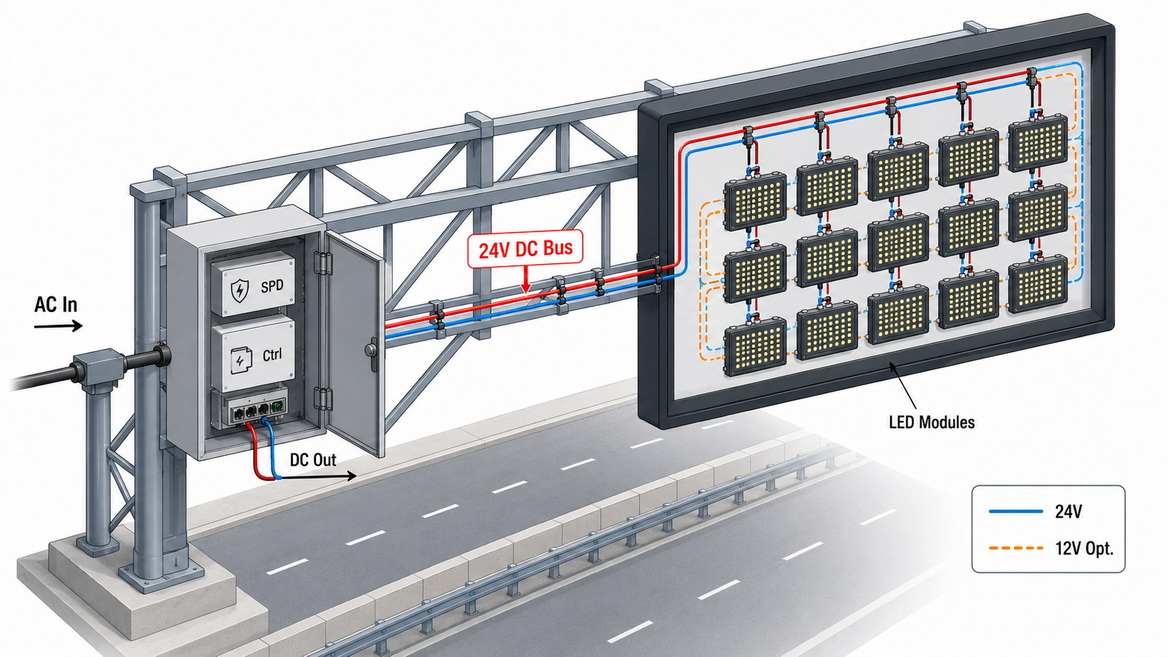

Based on this evaluation and discussions with the client's engineering consultant, the project adopted 24V as the main DC bus while keeping module drivers compatible with that standard. This strategy balanced performance, cost, and long‑term maintenance requirements.
Despite the advantages of 24V, 12V systems are not obsolete and can be a smart choice in specific contexts.
12V may be preferable when:
- The sign is small or medium‑sized with very short cable runs
- There is an existing 12V ecosystem, such as integration with vehicle power systems or legacy infrastructure
- The project uses standardized 12V modules already stocked by the operator
- The environment requires very specific controllers or sensors only available in 12V variants
In these cases, a careful layout with short runs, thicker cables, and multiple power feeds can still deliver reliable performance.
To choose between 12V and 24V for a large highway LED overhead sign, engineers can follow this high‑level checklist:
1. Calculate total power per sign cabinet
- Include LED modules, controllers, communication units, and redundancy
2. Estimate run lengths and voltage drop
- Use conservative values for cable resistance and environmental conditions
3. Evaluate cable sizing and routing
- Compare cable sizes required for 12V vs 24V to stay within allowed voltage drop
4. Assess maintenance strategy
- Consider access to gantries, traffic closure requirements, and maintenance staff skills
5. Confirm compliance with local standards
- Verify energy efficiency limits, lightning protection requirements, and SELV rules
Our team often runs this analysis with clients during the OEM/ODM design phase, ensuring that voltage selection aligns with both technical and operational constraints.
Choosing between 12V and 24V systems for large highway LED overhead signs is not just a theoretical electrical question—it directly affects safety, total cost of ownership, and long‑term reliability.
As a Chinese manufacturer focused on LED traffic signs and highway safety solutions, we can help you:
- Evaluate 12V vs 24V architectures for your specific project
- Provide OEM/ODM customization, from module design to cabinet layout
- Deliver pre‑tested, compliant systems ready for installation on highways, toll stations, and parking facilities
If you are planning a new overhead sign project or upgrading legacy infrastructure, contact our engineering team to discuss the optimal power system and sign configuration for your network.
No. While 24V offers clear advantages for large, long‑run installations, 12V can still be appropriate for smaller signs or systems tightly integrated with 12V infrastructure, such as certain vehicle-based or compact installations.
In general, all components in a circuit must share compatible voltage ratings. You can design separate circuits or segments with different voltages, but each segment must be internally consistent and correctly labeled to avoid incorrect connections.
You need to know the total power, cable length, and cable resistance, then estimate voltage drop using standard formulas. If the calculated drop causes significant dimming at the far end, it may be more efficient to switch to 24V or add additional feed points.
Energy efficiency standards focus on overall system power per area and luminous performance, not directly on bus voltage. However, because 24V systems can reduce line losses and cable-related inefficiencies, they often help designers meet stringent power density limits more comfortably.
Ask for a detailed electrical layout, including run lengths, cable sizes, estimated voltage drops, and component specifications. Request lifetime cost comparisons and confirm that the design meets local highway and electrical standards. A professional supplier should be able to justify their voltage choice with clear calculations and references.
