Views: 222 Author: XS Traffic Facilities Publish Time: 2026-05-09 Origin: Site
Choosing the right battery for solar LED road signs directly impacts operational reliability, maintenance costs, and long-term ROI. As a traffic safety professional with over 15 years of experience deploying solar road markers and LED signage systems across highways, toll plazas, and parking facilities, I've witnessed firsthand how battery selection determines whether a solar traffic system delivers consistent performance or becomes a maintenance nightmare.
Solar LED road signs depend entirely on battery storage to function during nighttime hours and overcast conditions. Unlike grid-connected traffic signals, these standalone systems have no backup power source—when the battery fails, the safety device goes dark. Industry data reveals that 89% of solar LED street light failures stem from battery malfunctions, with lead-acid batteries accounting for the majority of these issues. For municipalities managing 1,000 solar road markers, this translates to hundreds of thousands of dollars in annual replacement costs and over 200 man-hours of maintenance labor.
The battery must meet four critical requirements for traffic safety applications: high energy density to store sufficient power in compact housings, deep discharge capability to maximize available energy, temperature resilience for extreme weather conditions, and extended cycle life to minimize replacement frequency. At Shenzhen Xingsheng Traffic Facilities Co., Ltd., we've tested both battery technologies across diverse climates and traffic environments, from desert highways exceeding 140°F to northern toll plazas experiencing sub-zero temperatures.
Lithium iron phosphate batteries represent the current industry standard for solar road markers and LED traffic signs. This chemistry delivers 4,000 to 6,000 charge cycles, translating to 10-15 years of reliable operation in solar applications. The technology's core advantage lies in its phosphate-based cathode structure, which provides exceptional thermal stability and eliminates the thermal runaway risks associated with other lithium chemistries.
Energy efficiency stands out as a primary benefit—LiFePO4 batteries achieve 95% charging efficiency, meaning they capture and store 95% of solar panel output. For a 100-watt solar panel generating 500 watt-hours daily, a lithium battery stores 475 watt-hours of usable energy. This high efficiency proves critical for solar road signs in regions with limited sunlight or frequent cloud cover.
Depth of discharge (DoD) reaches 80-100% with LiFePO4 technology, allowing operators to safely utilize the battery's full capacity without degradation. A 100Ah lithium battery provides 100Ah of usable power, whereas an equivalent lead-acid unit delivers only 50Ah due to its 50% DoD limitation. This difference enables smaller, lighter battery installations for the same operational runtime.

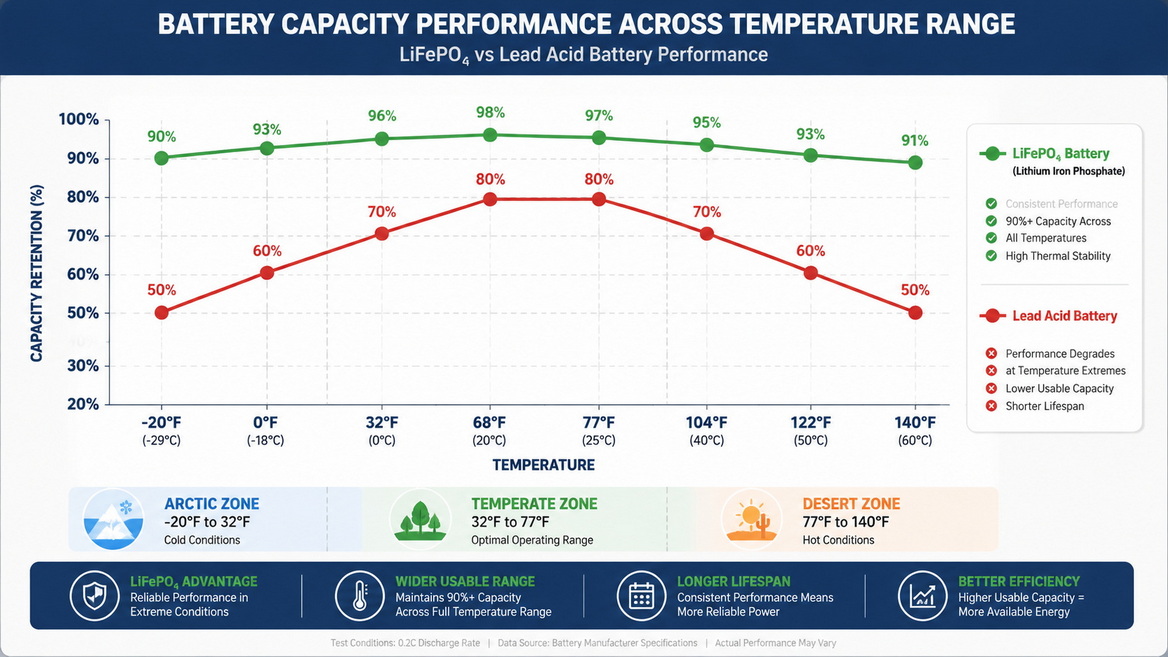

Temperature performance extends from -20°F (-29°C) to 140°F (60°C), maintaining consistent output across extreme conditions. Field testing in Arizona desert installations and Minnesota highway projects confirmed that LiFePO4 batteries maintain over 90% capacity at temperature extremes where lead-acid batteries experience 50% capacity loss.
Zero maintenance requirements distinguish lithium batteries from traditional alternatives. The sealed design prevents electrolyte leakage, eliminates water top-up needs, and requires no equalization charging. For highway departments managing hundreds of solar road markers across remote locations, this characteristic alone generates substantial labor savings—our clients report annual maintenance cost reductions from $50-80 per unit to $0 after switching to LiFePO4 technology. Safety features include built-in Battery Management Systems (BMS) that prevent overcharging, over-discharging, and short circuits. The phosphate chemistry resists thermal runaway, produces no off-gassing during operation, and carries minimal fire risk when properly installed. These characteristics prove essential for unattended traffic safety devices operating 24/7 in all weather conditions.
Lead-acid batteries have powered solar road signs for decades due to their low initial cost and widespread availability. These batteries utilize a chemical reaction between lead plates and sulfuric acid to store energy. Two primary configurations exist: flooded lead-acid (FLA) batteries requiring regular maintenance, and sealed lead-acid (SLA) batteries available as Absorbent Glass Mat (AGM) or Gel types.
Upfront costs for lead-acid batteries run 30-40% lower than LiFePO4 alternatives, typically $150-300 per kWh versus $400-750 per kWh for lithium. For budget-constrained municipalities deploying large-scale solar road marker networks, this initial savings creates appeal. Universal availability means lead-acid batteries can be sourced from local hardware stores and automotive suppliers, facilitating emergency replacements in rural areas.

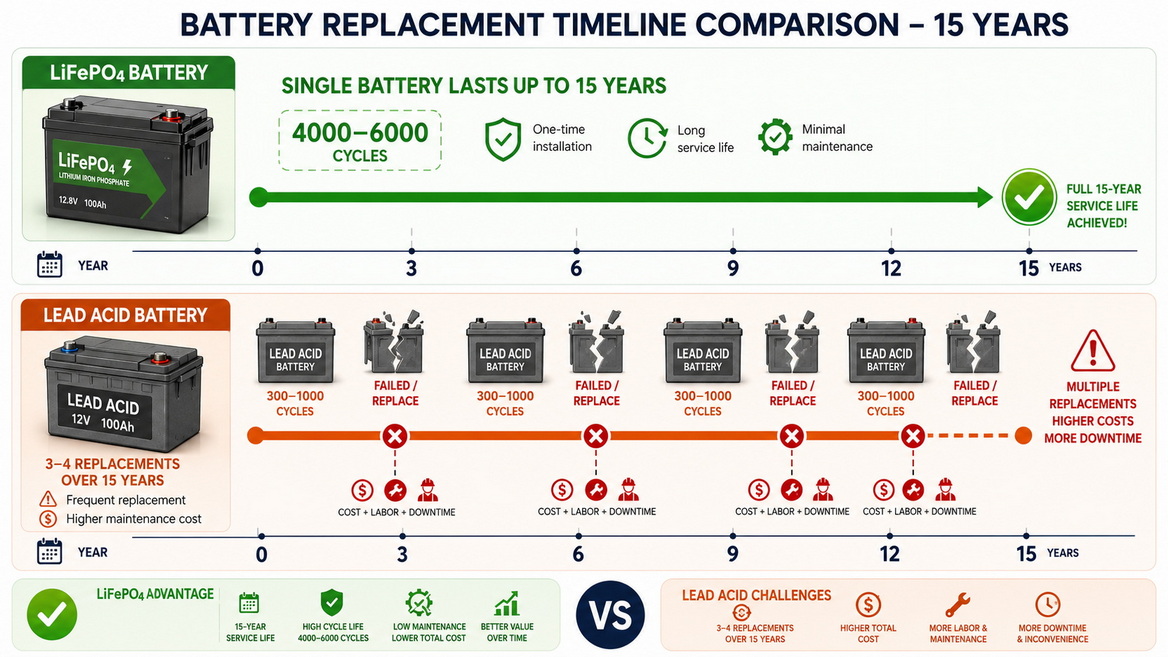

Short operational lifespan represents the primary drawback—lead-acid batteries last only 3-5 years in solar LED road sign applications compared to 10-15 years for lithium alternatives. Daily deep cycling required by solar traffic systems accelerates sulfation and plate degradation in lead-acid technology. Industry data shows typical lead-acid batteries deliver 300-1,000 charge cycles, with many units failing before reaching 500 cycles under harsh operating conditions.
Limited depth of discharge restricts usable capacity to approximately 50% to prevent irreversible damage. Discharging beyond this threshold rapidly degrades the battery through sulfation, where lead sulfate crystals permanently coat the plates and reduce capacity. For a 100Ah lead-acid battery, only 50Ah can be safely utilized, requiring larger, heavier batteries to match lithium performance.
Temperature sensitivity severely impacts performance in extreme climates. Lead-acid batteries lose up to 50% capacity at temperatures below 32°F (0°C) and experience accelerated degradation above 100°F (38°F). Solar road markers in desert regions or northern highways face premature battery failure unless protected with insulated enclosures, adding installation complexity and cost.
Regular maintenance burdens flooded lead-acid batteries, requiring water top-ups every 1-3 months, periodic equalization charging, and corrosion cleaning. For highway departments managing dispersed solar road marker installations, these tasks generate $50-80 annual maintenance costs per unit. Sealed AGM and Gel variants reduce but don't eliminate maintenance needs, still requiring voltage monitoring and periodic equalization.
Safety considerations include hydrogen gas production during charging, necessitating ventilated enclosures, and potential acid spill hazards from flooded designs. While established safety protocols exist for lead-acid technology, these requirements increase installation costs and complexity for solar road signs.

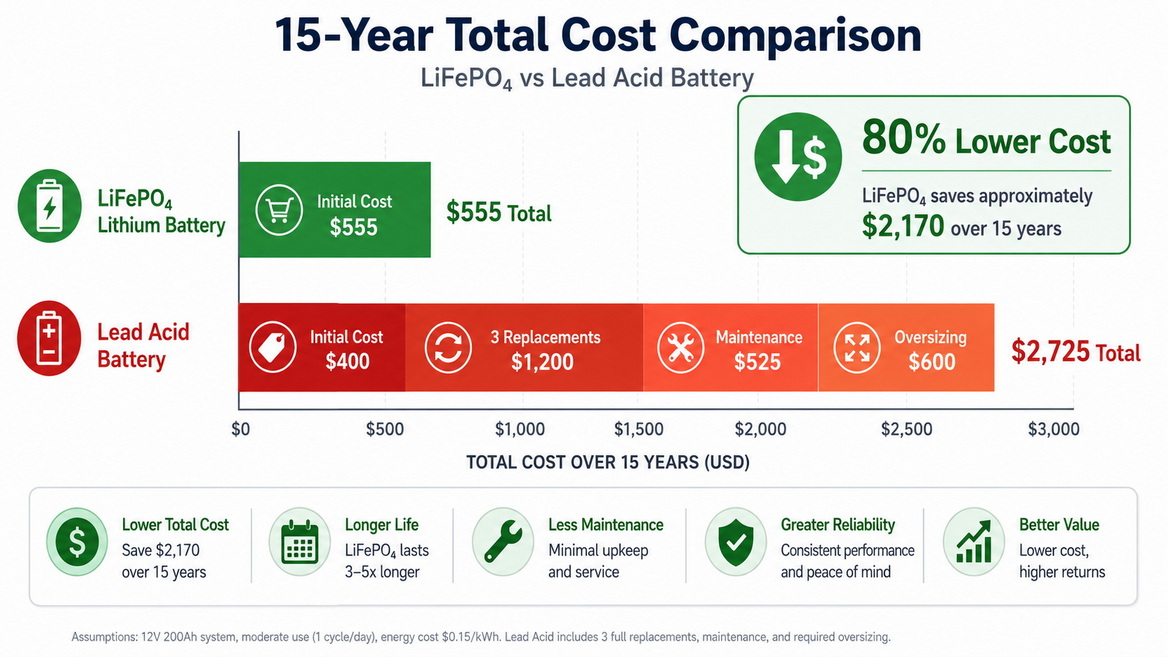

Initial purchase price tells only part of the financial story—total cost of ownership (TCO) over the battery's operational lifetime provides the true economic comparison. For a typical solar road marker installation requiring 100Ah battery capacity, let's examine the complete 15-year cost structure.
- Initial investment: $600 (100Ah LiFePO4 at $6/Ah)
- Replacement cycles: 0 (single battery lasts 15 years)
- Maintenance costs: $0 annually × 15 years = $0
- System efficiency gains: 15% smaller solar panel due to 95% charging efficiency = $45 savings
- Total 15-year cost: $555
- Initial investment: $350 (100Ah lead-acid at $3.50/Ah)
- Replacement cycles: 3 replacements at $350 each = $1,050
- Maintenance costs: $65 annually × 15 years = $975
- Larger battery requirement: 200Ah needed for 100Ah usable capacity = additional $350
- Total 15-year cost: $2,725
This analysis reveals that lithium batteries deliver 80% lower total costs despite their higher initial price. For a municipality deploying 1,000 solar road markers, lithium technology generates $2.17 million in savings over 15 years compared to lead-acid alternatives.
Riverside, California's solar street light conversion demonstrates lithium battery advantages in practice. In 2018, the city replaced lead-acid batteries with PowerDream LiFePO4 units in 500 solar street lights—a comparable application to solar road markers and LED traffic signs.
- Battery replacement rate: 100 units annually (20% failure rate)
- Annual maintenance expenditure: $25,000
- Operational failures: 15% of lights dimmed before dawn during winter months
- Total annual cost: $60,000 including replacements and labor
- Battery replacement rate: 0 units annually
- Annual maintenance expenditure: $0
- Operational failures: 0% (consistent dusk-to-dawn operation)
- Total annual cost: $0 ongoing
The Riverside Director of Public Works noted: *"Switching to LFP solar streetlights was one of the best decisions we made. We solved a major maintenance problem and saved money that can be used for other community needs"*. Over the 7 years since conversion, Riverside has saved $420,000 in battery replacement and maintenance costs while improving public safety through more reliable lighting.
Recommendation: LiFePO4 batteries exclusively. High-traffic highways demand maximum reliability with minimal maintenance access. The extended temperature range (-20°F to 140°F) proves essential for road markers exposed to extreme pavement temperatures and direct solar heating. The 10-15 year lifespan matches typical highway resurfacing cycles, allowing battery replacement to coincide with roadwork rather than requiring dedicated maintenance closures.
Recommendation: LiFePO4 batteries. Toll facilities operate 24/7 with high visibility requirements and limited maintenance windows. Lithium batteries' 95% charging efficiency ensures adequate power reserves during extended overcast periods common in many regions. The compact size (28 lbs vs. 60 lbs for 100Ah capacity) simplifies overhead sign installations and reduces structural loading.
Recommendation: Application-dependent. High-use commercial parking facilities with daily cycling benefit from lithium batteries' extended cycle life and zero maintenance. Budget-conscious applications with good climate control may consider sealed AGM lead-acid batteries as a lower-cost alternative, accepting the 3-5 year replacement cycle.
Recommendation: LiFePO4 batteries. Critical safety applications demand maximum reliability. The 80-100% depth of discharge ensures consistent illumination throughout the night even after cloudy days reduce solar charging. Zero maintenance requirements prove essential for signs at busy intersections where service access creates traffic disruption.
Recyclability differs significantly between technologies. Lead-acid batteries achieve nearly 100% recyclability with well-established infrastructure—approximately 99% of lead-acid batteries are recycled in developed markets. Lithium battery recycling technology continues maturing, currently recovering 50-70% of materials, though this percentage improves as recycling processes advance.
Carbon footprint analysis favors lithium batteries when evaluated over complete lifecycle. The longer lifespan (10-15 years vs. 3-5 years) means fewer manufacturing cycles and reduced transportation emissions from replacement units. Higher energy efficiency (95% vs. 80%) reduces the required solar panel size, cutting manufacturing impact. A complete lifecycle assessment shows lithium batteries generate approximately 40% lower carbon emissions per kWh of energy stored over their operational lifetime.
Toxic material content creates handling concerns with lead-acid technology. Lead and sulfuric acid pose environmental and health risks if improperly disposed. While lithium batteries contain fewer toxic substances, they still require proper end-of-life handling through certified recycling facilities.
When specifying batteries for solar LED road signs and traffic safety equipment, consider these critical factors:
Extreme temperature environments mandate LiFePO4 batteries. Applications in desert regions (Arizona, Nevada, Middle East) experiencing temperatures above 120°F will see lead-acid batteries fail within 2-3 years due to accelerated electrolyte evaporation and plate degradation. Similarly, cold climate installations (Alaska, northern Canada, Scandinavia) require lithium's low-temperature performance to maintain capacity below 0°F.
Moderate climates (50-90°F year-round) allow consideration of sealed AGM lead-acid batteries for budget-limited projects, though lithium remains the superior choice for lifecycle costs.
Daily deep cycling applications—including most solar road markers operating dusk-to-dawn—strongly favor lithium batteries. The 4,000-6,000 cycle life withstands daily discharge/charge patterns for 10+ years. Lead-acid batteries degrade rapidly under identical conditions, typically failing within 500-1,000 cycles (1.5-3 years).
Occasional use systems such as temporary construction zone signs or seasonal parking signs may tolerate lead-acid economics if usage remains under 50 cycles annually.
Remote or difficult-access locations demand zero-maintenance lithium batteries. Solar road markers on rural highways, mountain passes, or offshore facilities incur substantial service costs for each maintenance visit—eliminating these visits generates significant savings.
Easily accessible urban installations with regular municipal maintenance staff patrols can accommodate the higher maintenance requirements of lead-acid systems, though labor costs still accumulate.
Capital-limited projects face the temptation of lead-acid's lower initial costs. However, even tight budgets benefit from lithium when evaluated over complete project lifecycles. Consider financing options or phased deployment to access lithium technology's long-term savings.
Lifecycle-focused budgets recognize that spending $600 initially instead of $350 generates $2,170 in savings over 15 years—a 361% return on additional investment.
Solid-state lithium batteries represent the next evolution, promising 30-50% higher energy density, improved safety, and faster charging. Early commercial products may reach solar road marker applications by 2027-2028, enabling even smaller battery housings and extended operational reserve.
Advanced battery management systems incorporating AI algorithms now predict maintenance needs before failures occur, optimize charging patterns based on weather forecasts, and extend battery life through intelligent cycling. These systems integrate with smart city infrastructure, providing real-time status monitoring of distributed solar road marker networks.
Second-life EV batteries offer potential cost reductions. As electric vehicle adoption accelerates, automotive batteries reaching 70-80% capacity can be repurposed for stationary solar applications at significantly reduced costs. This trend may make lithium technology even more economically attractive for municipal solar road marker deployments starting in 2026-2027.
Enhanced recycling infrastructure continues developing, with major battery manufacturers establishing take-back programs and lithium recovery facilities. This improving circularity addresses environmental concerns and may reduce future battery costs through recovered material supply.
For most solar LED road sign applications, LiFePO4 batteries deliver superior performance, lower total costs, and improved reliability. The higher initial investment pays back within 3-4 years through eliminated maintenance and extended lifespan. At Shenzhen Xingsheng Traffic Facilities Co., Ltd., our OEM and ODM solar road marker solutions now standardize on lithium battery technology based on extensive field testing and client feedback across diverse climates and applications.
Lead-acid batteries remain viable only in specific scenarios: temporary installations lasting under 2 years, easily accessible locations with dedicated maintenance staff, or extreme budget constraints preventing any financing options. Even in these cases, the short-term savings often prove illusory when accounting for replacement frequency and labor costs.
The traffic safety industry's rapid adoption of lithium technology reflects clear economic and performance advantages. As battery costs continue declining and recycling infrastructure matures, the case for LiFePO4 in solar road markers will only strengthen. For municipalities, contractors, and facility managers specifying new solar traffic safety systems in 2026, lithium batteries represent the optimal choice for reliability, economy, and sustainability.
Contact us to get more information!
Lithium iron phosphate (LiFePO4) batteries last 10-15 years in solar road marker applications, delivering 4,000-6,000 charge cycles. Lead-acid batteries typically last only 3-5 years with 300-1,000 cycles under the same daily deep-discharge conditions. This means lithium batteries outlast lead-acid by 3-4 times, requiring only one replacement versus three to four replacements over a 15-year period.
Yes, lithium batteries deliver substantially lower total cost of ownership despite higher purchase prices. A complete 15-year cost analysis shows lithium batteries cost approximately $555 total versus $2,725 for lead-acid when accounting for replacements, maintenance, and system efficiency. The $600 initial investment instead of $350 generates $2,170 in savings—a 361% return—making lithium the economically superior choice for most applications.
Lead-acid batteries perform poorly in temperature extremes common to road surface applications. They lose up to 50% capacity below 32°F (0°F) and degrade rapidly above 100°F. LiFePO4 batteries maintain over 90% capacity from -20°F to 140°F, making them essential for desert highways, northern climates, and direct pavement installations experiencing extreme temperature swings.
Lithium batteries require zero regular maintenance—no water top-ups, no equalization charging, and no corrosion cleaning. Lead-acid batteries need water additions every 1-3 months (flooded types), periodic voltage monitoring, and equalization charging, generating $50-80 annual maintenance costs per unit. For remote highway installations or large solar road marker networks, eliminating maintenance visits delivers substantial labor savings.
Lithium batteries' 95% charging efficiency versus lead-acid's 75-85% efficiency allows 10-15% smaller solar panels for identical performance. A solar road marker requiring 500 watt-hours daily can use a smaller panel with lithium batteries because less energy is lost during charging—475Wh stored versus 400Wh with lead-acid. This reduces system costs, weight, and wind loading on sign structures while improving reliability during cloudy periods.
