As a solar traffic light manufacturer working daily with city engineers, contractors, and distributors, I get one question more than any other: "How big should my traffic lights be, and how high should I mount them to keep roads safe and compliant?" In this guide, I'll walk you through real-world traffic light dimensions, how solar traffic signal sizing differs from conventional systems, and the practical engineering decisions we make for highways, toll stations, streets, and parking lots.
In traffic engineering, traffic light dimensions usually refer to two things: the lens (signal module) diameter and the overall size and height of the signal head and pole. These dimensions directly affect visibility distance, driver reaction time, and whether your installation will pass local inspections.
Typical points we look at on every project are:
- Lens diameter (8 inch vs 12 inch modules)
- Housing height and width (for 2, 3, or 4 aspects)
- Mounting height from the road surface
- Pole and arm dimensions, especially on highways and toll plazas
From a safety point of view, bigger is not always better. The goal is to match signal size to approach speed, viewing distance, and background clutter so that drivers can instantly read the signal without confusion.
Most markets still follow a similar sizing logic, even though detailed standards differ by country. When we design solar traffic lights for export, we normally start from these benchmarks and adjust to the buyer's local spec.

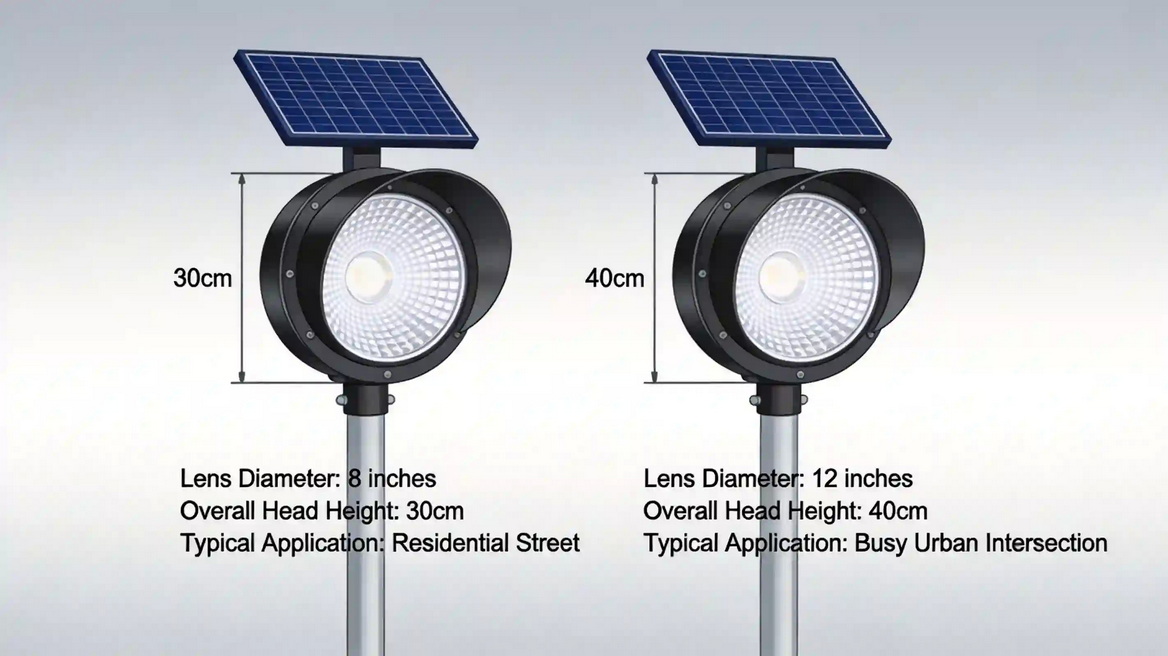

- 8 inch (200 mm) lenses – common on urban streets, secondary roads, and pedestrian crossings where approach speeds are lower.
- 12 inch (300 mm) lenses – used on high-speed highways, major intersections, and complex junctions where visibility must be maximized.
According to industry data, a typical 3‑lens traffic signal with 8‑inch lenses is around 30 inches (about 76 cm) tall, while a 12‑inch 3‑section head is often around 40–42 inches (about 100–106 cm) tall.
- Standard vehicle heads in North America and many other regions use 8 or 12 inch lenses, with 3 or 4 aspects depending on the phase design.
- Pedestrian signals are usually smaller; for example, a typical pedestrian head can be around 18 inches wide by 16 inches tall, with symbol displays sized for short viewing distances at crosswalks.
These numbers are not arbitrary. They originate from visibility studies, MUTCD guidance, and regional traffic safety regulations that connect module size with approach speed and lane width.

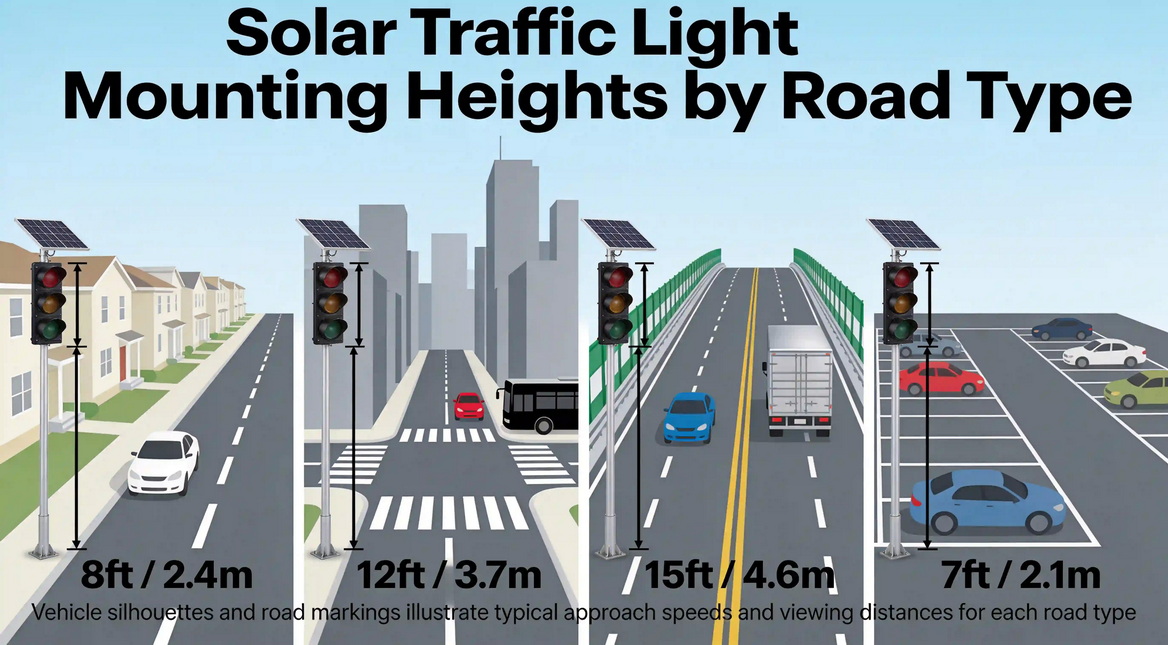

From a manufacturer's standpoint, mounting height is as critical as lens diameter. If we get the height wrong, even the brightest LED and best solar panel cannot guarantee safety.
Industry guidance and field experience support the following ranges:
- Pedestrian areas and low‑speed zones: about 7–10 ft (2.1–3 m) so that signals stay at pedestrian or low‑vehicle eye level.
- Rural roads: around 10–15 ft (3–4.5 m) where traffic volume is lower but long-distance visibility is still required.
- Urban roads and main city streets: typically 15–25 ft (4.5–7.5 m) to be visible above parked vehicles, buses, and street clutter.
- Highways and interstates: poles and gantries for mainline signals can reach 25–30 ft (7.5–9 m) or more, similar to high‑mast solar street lights.
For solar traffic lights, we often align the signal head height with local standards, then optimize the solar panel mounting angle and elevation on the same pole or a dedicated bracket. This keeps the signal compliant while ensuring the panel gets maximum sun exposure.

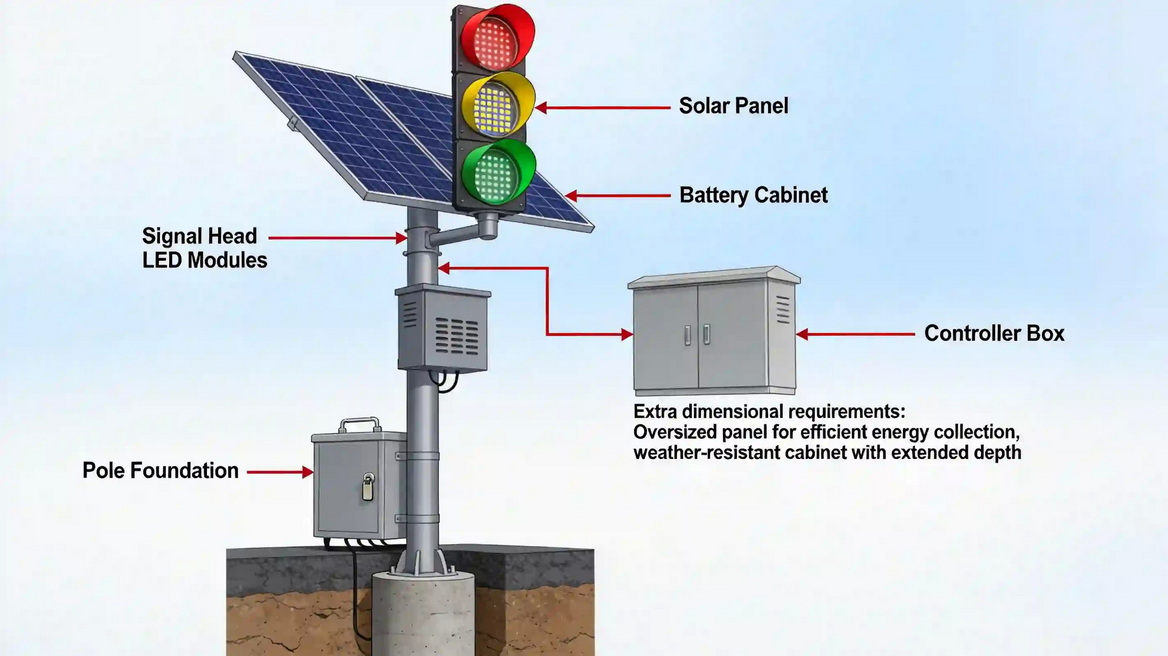

Solar traffic lights follow the same basic dimensional logic as conventional grid‑powered signals, but our design decisions must also consider solar panel size, battery volume, and controller enclosure space.
When we customize OEM or ODM solar traffic lights, we routinely adjust:
- Panel size and tilt: The panel must be large enough to support required autonomy days, and tilted close to the site latitude angle to maximize annual yield.
- Battery cabinet dimensions: Battery and controller boxes must fit on the pole without obstructing sight lines or maintenance access.
- Pole strength and cross‑section: Solar panels and cabinets add wind load and weight; pole wall thickness and foundation dimensions must reflect this.
From the end user's perspective, these extra components are invisible in daily driving, but they strongly influence total system reliability and maintenance cycles.
In our projects across highways, toll stations, and industrial parks, the 8‑inch vs 12‑inch decision usually comes down to three questions: speed, viewing distance, and background clutter.
- The road is urban or residential with lower design speeds.
- There is a short approach distance, such as at parking lots, internal plant roads, or short toll lanes.
- The background is relatively clean without heavy advertising or LED screens competing for attention.
- You are dealing with high‑speed highways or expressways where long viewing distances are critical.
- The intersection is complex, with multiple turn lanes, bus lanes, or mixed traffic.
- The environment includes bright commercial lighting or dense signage, which makes smaller aspects harder to distinguish.
As a manufacturer, we often recommend 12‑inch solar lenses on any approach above a typical urban speed, even when local code technically allows 8‑inch modules, because the marginal cost increase is small compared with the safety benefit.
Based on both industry guidance and our field projects, a successful solar traffic light installation requires more than just correct dimensions. It demands careful site selection, panel orientation, wiring, and maintenance planning.

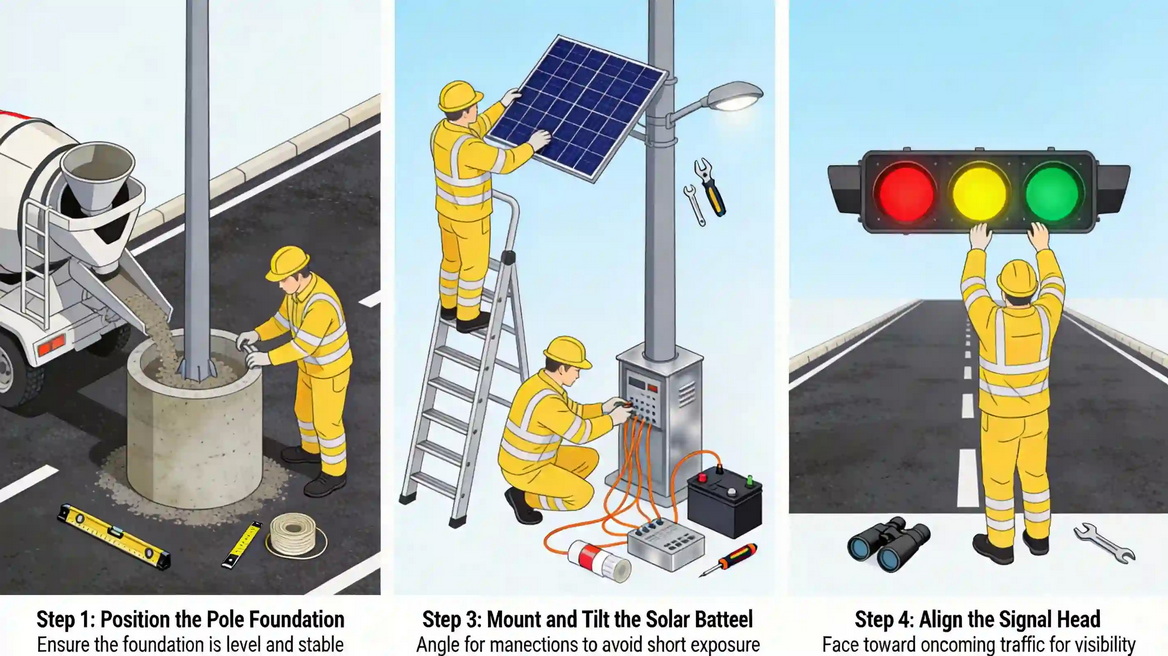

- Install poles in open areas with minimal shading from buildings, trees, or billboards.
- If shading is unavoidable during part of the day, we often oversize panels or batteries to maintain performance.
- Align panels toward true south in the northern hemisphere or true north in the southern hemisphere, adjusting for local conditions.
- Set the tilt angle close to the site latitude; for example, around 40 degrees in a location near 40° latitude to maximize annual energy capture.
- Seasonal adjustment can further improve yield: some projects lower the tilt by about 15 degrees in summer and increase by about 15 degrees in winter to follow the sun's path more closely.
- Fix solar panels firmly to their brackets; loose hardware is one of the most common causes of long‑term damage.
- Route and secure cables using UV‑resistant cable ties, avoiding sharp bends and potential abrasion points.
- Ensure correct polarity when connecting solar panel outputs and battery terminals, and properly tin or protect exposed copper to prevent oxidation.
- Leave sufficient space around controller and battery enclosures for fast inspection and replacement.
- Use standardized modules across a site (for example, the same 12‑inch LED modules on all main‑road signals) so technicians can swap parts quickly and reduce downtime.
For OEM and ODM customers, especially traffic integrators and brand owners, dimensional flexibility is often a competitive advantage.
Typical customization options include:
- Custom housing sizes: We can design slimmer or deeper housings to match specific city aesthetics or to integrate larger LED drivers and communication modules.
- Special pole heights: Toll stations, port entries, or airport access roads may require non‑standard mounting heights to fit canopies or structural beams.
- Branded signal faces and visors: For projects that want a unique identity, we adapt visor shape, backboard dimensions, and housing color, while keeping core lens sizes compliant.
In these custom projects, our role as a manufacturer is to balance branding and aesthetics with optical performance, structural safety, and regional regulations.

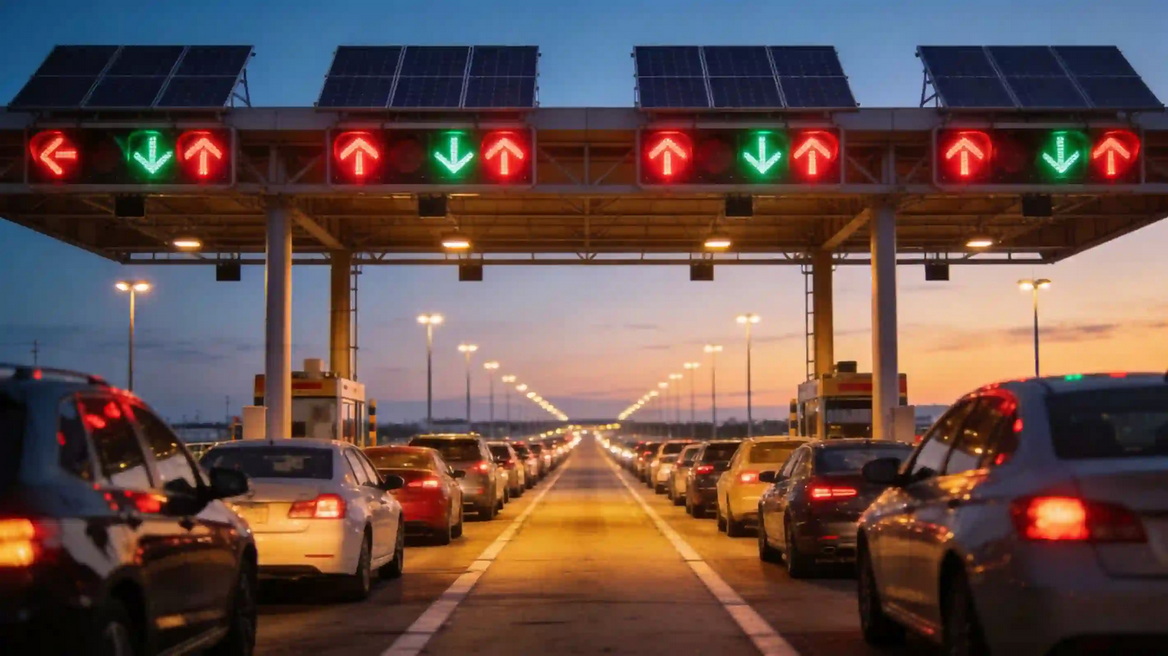

To show how all these factors come together, here is a simplified example based on highway toll projects we support.
For a multi‑lane toll plaza on a high‑speed route, we typically recommend:
- Signal type: 12‑inch red/green arrows or lane‑control indicators on each lane.
- Mounting height: Around 20–25 ft (6–7.5 m) above the pavement, aligned with signage and canopy structures so drivers can read them from a long distance at highway speeds.
- Solar configuration: High‑efficiency panels, sized for at least 3–5 days of autonomy, mounted above or beside the lane signage to avoid shading from the toll canopy.
By taking a dimensions‑first approach—matching lens size and height to lane layout and approach speed—we help operators cut installation changes later and maintain consistent driver expectations across all toll lanes.
The table below summarizes practical dimension choices we often use for solar traffic light projects, based on typical road types and applications.
These figures should always be checked against local standards, but they provide a realistic starting point when you're planning a solar traffic safety upgrade.
If you are planning a new solar traffic signal project or upgrading from traditional mains‑powered units, use this quick expert checklist:
1. Confirm local standards and codes for lens diameter and mounting height on each road category.
2. Map approach speeds and viewing distances so you know where 8‑inch modules are sufficient and where 12‑inch is required.
3. Check sun exposure at each pole location and adjust panel size, tilt, and mounting height accordingly.
4. Standardize module sizes and housings across the project to simplify installation and spare parts management.
5. Plan maintenance access to panels, controllers, and batteries without blocking traffic lanes.
By following these steps, you move from a purely theoretical design to a practical, maintainable solar traffic safety system that performs reliably in the field.
If you are designing solar traffic lights for streets, highways, toll stations, or parking lots, the next step is to translate these guidelines into a project‑specific layout. Our engineering team can review your drawings, traffic data, and local standards, then recommend:
- Optimal lens sizes and head dimensions for each intersection or lane.
- Mounting heights and pole designs that balance visibility, aesthetics, and structural safety.
- Customized OEM/ODM solar configurations including panel size, battery capacity, and integrated control options.
Share your road cross‑sections, traffic volumes, and target regulations, and we will prepare a clear dimensional proposal that you can take directly into your design and procurement process.
Contact us to get more information!
Most modern vehicle traffic signals use lenses that are either 8 inches (200 mm) or 12 inches (300 mm) in diameter, depending on road speed and visibility requirements.
On urban roads, traffic lights are often mounted between 15 and 25 ft (4.5–7.5 m), while highways can require heights up to around 25–30 ft (7.5–9 m) for long‑distance visibility.
The signal head dimensions for solar traffic lights usually match conventional standards, but the overall system includes additional panel and battery components that influence pole and bracket design.
A practical rule is to tilt the panel close to the site's latitude and adjust seasonally by around ±15 degrees if you need to maximize performance during specific seasons.
Use 12‑inch lenses on high‑speed roads, complex intersections, and visually noisy environments, and reserve 8‑inch lenses for low‑speed streets, internal roads, and pedestrian‑focused zones.
