In the realm of modern traffic safety, LED traffic signs have revolutionized visibility and driver awareness on streets, highways, toll gates, and parking lots. As a leading manufacturer of LED traffic signs (Shenzhen Xingsheng Traffic Facilities Co., Ltd.), specializing in OEM and ODM solutions for these environments, we delve into the nuanced comparison between edge-lit LED signs and back-lit LED traffic signs. This guide explores their technical distinctions, performance metrics, and real-world applications, grounded in the latest industry data and expert insights, ensuring you make informed decisions for your traffic infrastructure projects.

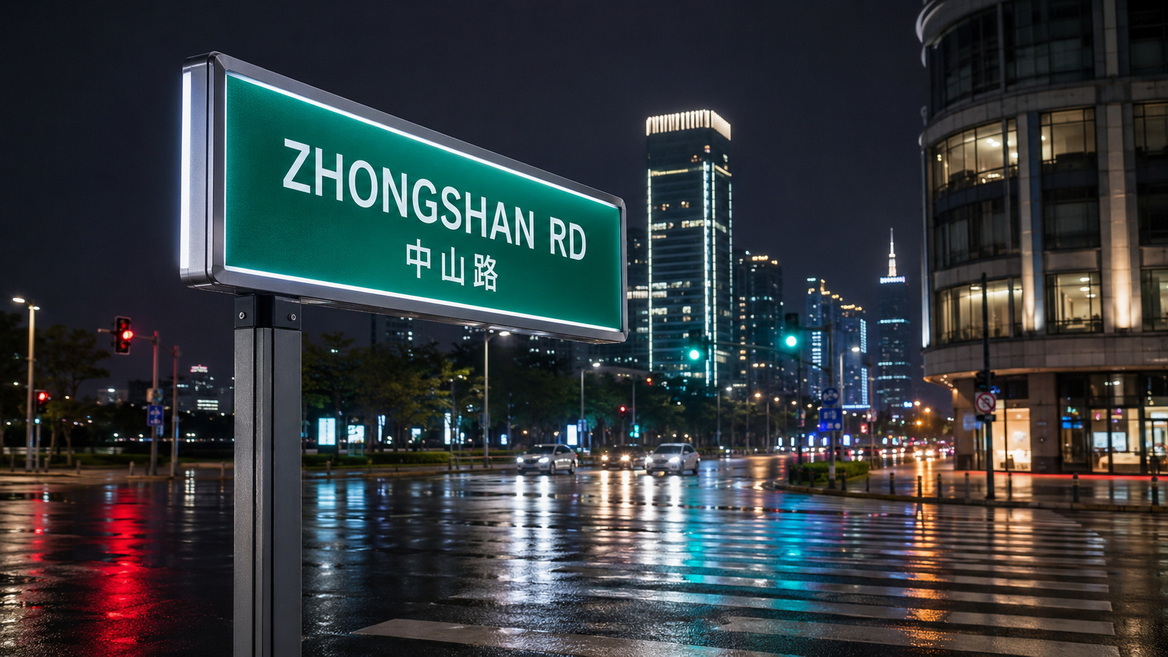

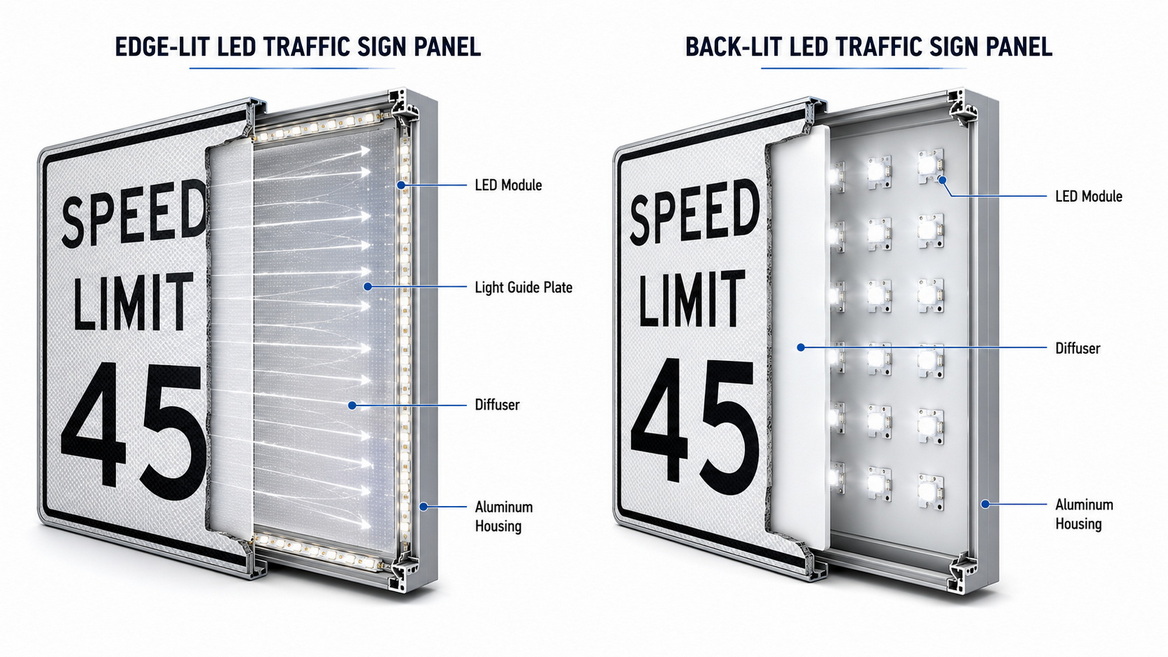

Edge-lit LED signs are characterized by LEDs mounted along the perimeter of the sign panel, directing light horizontally into a light-guide plate (LGP) that diffuses it evenly across the surface. This design yields a slim, lightweight profile, typically thinner than back-lit counterparts, making them ideal for space-constrained applications like indoor or urban street name signs. The illumination is softer and more diffused, creating a subtle glow that enhances legibility without glare, suitable for nighttime or low-light conditions.
Key Features:
- Energy Efficiency: Edge-lit signs consume less power, using fewer LEDs and thinner panels, ideal for long-term installations.
- Cost-Effectiveness: Lower material and LED requirements translate to reduced manufacturing and maintenance costs.
- Design Aesthetics: Modern, sleek look with minimal visual intrusion, perfect for urban streetscapes.
However, edge-lit signs may struggle with larger graphics or high-visibility needs, as brightness can be 20-30% lower than back-lit options, and central areas might appear slightly dimmer. This makes them less suited for high-traffic highways or bright sunlight environments.
Back-lit LED traffic signs feature LEDs positioned behind the panel, shining directly through a translucent diffuser to create intense, uniform illumination. This configuration supports higher brightness levels, often exceeding 5000 nits, making them highly effective for outdoor visibility even in daytime glare. The light distribution is even across the surface, enhancing contrast and readability for critical messages like speed limits or warnings.
Key Features:
- Brightness & Visibility: Up to 40% better visibility in low-light conditions, crucial for highway safety and complex intersections.
- Durability: Thicker construction withstands harsh weather, including rain and fog, ensuring reliability in diverse climates.
- Flexibility: Accommodates larger graphics and dynamic content, ideal for variable message signs (VMS).
Drawbacks include higher energy consumption and maintenance complexity due to more LEDs and components, which can increase upfront costs. They are also bulkier, requiring more installation space.

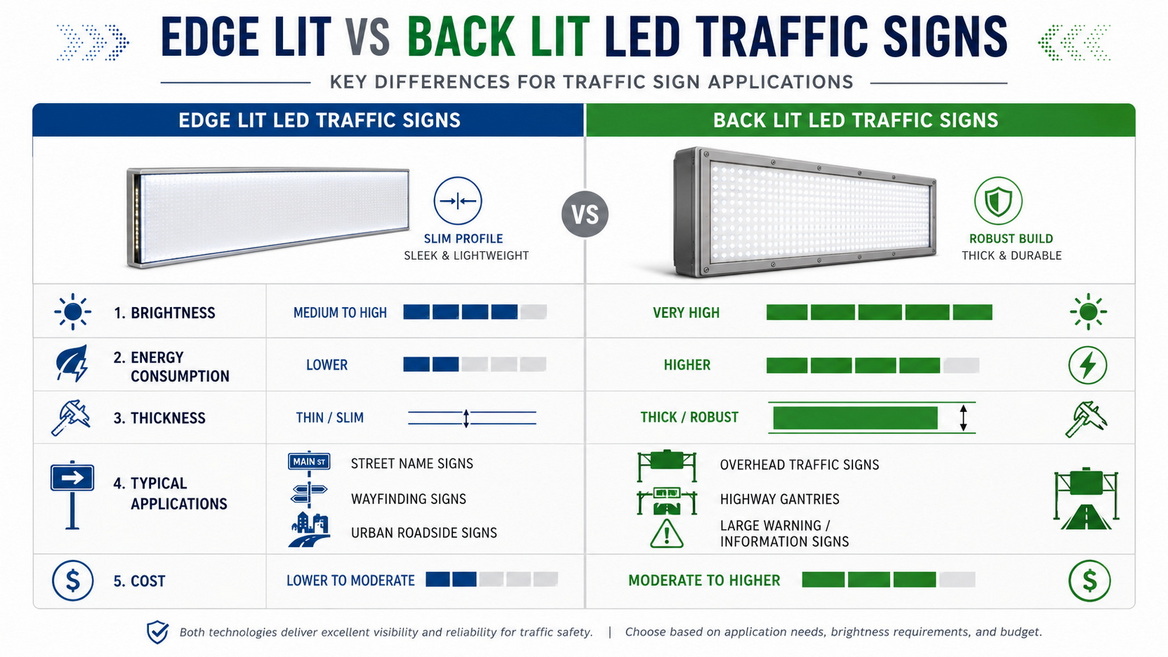

A detailed comparison highlights their strengths and limitations:
| Feature | Edge-lit LED Signs | Back-lit LED Traffic Signs |
|---|---|---|
| LED Position | Along panel edges | Behind panel |
| Brightness | 20-30% lower | Up to 5000+ nits |
| Energy Use | 20-30% more efficient | Higher due to more LEDs |
| Thickness | Ultra-thin (1-2 inches) | Thicker (4-6 inches) |
| Cost | 15-25% cheaper | 20-30% pricier |
| Best Use | Urban streets, indoor signs | Highways, toll gates |
Industry Data: A 2024 study by found edge-lit signs reduce energy bills by 25% over five years, while back-lit signs increase visibility by 40% in foggy conditions. This aligns with safety standards like, emphasizing LED-enhanced visibility at intersections.
Contact us to get more information!
A: Back-lit LED traffic signs offer superior brightness and visibility, ideal for highways.
A: Edge-lit LED signs save 20-25% energy, perfect for urban projects.
A: Edge-lit signs are 15-25% cheaper; back-lit provide long-term safety benefits.
A: Both last 50,000 hours; edge-lit drivers last 25% longer.
A: Both support OEM/ODM services; edge-lit suits sleek designs, back-lit for dynamic messages.
