Improving Pedestrian Safety with LED Traffic Signs and Crossing Lights: An Expert Manufacturer's Perspective

When you stand at a busy crosswalk and watch drivers hesitate, brake late, or fail to notice pedestrians, you understand why LED traffic signs and modern pedestrian crossing lights are no longer "nice to have" but essential safety infrastructure. As a manufacturer working daily with city engineers, highway authorities, and parking operators, I have seen how the right LED‑enhanced solutions can transform dangerous crossings into predictable, forgiving environments for everyone on the road. [carmanah]

Why Pedestrian Crossing Safety Must Change Now [luminokrom]

Globally, pedestrian fatalities remain unacceptably high, and a disproportionate number of these crashes happen at or near uncontrolled or poorly lit crossings. In the United States alone, thousands of pedestrians are struck and killed each year, with many incidents occurring at night or in low‑visibility conditions. [carmanah]

Several patterns appear repeatedly when we speak with traffic engineers and review crash data:

- Excessive approach speed at crosswalks and intersections. [tapconet]

- Poor visibility of pedestrians at night, during rain, and in glare conditions. [luminokrom]

- Drivers misjudging crossing distance and stopping distance.

- Inconsistent yielding behavior at unsignalized crosswalks. [carmanah]

From my experience working with municipalities, the most effective safety projects do not just "add more light." They rethink visibility, conspicuity, and driver attention using integrated LED traffic signs, pedestrian crossing lights, and smarter layouts. [carmanah]

The Role of LED Traffic Signs in Modern Pedestrian Crossings [tac-atc]

How LED‑Enhanced Signs Change Driver Behavior

Traditional reflective signs depend entirely on vehicle headlights and driver attention. In complex urban environments with distraction and clutter, passive visibility is often not enough. LED‑enhanced signs and beacons introduce: [safetydecals]

- Active conspicuity: High‑intensity, flashing LEDs cut through visual noise and draw the eye to the sign face. [safetydecals]

- Earlier detection: Drivers see and recognize conflicts sooner, giving them more time to slow down and yield. [carmanah]

- Improved compliance: Studies have reported crash reductions of up to around 40–50% at certain locations when LED‑embedded stop signs are installed, along with significant reductions in rolling stops and non‑compliance. [safetydecals]

In one widely cited example, LED‑enhanced stop signs in Minnesota were associated with an approximate 41.5% reduction in right‑angle crashes, while similar deployments in Texas and Virginia showed sizable drops in incomplete stops and red‑light violations. Though every site is unique, we consistently hear from clients that LED traffic signs make "problem intersections" more predictable almost immediately after installation. [carmanah]

Why LEDs Are Ideal for Crosswalks and School Zones

Compared with conventional signs, LED‑embedded crosswalk and pedestrian warning signs offer several advantages that are especially important at crossings: [tapconet]

- Focused attention on vulnerable road users at conflict points. [luminokrom]

- Strong performance in darkness, rain, and fog when pedestrian silhouettes are hardest to see. [luminokrom]

- Compatibility with push‑button or sensor‑based activation, so lights flash when pedestrians are present. [tapconet]

- Lower overall energy use and long life when paired with solar power and high‑efficiency components. [carmanah]

For school zones, parking facility exits, and mid‑block crossings on high‑speed roads, this combination of visibility, activation, and energy efficiency explains why LED traffic signs have become a standard part of many agencies' safety toolkits. [carmanah]

Key Technologies: From RRFBs to LED‑Embedded Signs [tapconet]

Rectangular Rapid‑Flashing Beacons (RRFBs)

Rectangular rapid‑flashing beacons are highly conspicuous, pedestrian‑activated lights placed at crosswalk approaches. Based on field experience and published guidance, their strengths include: [carmanah]

- Rapid, irregular flash pattern that stands out from background lighting.

- Strong association in drivers' minds between "flashing" and "pedestrian in the crosswalk."

- High yielding rates compared with basic static signs at similar sites. [tapconet]

As a manufacturer, we often recommend RRFBs combined with LED traffic signs for uncontrolled crossings on multilane roads, where approach speeds and stopping distances are critical. [carmanah]

LED‑Embedded Static Signs (LETS)

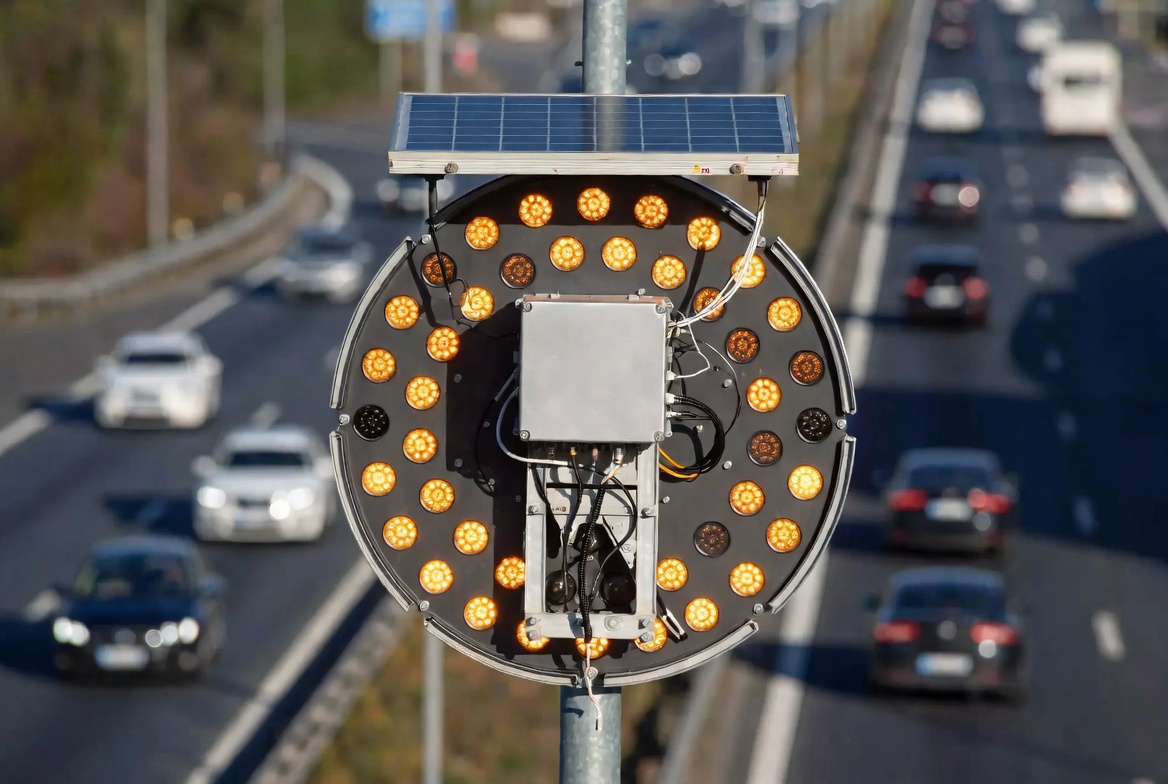

LED‑embedded signs integrate LEDs directly into the border or legend of the sign. Recommended practices emphasize: [tac-atc]

- Consistent LED viewing angles and controlled luminous intensity to avoid glare. [tac-atc]

- Adequate spacing and arrangement so the sign is readable both day and night. [tac-atc]

- Compliance with national and regional standards for size, reflectivity, and placement. [tac-atc]

These border‑enhanced signs are widely used for STOP, YIELD, pedestrian warnings, school zones, and sharp curve warnings, especially where previous conventional signs failed to get drivers' attention. [safetydecals]

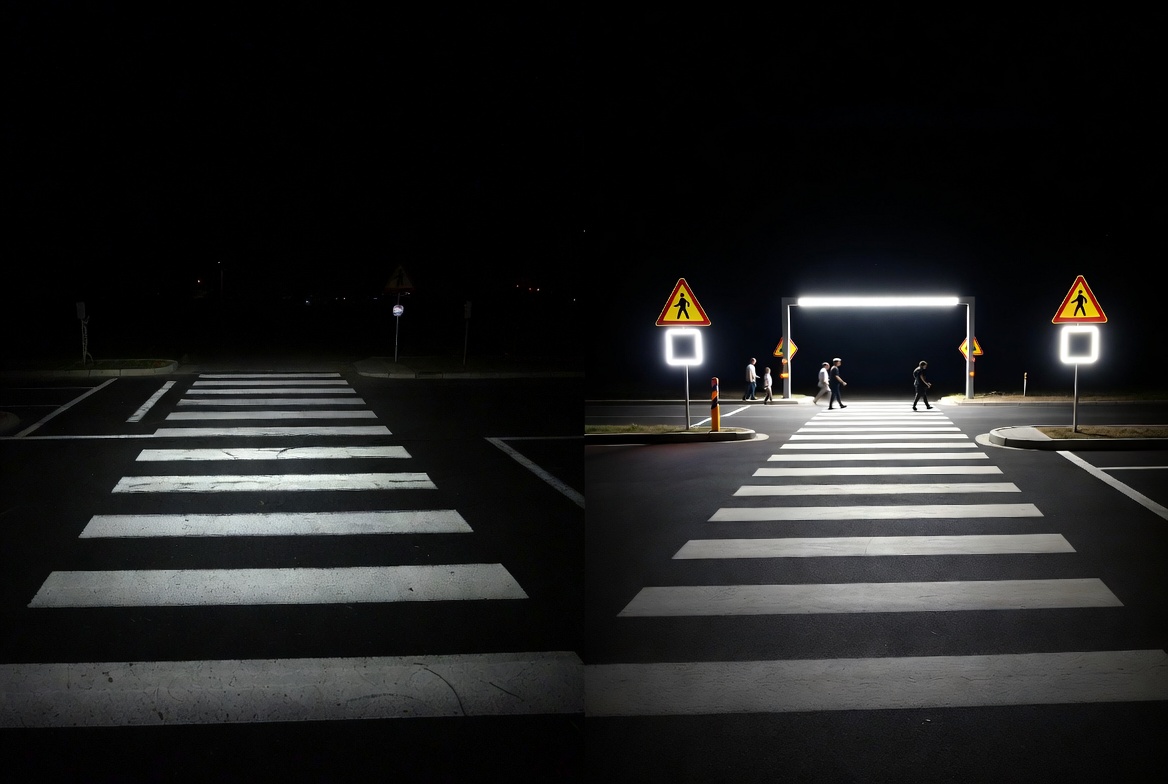

Illuminated Crosswalk Markings and Flood Lighting

Recent innovations include luminescent or illuminated crosswalk markings that increase pavement visibility, often in combination with LED signs. Research and early deployments suggest: [luminokrom]

- Improved visibility of the entire crossing path, not just the sign. [luminokrom]

- Better driver awareness and earlier braking behavior at night.

- Potential reductions in pedestrian crashes when part of a coordinated safety strategy. [luminokrom]

For two‑lane crossings, pairing LED‑enhanced signs or RRFBs with a dedicated crosswalk illuminator can ensure the whole crossing envelope is lit, from the approach to the center of the crosswalk. [tapconet]

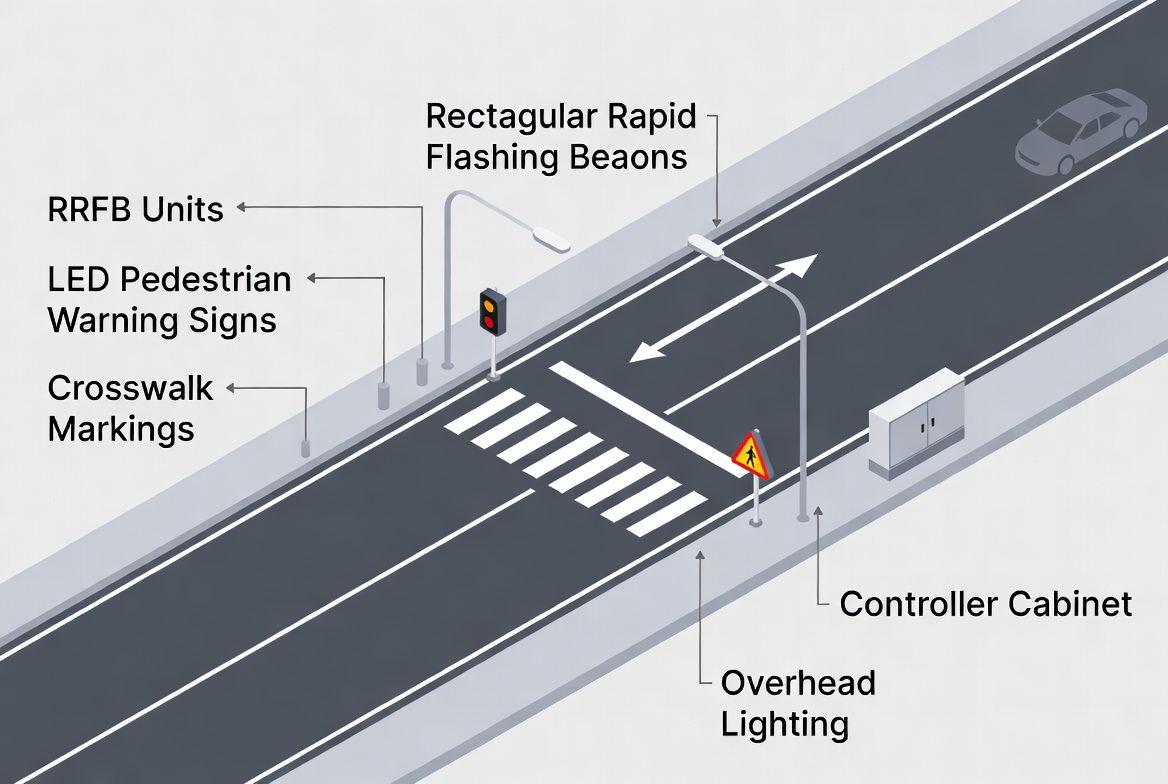

A Practical, Step‑by‑Step Framework for Safer Crossings [tac-atc]

Drawing on FHWA guidance, industry research, and our own manufacturing experience, we recommend a structured process before choosing any specific LED solution. [carmanah]

Step 1: Define Safety Problems and Goals

- Review crash data, near‑miss reports, and community complaints. [carmanah]

- Identify locations with recurring pedestrian injuries or high vehicle speeds. [carmanah]

- Set measurable goals, such as "increase yielding by 30% within 12 months" or "reduce nighttime crashes at this crossing by 50%." [carmanah]

Step 2: Analyze Site Conditions

- Roadway classification, lane count, and posted speed. [carmanah]

- Existing lighting, sign placement, and sight distances. [tac-atc]

- Pedestrian volumes, demographics (children, older adults), and activity patterns.

This analysis helps determine whether LED traffic signs, RRFBs, overhead beacons, or a combination will provide the greatest safety benefit. [tapconet]

Step 3: Select Appropriate LED Solutions

Depending on site risk and constraints, agencies typically consider: [carmanah]

1. LED‑enhanced static signs for problem STOP or YIELD locations, high‑risk curves, and known "run‑through" intersections. [carmanah]

2. RRFB systems for mid‑block pedestrian crossings on multilane or higher‑speed roads. [tapconet]

3. Integrated illuminators and luminescent crosswalk markings for poor lighting conditions or high nighttime volumes. [luminokrom]

4. Solar‑powered LED signs where grid power is unavailable or trenching costs are prohibitive. [carmanah]

As a manufacturer offering OEM and ODM services, we often customize optic patterns, LED layouts, and power systems to meet local regulations and specific client criteria.

Step 4: Implement, Monitor, and Optimize

- Install signs according to recommended heights, lateral offsets, and approach distances. [tac-atc]

- Calibrate flash intensity and patterns to ensure visibility without discomfort glare. [tac-atc]

- Monitor yielding behavior, speeds, and crash data over time, then fine‑tune as needed. [carmanah]

The most successful projects treat LED traffic signs as part of a continuous improvement cycle, not a one‑time fix. [carmanah]

Real‑World Applications: Streets, Highways, Toll Plazas, and Parking Facilities [safetydecals]

As Shenzhen Xingsheng Traffic Facilities Co., Ltd., we work across very different environments that share a single objective: move vehicles efficiently while protecting people.

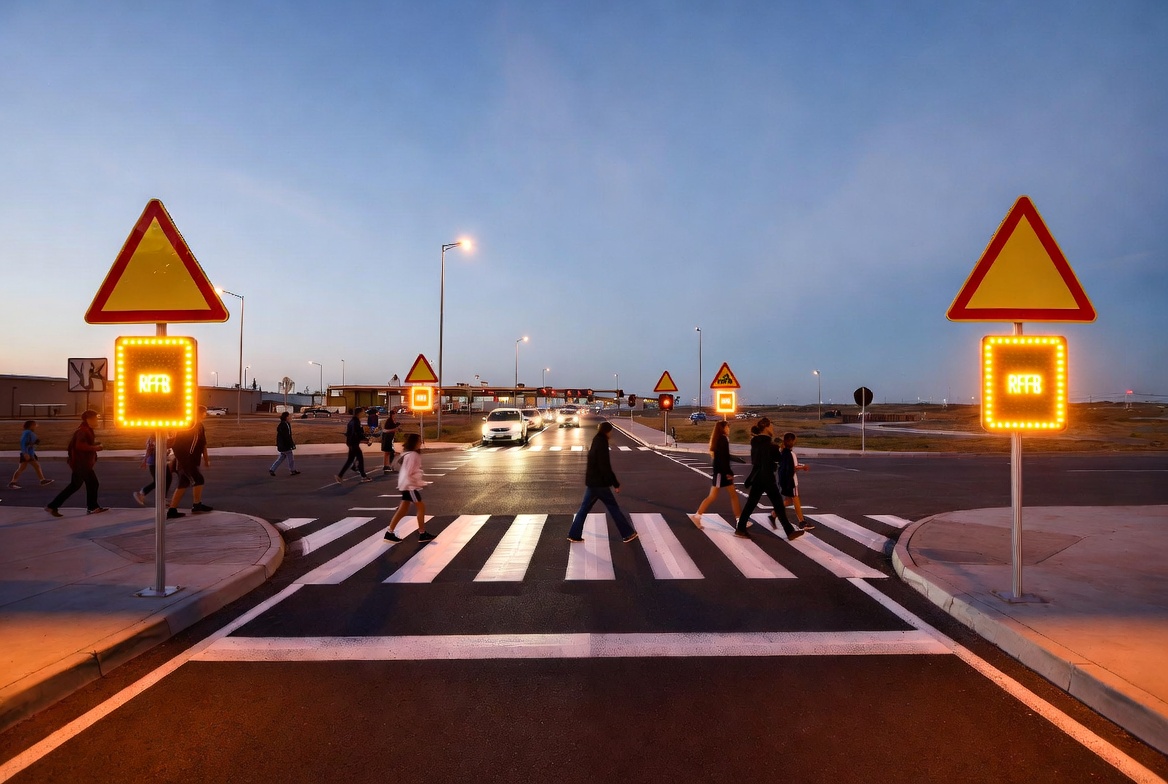

City Streets and School Zones

On urban streets and around schools, key priorities include: [carmanah]

- Slowing vehicles at crosswalks and mid‑block crossings.

- Protecting children and older pedestrians with predictable, visible infrastructure. [carmanah]

- Managing complex visual environments with shops, billboards, and mixed traffic.

Here, LED‑enhanced pedestrian warning signs, RRFBs, and school zone flashers are especially effective, particularly when combined with speed feedback signs and clear pavement markings. [tapconet]

Highways and Interchanges

On higher‑speed roads, we focus on: [tac-atc]

- Exit and merge areas where pedestrian access is unexpected but still occurs.

- Emergency pull‑outs, roadside facilities, or park‑and‑ride lots.

- Sharp curves and decision points where visibility and reaction time are critical. [carmanah]

LED‑embedded warning signs, oversized LED‑enhanced chevrons, and high‑intensity crosswalk systems at designated crossing points can significantly improve driver awareness. [tac-atc]

Toll Plazas and Parking Areas

For toll plazas and large parking facilities, agencies typically worry about: [safetydecals]

- Vehicle‑pedestrian conflicts near payment booths and building entrances.

- Confusing lane assignments and last‑minute maneuvers.

- Nighttime visibility in areas with heavy shadow and headlight glare.

LED lane control signs, dynamic arrows/X indicators, and LED‑enhanced pedestrian crossings guide drivers intuitively, reducing both delays and conflict points. [safetydecals]

Design Considerations for Reliable, Comfortable LED Traffic Signs [luminokrom]

Visibility Without Glare

Following recommended practices, we always aim for signs that are impossible to miss, but never uncomfortable. Key parameters include: [carmanah]

- LED intensity ranges that maintain legibility without causing disability glare. [tac-atc]

- Uniform viewing angles so drivers see consistent brightness on approach. [tac-atc]

- Automatic dimming for night‑time operation.

Durability and Power

Because many installations are in harsh outdoor environments, we design for: [luminokrom]

- Weather‑resistant housings, gaskets, and coatings.

- Impact‑resistant lenses and robust LED modules.

- High‑efficiency power systems, often solar, to minimize operating costs. [carmanah]

Compliance with Standards

We manufacture LED traffic signs in line with relevant national and regional standards on: [tac-atc]

- Sign size, color, and retroreflective sheeting.

- Flash patterns and duty cycles.

- Installation hardware and mounting heights.

This compliance‑driven approach helps agencies secure approvals faster and ensures safe, predictable performance for road users. [tac-atc]

OEM / ODM Opportunities: Tailoring LED Traffic Signs to Your Network

Many agencies, integrators, and distributors come to us with highly specific requirements, such as regional languages, unique warning legends, or integration with existing ITS platforms. Through OEM and ODM services, we can support:

- Custom sign faces, legends, and bilingual layouts compliant with local regulations.

- Tailored LED ring patterns, flash sequences, and dimming curves.

- Integration with sensors, controllers, or central management software.

For example, a client managing a multi‑level parking structure may need LED lane control signs, pedestrian crossing lights, and speed feedback displays that all share a unified visual language and communication protocol. Our engineering team collaborates from design through testing to deliver a cohesive, field‑ready system.

Enhancing User Experience and Communication at Crossings [tapconet]

From a road user's perspective, the safest crossings are intuitive: drivers and pedestrians immediately understand who should do what, and when. [luminokrom]

To support that experience, we encourage agencies to:

- Use consistent sign types and flash patterns so drivers recognize key cues across the network. [carmanah]

- Combine LED traffic signs with clear road markings, curb extensions, and refuge islands where appropriate. [luminokrom]

- Provide public education on how to respond to new devices like RRFBs or pedestrian‑activated beacons. [carmanah]

Engaging communities through online feedback forms, walkability audits, and advisory committees can uncover local insights about near‑miss locations and behavior patterns that raw crash data misses. [carmanah]

Clear Call to Action: Partner with a Specialist Manufacturer

If you are planning to upgrade crosswalks, school zones, toll plazas, or parking facilities, working with an experienced LED traffic sign manufacturer can save time, reduce risk, and improve long‑term performance. As Shenzhen Xingsheng Traffic Facilities Co., Ltd., we can:

- Help you assess sites and select suitable LED solutions.

- Provide OEM / ODM customization for regional standards and branding.

- Support pilot projects, testing, and phased roll‑outs to validate effectiveness.

You can contact our engineering team with your drawings, photos, or performance requirements, and we will propose a tailored LED traffic sign and pedestrian crossing light solution for your specific network.

Frequently Asked Questions (FAQ)

Q1: Where are LED traffic signs most effective for pedestrian safety?

LED traffic signs are particularly effective at uncontrolled crosswalks, mid‑block crossings, school zones, and intersections with known compliance problems, especially at night or in poor weather. [tapconet]

Q2: How do LED‑enhanced signs compare with traditional reflective signs?

Traditional signs rely solely on headlights and driver attention, while LED‑enhanced signs add active flashing conspicuity that commands attention and has been associated with meaningful reductions in crashes and violations in several field deployments. [safetydecals]

Q3: Do LED traffic signs require grid power?

Not always; many modern systems use high‑efficiency LEDs with solar power and battery storage, allowing reliable operation in remote areas or locations where trenching for power is cost‑prohibitive. [carmanah]

Q4: Will LED signs cause glare or distraction for drivers?

When designed according to recommended practices for intensity, viewing angles, and automatic dimming, LED traffic signs improve visibility without causing disability glare or undue distraction for motorists. [tac-atc]

Q5: Can LED pedestrian crossing systems be customized for local regulations and languages?

Yes, OEM and ODM manufacturers can adapt sign dimensions, legends, colors, and control logic to meet local standards and language requirements while maintaining core safety performance. [tac-atc]
