As a traffic‑safety manufacturer based in Shenzhen, we design and build LED traffic signs, solar road markers, LED warning lights, and parking‑lot safety systems for highways, toll plazas, and urban roads. That real‑world experience means we don't just know what a chevron sign is—we know how it should be placed, installed, and specified to actually reduce crashes and improve driver behavior.
In this guide we'll explain:
- What a chevron (alignment) sign really means.
- How chevron signs differ from standard curve‑warning signs.
- Common types and marking patterns.
- Practical installation and placement tips for engineers and road‑safety teams.
- How modern LED and solar‑powered chevron‑style systems can enhance older‑style W1‑8 signs.

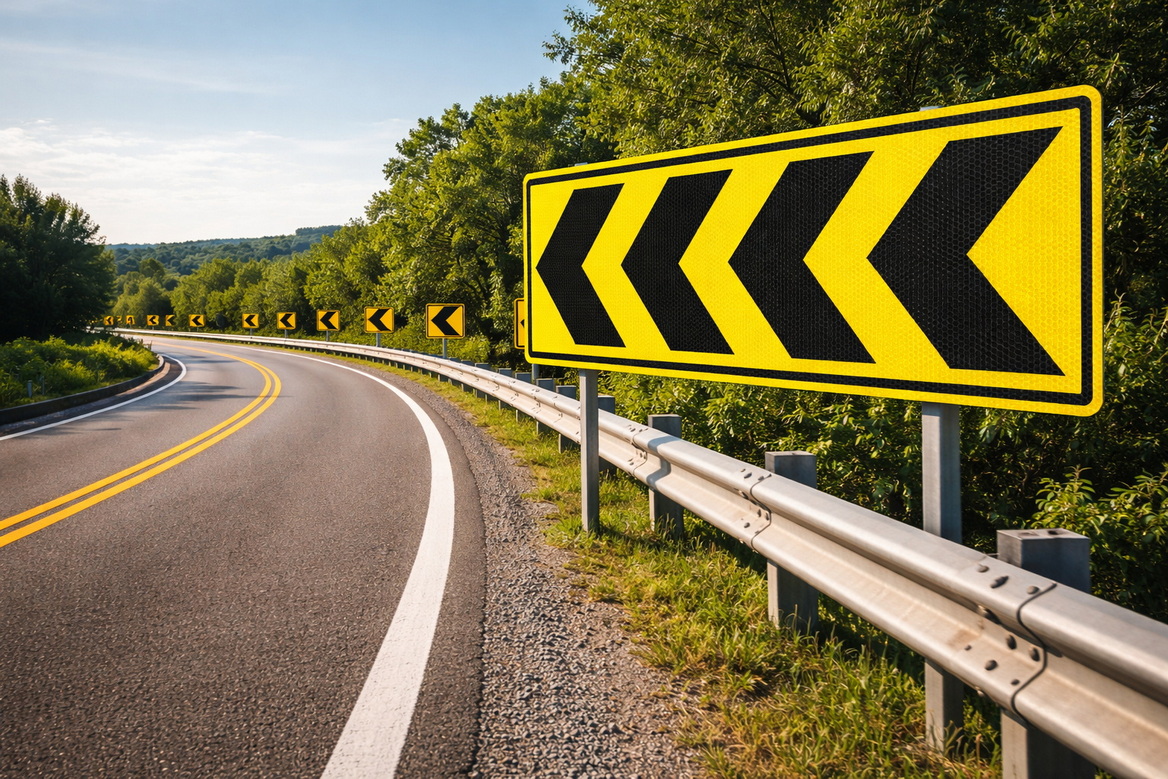

A chevron sign (officially called a chevron alignment sign, MUTCD W1‑8) is a tall, vertical traffic‑safety sign placed along the outside of a curve to show the direction of the road's alignment and remind drivers to slow down.
Key points:
- Warning sign type: It warns drivers of a change in horizontal alignment (sharp curve, bend, or narrowing).
- Visual cue: It uses bold arrows or V‑shaped stripes pointing in the direction the road turns.
- Color/safety standard: Typical MUTCD chevron signs are yellow or orange with black arrows, using high‑contrast colors for maximum visibility.
From a manufacturer's perspective, the meaning of a chevron sign is simple:
> "The road ahead is sharply curving this way; reduce speed and stay in your lane."
Many drivers and even some planners confuse chevron signs with standard curve‑warning signs. Here's how they differ:
| Feature | Standard Curve‑Warning Sign | Chevron Alignment Sign (Chevron Sign) |
|---|---|---|
| Form | Diamond‑shaped, single‑board sign | Tall vertical rectangle, often multiple units along curve |
| Purpose | First warning that a curve is ahead | Continuous guidance through the entire curve |
| Placement | Placed before the curve begin point | Placed along the outside of the curve |
| Driver behavior | Tells drivers “curve ahead; slow down” | Keeps drivers “tracking” the bend and staying in lane |
| MUTCD category | General warning sign (W1 series) | Chevron alignment sign (W1‑8) |
From our experience designing LED traffic warning lights and road‑safety systems, combining a standard curve‑warning sign at the approach with a series of chevron‑style markers along the curve gives the highest reduction in run‑off‑road and head‑on crashes.
Chevron signs are classified mainly by arrow configuration and intensity of the curve. Building and installing these is part of our OEM/ODM workflow, so we see how each pattern translates into on‑road safety outcomes.
- One bold arrow or V‑strip indicating a moderate curve.
- Often placed just after the standard curve‑warning sign.
- Good for rural roads and low‑speed urban curves.
- Two arrows aligned in the same direction.
- Emphasizes a stronger or sharper curve, or a longer bend.
- Common on highways and mountainous routes where drivers can lose sense of direction.
- Three arrows, maximum visual emphasis.
- Used for tight, accident‑prone curves or construction‑zone detours.
- Studies show that more chevrons in a curve correlate with lower mean speeds and fewer run‑off‑road incidents.
- Yellow chevrons: Permanent or long‑term installations.
- Orange chevrons: Temporary or construction‑zone use.
This is consistent with MUTCD and international guidance on temporary work‑zone signage.
Chevron signs are not just "nice‑to‑have" decoration—they are a low‑cost, high‑impact traffic‑safety treatment.
- Continuous visual guidance: Unlike a single curve‑warning sign, chevrons walk the driver through the bend, reducing lane‑departure risk.
- Speed reduction: Research shows that curves with chevrons have lower mean speeds and fewer crashes.
- Night visibility: High‑reflection sheeting and strong color contrast make chevrons clear even in low‑light conditions.
From our perspective as a manufacturer of LED traffic signs and solar road markers, chevron‑alignment signs are often the first line of defense on curves where installing full LED‑variable‑message systems is not yet justified.
Chevron alignment signs are most effective when placed strategically along the hazard. Drawing from manuals and field deployment data, they appear in:
- Highway curves and mountain roads
- Approaches to narrow bridges
- Roundabouts and tight urban turns
- Construction‑zone detours and temporary lane‑shifts

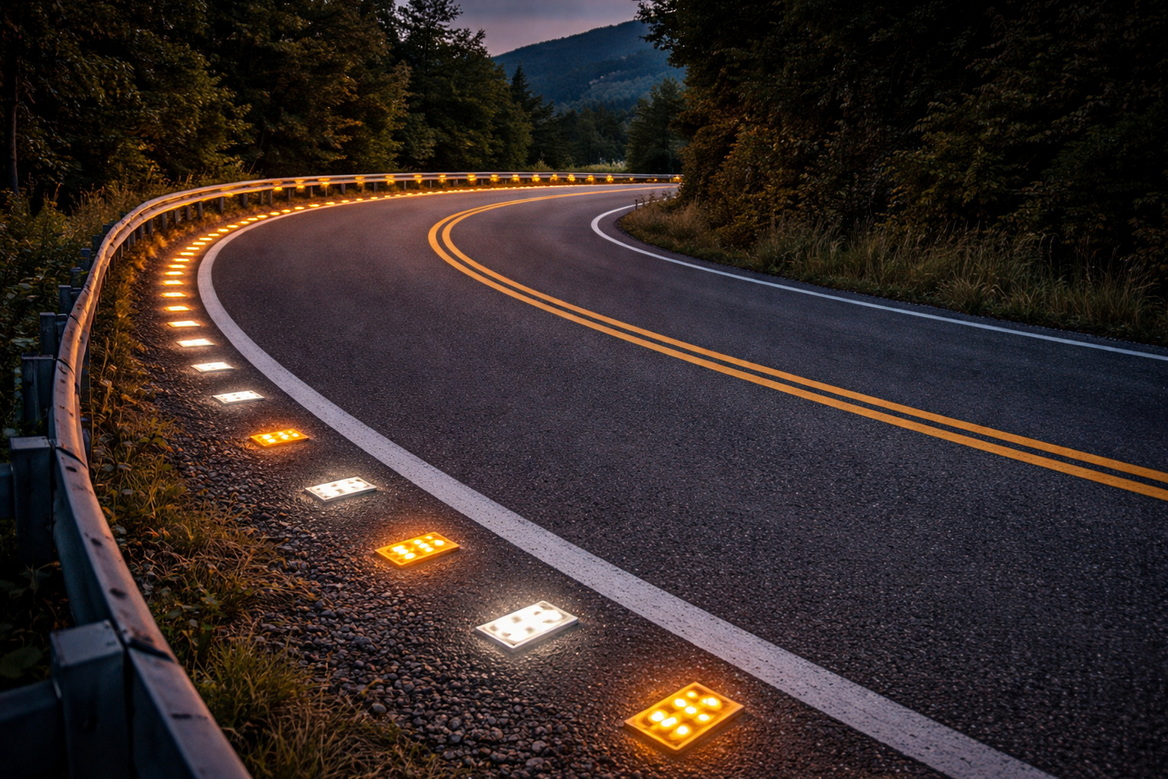

Our solar road markers and LED traffic warning lights are often paired with chevron signs in high‑risk night‑driving zones, giving drivers both passive reflectivity and active illumination.

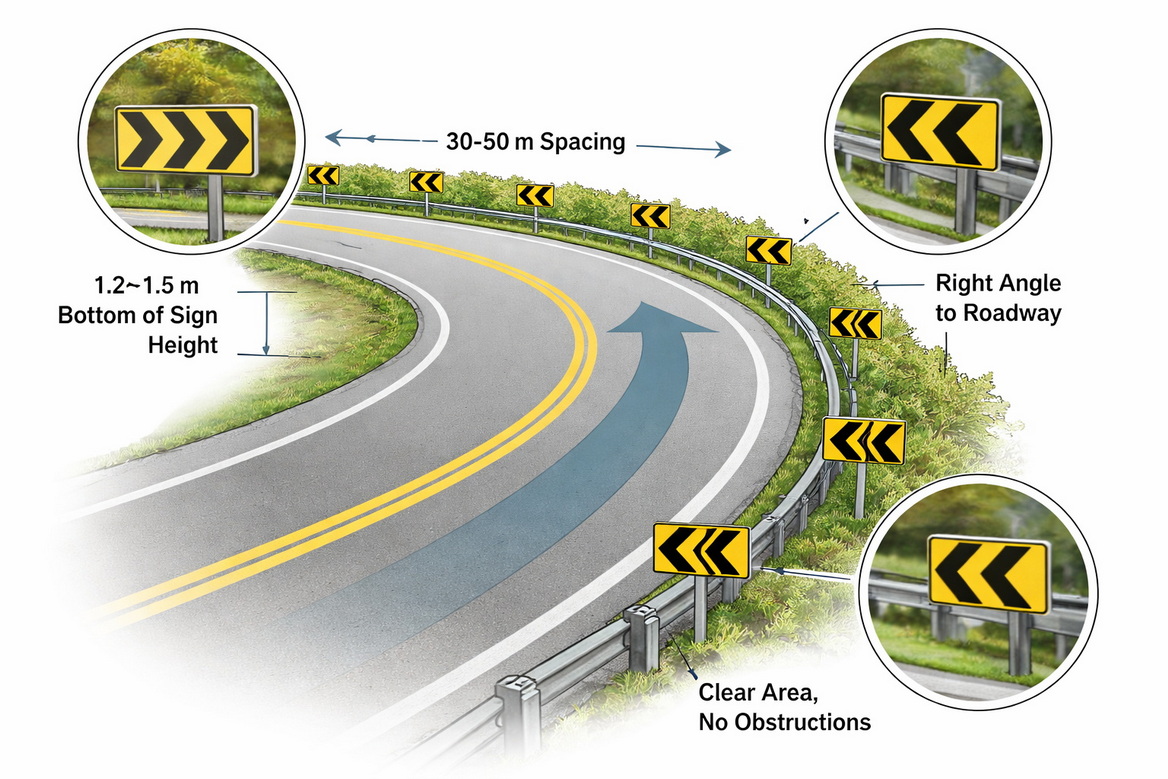

How (and where) you install chevron signs directly affects their effectiveness. Here's a practical checklist from our engineer and contractor perspective:
- Place chevrons on the outside of the curve, facing oncoming traffic at a right angle.
- Ensure at least two chevrons are visible when entering a curve, so the driver never loses the visual cue.
- For shorter curves: 1–2 chevrons are often enough.
- For longer or sharper bends: space chevrons every 30–50 meters to maintain lane discipline.
- Mount signs so the arrow points directly along the curve; avoid twisting or tilting.
- Keep the bottom of the sign several meters above the roadway to avoid obstruction by snow or parked vehicles.
- Use high‑grade aluminum with 3M‑grade reflective sheeting for 10+‑year service life.
- For high‑corrosion or coastal areas, consider our marine‑grade or powder‑coated chevron‑style markers.
These practices align with FHWA and international guidance on low‑cost horizontal‑curve treatments, which recommend chevrons as a core element of basic curve‑safety upgrades.
Chevron‑style design is not limited to static yellow‑and‑black signs; it inspires active warning systems and parking‑lot safety layouts.

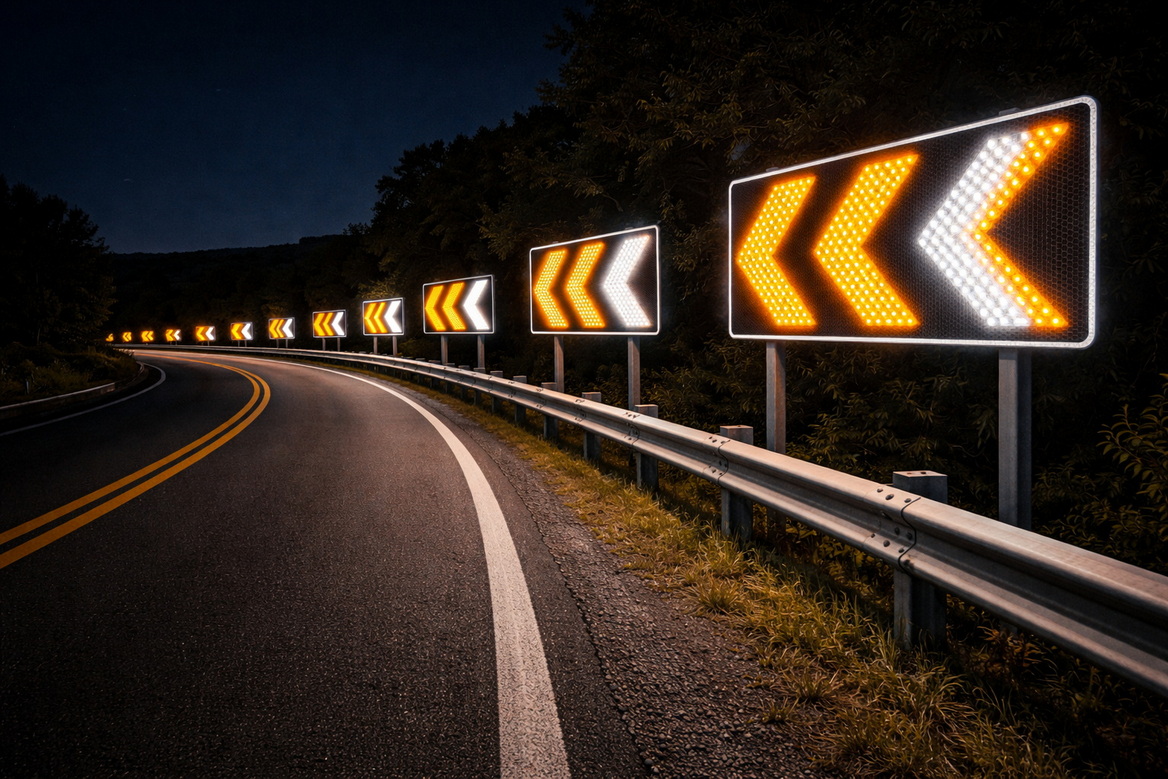

- We manufacture LED chevron‑style warning lights for highway curves, toll plazas, and construction zones.
- These systems flash in sequence along the curve, mimicking the "arrow‑track" effect of static chevrons.

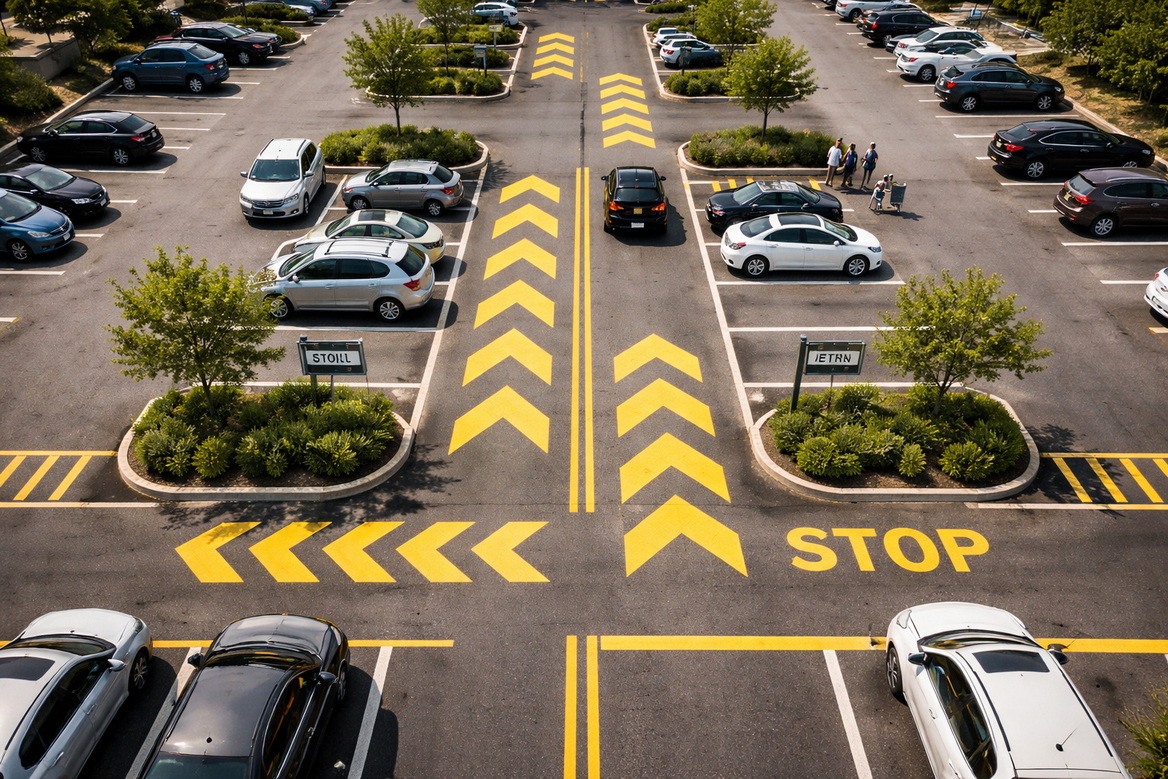

- In parking lots and low‑speed access roads, solar‑powered chevron‑style markers can:
- Delineate turn‑arrows at intersections.
- Mark one‑way lanes or loading‑zone boundaries.
- Our solar traffic lights and parking‑lot safety facilities often integrate chevron‑based layouts to guide drivers without confusing them.
This combination of passive chevron signs and active LED/solar systems is one of the most cost‑effective ways to upgrade older road‑safety infrastructure.
As a Shenzhen‑based manufacturer of LED traffic signs, LED warning lights, solar road markers, and parking‑lot safety equipment, we often advise customers on chevron‑related decisions. Here's our practical checklist:
- For low‑speed roads and roundabouts:
- Use standard yellow or orange chevron signs with reflective sheeting.
- For high‑speed highways and mountain curves:
- Combine chevron signs with additional curve‑warning signs and LED‑based chevron‑style warning lights.
- For work‑zone or temporary applications:
- Use portable orange chevron signs and solar‑powered LED chevron‑style markers.
If you need custom sizes, colors, or integrated LED chevron‑style systems, we support OEM and ODM services to align the design with your local standards and traffic‑volume profile.
Contact us to get more information!
A chevron sign (chevron alignment sign) indicates that the road ahead is sharply curving left or right. It helps drivers adjust speed and stay in their lane as they move through the bend.
A curve‑warning sign is a single diamond‑shaped sign placed before the curve to warn drivers. A chevron sign is a tall vertical sign placed along the outside of the curve to continuously guide them through the turn.
Typical chevron signs are yellow or orange with black arrows. Yellow is for permanent or semi‑permanent installations; orange is for temporary or construction‑zone use.
Chevron signs keep drivers visually "tracking" the curve, which reduces run‑off‑road and head‑on collisions. Studies show that adding chevrons to curves often leads to lower mean speeds and fewer incidents.
Yes. Chevron‑style arrows and patterns are adapted into LED traffic warning lights, solar road markers, and parking‑lot markings to guide drivers in low‑speed environments. Our OEM/ODM services can integrate chevron‑based layouts into these systems.
