As someone who has spent years working with LED traffic warning lights and pedestrian safety systems, I have seen first-hand how well-designed advance warning signs and rectangular rapid-flashing beacons (RRFBs) transform dangerous crossings into predictable, much safer environments. This guide combines current research, field experience, and practical tips to help cities, engineers, and facility managers get more safety value from every installation. [carmanah]
Rectangular rapid-flashing beacons are high‑intensity, LED-based warning devices that supplement standard pedestrian or school crossing signs at midblock or unsignalized intersections. They are typically pedestrian‑activated, producing an irregular, attention‑grabbing flash pattern that is similar to emergency vehicle lights. [carmanah]
Key reasons RRFBs have become a go‑to countermeasure:
- They can reduce pedestrian crashes by around 47% and increase driver yield rates up to about 96–98% at treated crossings. [highways.dot]
- They are relatively low‑cost compared with full traffic signals, yet deliver a large safety benefit at uncontrolled crossings. [carmanah]
- They stay dark until activated, reducing visual clutter and ensuring the flash has strong contrast and urgency when it is needed. [carmanah]
For agencies under pressure to cut pedestrian fatalities at uncontrolled crossings, RRFBs offer a practical, scalable tool that fits into standard MUTCD‑approved practice. [carmanah]

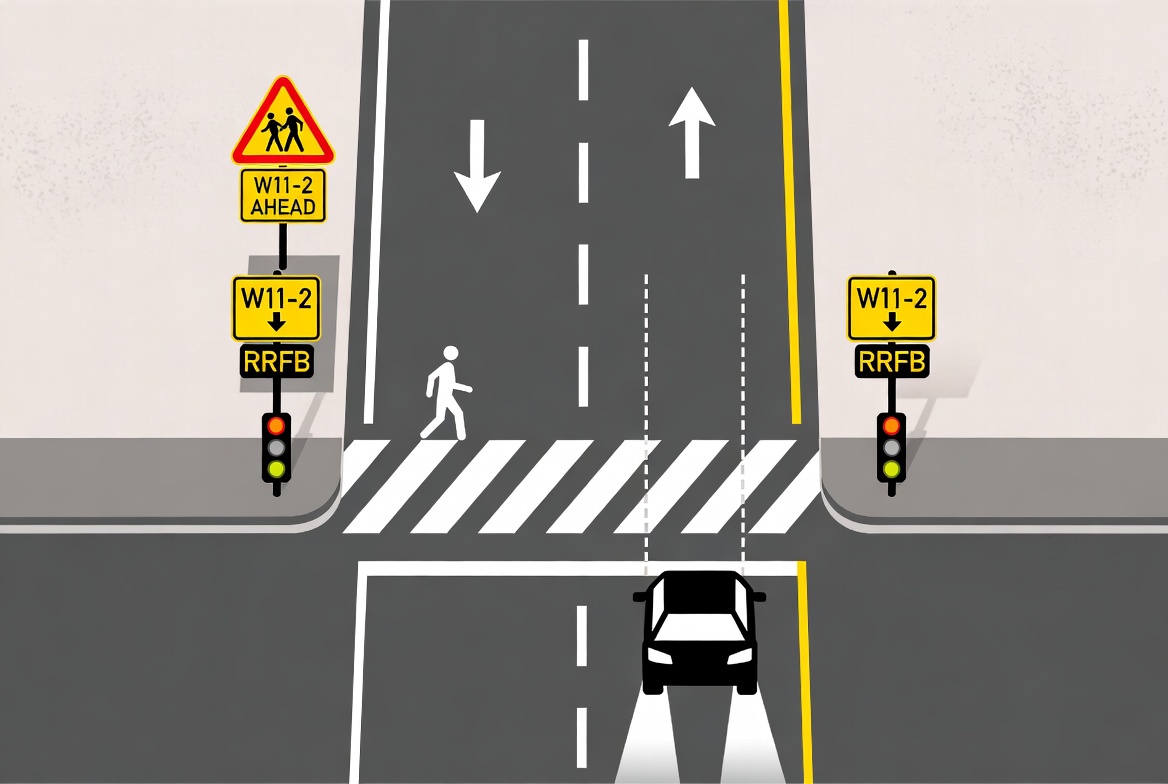

Most discussions focus on RRFBs at the crosswalk itself, but advance pedestrian warning signs—with or without RRFBs—play a crucial role whenever sight distance is limited or approach speeds are high. [carmanah]
Typical configuration:
- At the crosswalk:
- Standard pedestrian (or school) crossing sign with an RRFB bar mounted below.
- In advance of the crossing (where sight distance is limited):
- A supplemental pedestrian warning sign placed on the approach, optionally with an additional RRFB that is wirelessly or physically connected to the main system. [carmanah]
This advance RRFB is supplemental, not a replacement. It must work in concert with the primary RRFBs at the crosswalk so drivers receive a consistent, reinforced warning message as they approach. [carmanah]
The short answer from both practice and guidance is yes—and in many cases, you should. [carmanah]
Adding RRFBs to advance warning signs is especially valuable when:
- The approach has limited sight distance due to curves, grades, or roadside obstructions. [carmanah]
- Operating speeds are moderate to high, giving drivers less time to see and respond to the crosswalk. [carmanah]
- The crossing serves vulnerable users (school children, seniors, people with disabilities) or high pedestrian volumes.
From a systems perspective, the advance RRFB should be interconnected with the main crosswalk RRFBs so that a single button press or detection event triggers both devices in a coordinated sequence. This creates a clear narrative for drivers: "Pedestrian ahead—slow down and prepare to yield—now here is the crosswalk itself." [carmanah]

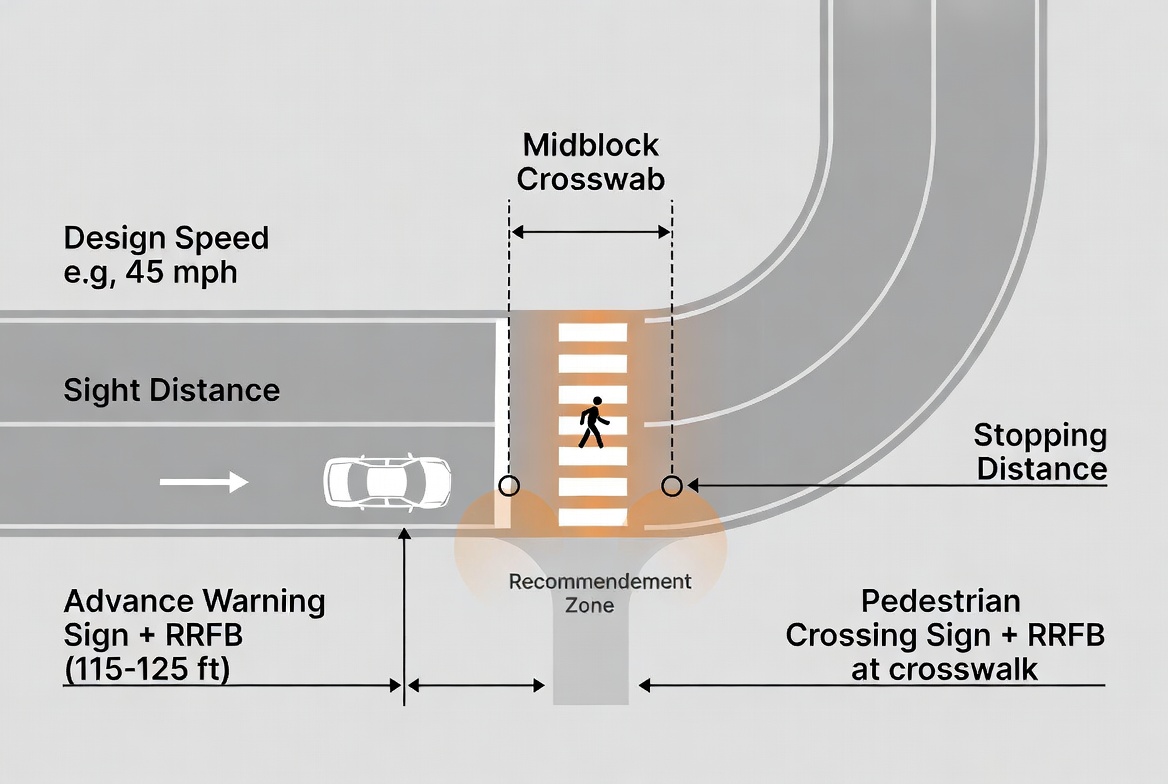

Placement is one of the most critical design decisions. MUTCD guidance and field research emphasize positioning that provides adequate perception–response time without placing the sign so far upstream that drivers forget the message. [carmanah]
From a practitioner's standpoint, I focus on three factors:
1. Sight distance and stopping distance
- On approach segments with limited visibility, advance signs and RRFBs are typically placed roughly 115–125 feet in advance of the crosswalk, though the specific distance should be refined using local design speed, grade, and sight distance calculations. [carmanah]
2. Driver workload and visual clutter
- Avoid placing advance warning devices where they compete with intersections, driveways, or complex wayfinding signs; clutter erodes the conspicuity benefit you paid for. [carmanah]
3. Consistency along a corridor
- Use similar distances and sign hierarchy at comparable crossings, so local drivers quickly understand the meaning of the treatment pattern.
A good rule of thumb: the advance device should be close enough that a driver can see the warning, check mirrors, adjust speed, and still comfortably yield at the crosswalk—even if road conditions are poor.
Multiple independent studies, along with federal evaluations, now confirm what many of us observed early in the field: RRFBs change driver behavior in a sustained way. [connect.ncdot]
Key findings from recent research:
- Driver yield rates:
- RRFBs frequently raise motorist "yield to pedestrian" compliance into the high 80% to nearly 100% range, compared with much lower pre‑installation rates. [tac-atc]
- Crash modification factors (CMFs):
- A U.S. safety effectiveness study estimated a pedestrian crash CMF around 0.64, corresponding to a substantial reduction in pedestrian crashes at treated crossings. [rosap.ntl.bts]
- Rear‑end crashes:
- Some analyses observed small increases in rear‑end collisions at certain sites, but overall safety effects remain positive when weighing different crash types. [rosap.ntl.bts]
For decision‑makers, the implication is clear: RRFBs are no longer experimental; they are a mainstream, evidence‑based countermeasure endorsed by FHWA and widely used in North America. [highways.dot]
To maintain both safety and legal defensibility, RRFB systems must follow MUTCD guidance on where they are allowed, how they are configured, and what colors they use. [carmanah]
Key compliance points:
- RRFBs are generally not permitted at fully signalized or stop‑controlled intersections; their role is primarily at uncontrolled or midblock crossings. [carmanah]
- RRFB indications must use a yellow warning color, not red, aligning them with a "warning/attention" meaning rather than a stop‑control signal. [carmanah]
- Red continues to be reserved for stop signs and signals; yellow RRFBs supplement the existing warning sign, telling drivers to pay particular attention and be prepared to yield to pedestrians. [carmanah]
- Pushbuttons, if used, must meet accessibility requirements, including mounting height (typically around 3.5–4 feet) and clear instructions for use. [carmanah]
Always verify the latest MUTCD edition or local supplements, as guidance continues to evolve in response to new research and technologies. [carmanah]
Beyond standards and diagrams, success with RRFBs and advance warning signs comes down to execution in real street environments.
- Pedestrian pushbutton:
- Simple, intuitive, and widely used; requires clear labeling and ADA‑compliant mounting. [carmanah]
- Passive detection (e.g., sensors):
- Useful where pedestrians may forget or be unable to press a button, such as school crossings with groups of children. [carmanah]
In many projects, I recommend combining pushbutton with passive detection at higher‑risk sites to reduce missed activations.

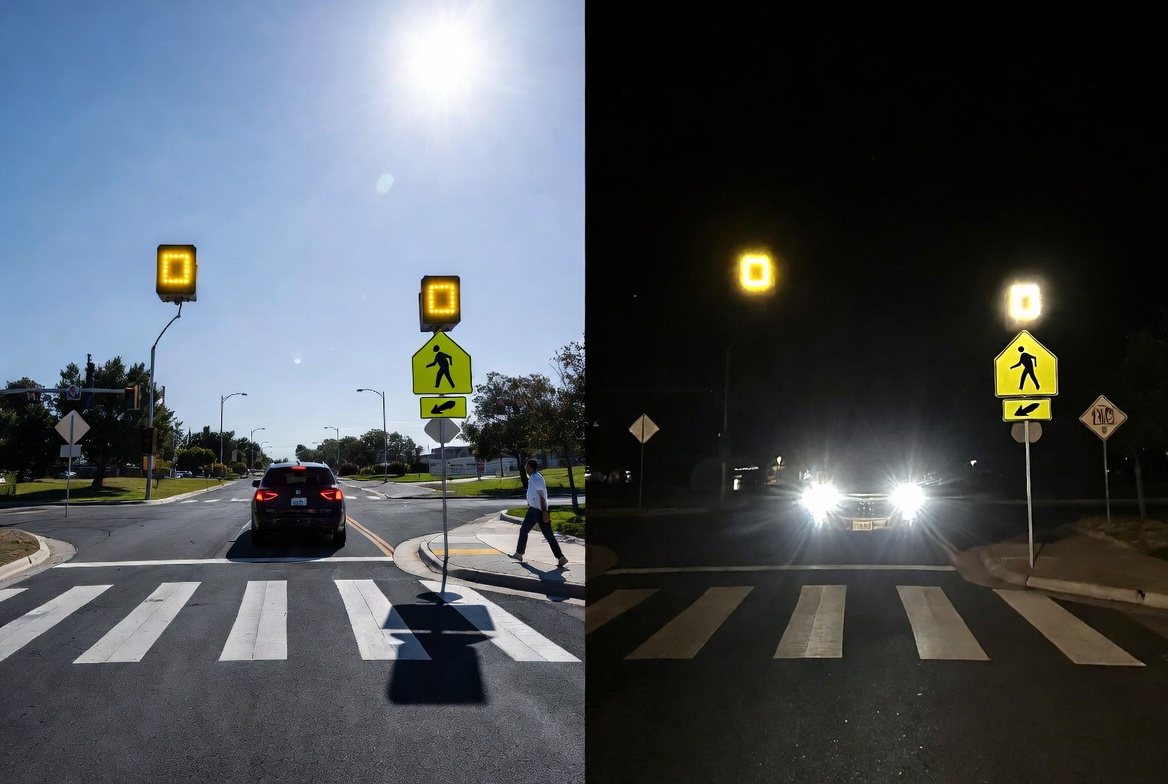

LED‑based warning systems are particularly valuable at night, in rain, or in fog, when visibility drops and wrong‑way or non‑yield behavior spikes. Ensuring adequate contrast, aiming, and intensity settings matters as much as daytime performance. [lanelight]
On complex corridors, RRFBs may operate alongside:
- LED‑enhanced parking or garage warning signs (e.g., "CAR COMING," "VEHICLE EXITING"). [directionalsystems]
- Wrong‑way and ramp‑warning LED systems, which have shown around 62% reductions in reported wrong‑way entries on treated ramps. [lanelight]
A good systems designer treats these elements as a coherent package, not isolated devices.

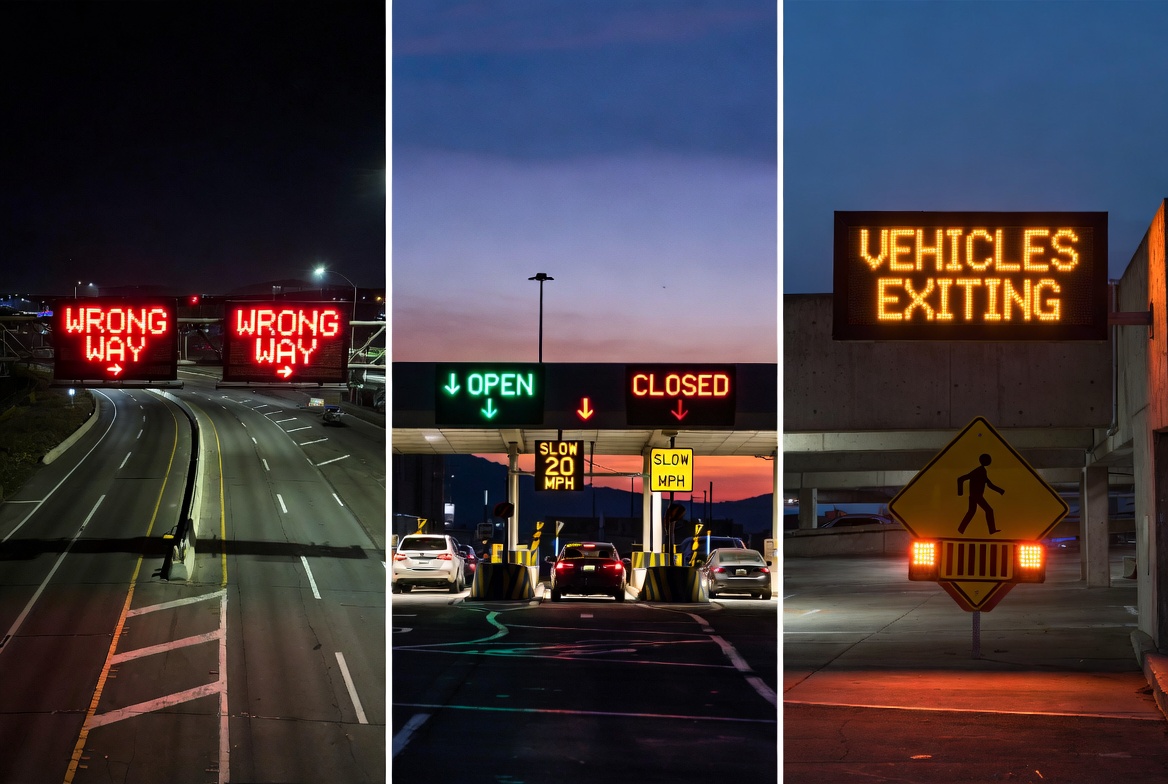

From the perspective of a manufacturer specializing in LED traffic warning lights for highways, toll stations, street networks, and parking facilities, RRFBs are one component of a wider ecosystem.
Strategic applications where the same design principles apply:
- Freeway and expressway ramps:
- LED wrong‑way warning signs and in‑road LEDs alert impaired or confused drivers and have demonstrated significant reductions in wrong‑way events. [lanelight]
- Toll plaza approaches:
- High‑visibility LED merge, lane‑status, and speed‑reduction warnings, synchronized with barrier control systems, reduce last‑second lane changes.
- Parking facilities:
- LED "HIDDEN CROSSWALK" or "ONCOMING TRAFFIC" signs improve safety where pedestrians emerge from behind pillars or parked vehicles. [directionalsystems]
Manufacturers that offer OEM and ODM services can adapt optics, flash patterns, power systems (including solar), and communication protocols to match the diverse demands of these environments, ensuring a consistent safety philosophy from curb to highway.

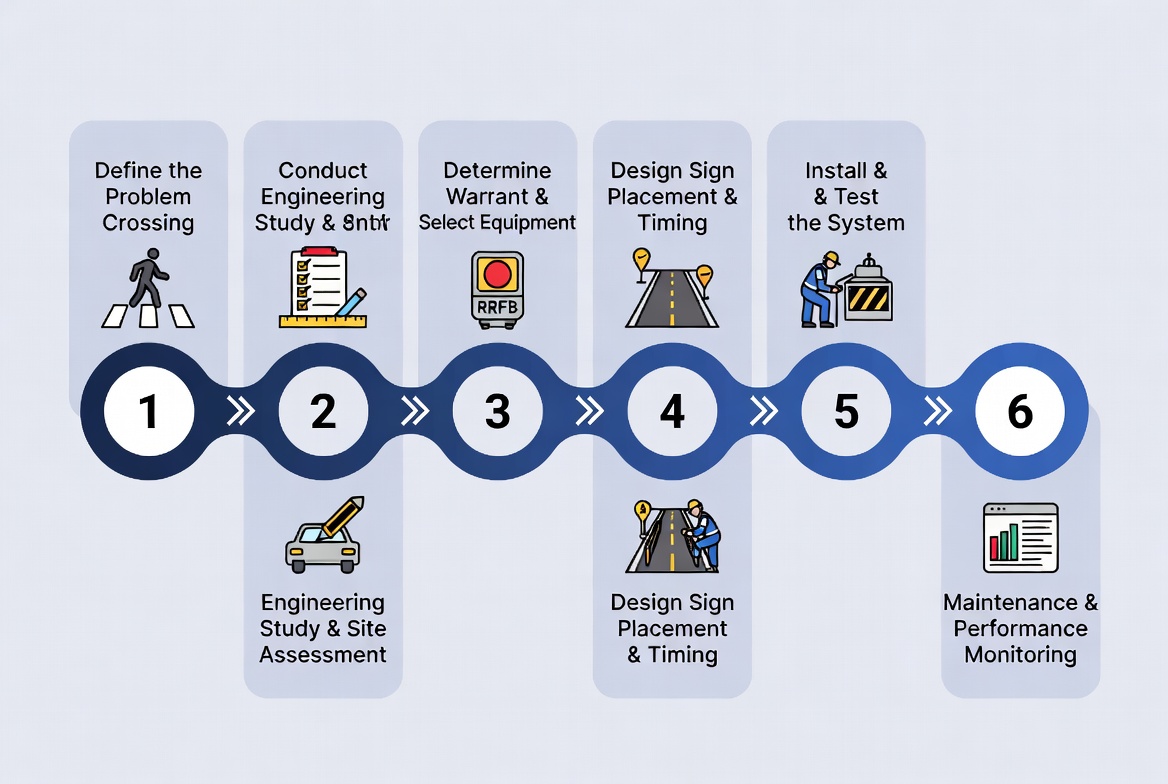

For agencies or facility managers planning their next project, this is the practical sequence I recommend:
1. Define the problem crossing
- Document pedestrian volumes, speeds, crash history, sight distance issues, and nearby land uses (schools, transit stops, parking access).
2. Confirm suitability for RRFB treatment
- Verify that the crossing is uncontrolled or midblock and meets local criteria for enhanced treatments, in line with MUTCD guidance. [carmanah]
3. Determine need for advance warning
- Conduct a field review to assess sight distance, curvature, and grades; if drivers have limited time to react, plan for an advance warning sign and consider supplemental RRFBs. [carmanah]
4. Select LED equipment and power options
- Decide between solar or grid‑powered systems based on site conditions, reliability needs, and maintenance practices. [carmanah]
5. Design activation and connectivity
- Choose pushbutton vs. passive detection; ensure synchronized operation between the advance RRFB and the main crosswalk units. [carmanah]
6. Plan for maintenance and performance monitoring
- Establish inspection intervals, cleaning routines for lenses, and procedures for logging yield behavior and crashes, so you can evaluate effectiveness over time. [rosap.ntl.bts]
This structured approach reduces project risk and makes it easier to justify investments to stakeholders.
As RRFBs and LED warning systems become more integrated into traffic operations, the choice of manufacturing partner affects long‑term performance as much as initial design.
Factors I advise agencies and integrators to prioritize:
- Specialization in traffic safety
- Look for manufacturers whose core portfolio covers LED traffic warning lights, pedestrian beacons, wrong‑way systems, and parking safety signs rather than generic LED products. [directionalsystems]
- Experience with OEM/ODM customization
- Projects often require tailored optics, housings, and communication interfaces; working with a supplier experienced in OEM/ODM reduces integration friction.
- Compliance documentation and testing
- Ensure products have been tested against relevant standards and that the manufacturer can provide photometric data, environmental test results, and MUTCD‑aligned installation guidance. [carmanah]
- Global supply and support
- For international deployments, choose partners familiar with export logistics, local certification processes, and multilingual technical support.
A manufacturer based in established traffic‑technology hubs (such as Shenzhen) with a broad portfolio in LED traffic warning lights, highway systems, and parking guidance can often deliver both cost‑effectiveness and engineering depth. [shenzhen.made-in-china]
| Scenario | Primary Device | Supplemental Device | Key Benefit |
|---|---|---|---|
| Midblock school crosswalk | RRFB at crosswalk sign (carmanah) | Advance warning sign + RRFB (carmanah) | High yield rates, earlier driver awareness |
| Curved arterial with bus stop | RRFB at crosswalk (carmanah) | Advance sign only | Better sight distance, reduced surprise |
| Freeway off‑ramp | Wrong‑way LED signs (lanelight) | In‑road LEDs and RRFB where applicable (lanelight) | Fewer wrong‑way entries at night |
| Parking garage exit | LED “VEHICLE EXITING” sign (directionalsystems) | “HIDDEN CROSSWALK” warning (directionalsystems) | Fewer low‑speed conflicts with pedestrians |
If you are responsible for street, highway, toll‑station, or parking‑facility safety, now is the time to audit your uncontrolled crossings and high‑risk approaches. Use the latest RRFB research, MUTCD guidance, and LED warning technologies to upgrade sites where traditional static signs are no longer enough. [highways.dot]
Partner with a specialized LED traffic warning light manufacturer that can provide compliant RRFB systems, customized advance warning solutions, and integrated packages for your full network—from local streets to expressways and parking facilities. With the right design and hardware, you can turn today's high‑risk locations into predictable, forgiving environments for both drivers and pedestrians. [ms.alite-tmwt]
1. Are RRFBs allowed at any pedestrian crossing?
No. RRFBs are generally intended for uncontrolled or midblock crossings and are not allowed at fully signalized or stop‑controlled intersections under MUTCD guidance. [carmanah]
2. How much do RRFBs actually improve safety?
Studies show RRFBs can reduce pedestrian crashes by roughly 40–50% and increase yield rates into the high 80–98% range, depending on site conditions. [connect.ncdot]
3. Do I always need an advance warning sign with RRFBs?
Not necessarily. Advance devices are especially valuable when sight distance is limited or approach speeds are high; on low‑speed, high‑visibility approaches, crosswalk‑mounted RRFBs alone may be sufficient. [carmanah]
4. Are yellow RRFBs as strong as red signals?
RRFBs use yellow indications to supplement warning signs, not to replace traffic signals; research shows that the unique rapid flash pattern still generates very high driver compliance while staying within MUTCD rules. [carmanah]
5. How should I choose between solar and AC‑powered RRFBs?
Solar is often ideal where power is unavailable or trenching is expensive, provided the site has adequate sun; grid power may be preferable in shaded urban canyons or locations with high availability requirements. [carmanah]
