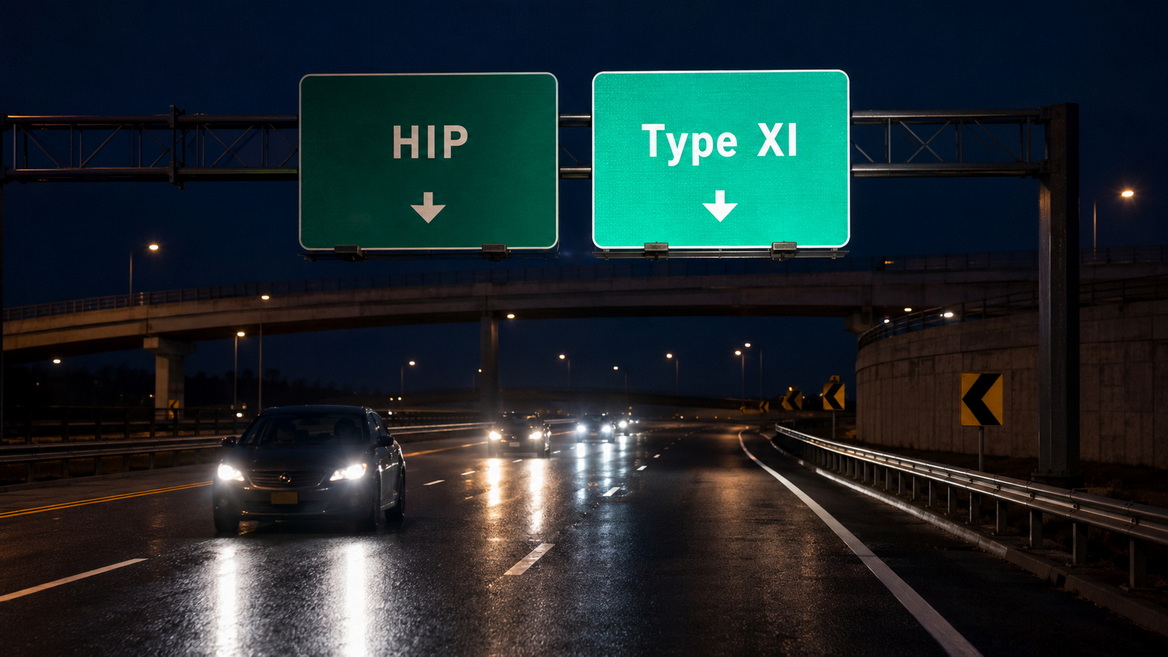

● Nighttime Visibility Comparison
>> Situations That Increase Visibility Demand
● Wide-Angle Viewing Performance
>> Locations With Challenging Angles
● Durability and Maintenance Considerations
>> Factors That Affect Service Life
● How to Choose the Right Sheeting
>> 2. Assess the Traffic Environment
>> 3. Identify the Sign Function
>> 4. Check Installation Geometry
>> 5. Compare Total Ownership Cost
● Road Reflectors and Reflective Sheeting
● Summary
● FAQ
>> What is the main difference between Type XI and HIP reflective sheeting?
>> Is Diamond Grade Type XI sheeting suitable for local streets?
>> Which sheeting is better for highway exit signs?
>> Can HIP sheeting be used for parking-lot signs?
>> Is Type XI sheeting more expensive than HIP?
Selecting the right reflective sheeting can directly affect how quickly drivers see, understand, and respond to traffic information at night. When comparing Diamond Grade Type XI reflective sheeting with High Intensity Prismatic (HIP) sheeting, the key question is not simply which product is brighter. The real question is which material provides the correct balance of visibility, durability, project compliance, and long-term value for a specific roadway environment.
For highways, toll plazas, city streets, parking facilities, construction zones, and industrial sites, reflective materials need to perform under real conditions. Drivers may approach signs at high speed. Rain can reduce contrast. Streetlights and commercial lighting can create glare. Trucks and passenger cars can view the same sign from different angles. A reflective sheeting decision should therefore be based on the full traffic environment rather than material cost alone.
Diamond Grade Type XI and HIP sheeting are both widely used in modern traffic safety products. However, they serve different performance levels and project priorities. This guide provides a detailed comparison to help traffic-safety buyers, contractors, distributors, road authorities, and OEM product developers make a more informed decision.
> Quick answer: HIP sheeting is often a practical and cost-efficient choice for standard traffic signs and lower-risk applications. Diamond Grade Type XI sheeting is generally more suitable for high-speed highways, overhead signs, toll approaches, complex interchanges, and other locations where earlier driver recognition is critical.
Retroreflective sheeting is a specialized material that returns vehicle headlamp light toward the driver. It does not generate light by itself. Instead, its optical structure captures incoming light and redirects a portion of that light back toward the source.
This is why a traffic sign, road reflector, delineator, warning device, or barrier marker can appear bright at night when illuminated by headlights.
In daytime conditions, drivers rely on natural light, color contrast, sign shape, and surrounding visual cues. At night, those cues become less reliable. Road users depend much more heavily on reflective traffic-control devices to identify lane directions, speed restrictions, hazards, exits, curves, toll lanes, parking entrances, and work zones.
The choice of sheeting can influence:
- Nighttime sign visibility
- Driver recognition distance
- Reaction time before a maneuver
- Readability of symbols, arrows, and legends
- Performance under rain, glare, and low-light conditions
- Visibility for passenger vehicles and commercial trucks
- Maintenance frequency
- Replacement cost
- Overall road-safety performance
A sign that becomes visible only at a short distance may be technically reflective, but it may not provide enough time for a driver to read the message and take safe action.
This is especially important in situations such as:
- Highway exits and lane splits
- Sharp curves
- Toll booth approaches
- Multilane intersections
- Overhead guide signs
- Temporary work zones
- Urban roads with bright surrounding lights
- Heavy rain or wet-road conditions
- Truck routes and logistics corridors
Diamond Grade Type XI sheeting and HIP sheeting are both based on advanced prismatic technology. However, their optical performance levels are different.
HIP means High Intensity Prismatic. It is commonly used for traffic signs, parking guidance signs, municipal road signage, warning devices, and many general road-safety applications.
Diamond Grade Type XI is a higher-performance microprismatic sheeting category. It is designed for more demanding traffic environments where drivers need strong nighttime visibility, wider-angle reflectivity, and earlier recognition.
| Feature | HIP Sheeting | Diamond Grade Type XI Sheeting |
|---|---|---|
| Typical performance category | Often Type III or Type IV | Type XI |
| Optical structure | Microprismatic / cube-corner | Advanced full-cube microprismatic |
| Relative nighttime brightness | Medium to high | Very high |
| Wide-angle visibility | Good | Excellent |
| Best for | Standard signs and routine traffic applications | High-speed and high-risk traffic environments |
| Typical initial cost | Lower | Higher |
| Life-cycle value | Strong for normal installations | Strong for critical and difficult-to-maintain locations |
| Common applications | Municipal signs, parking signs, warning signs, street-name signs | Highways, overhead signs, toll plazas, interchanges, work zones |
The most important point is that a higher-grade sheeting should not be used automatically for every project. The correct material depends on the road environment, traffic speed, placement angle, sign type, budget, safety risk, and required performance level.

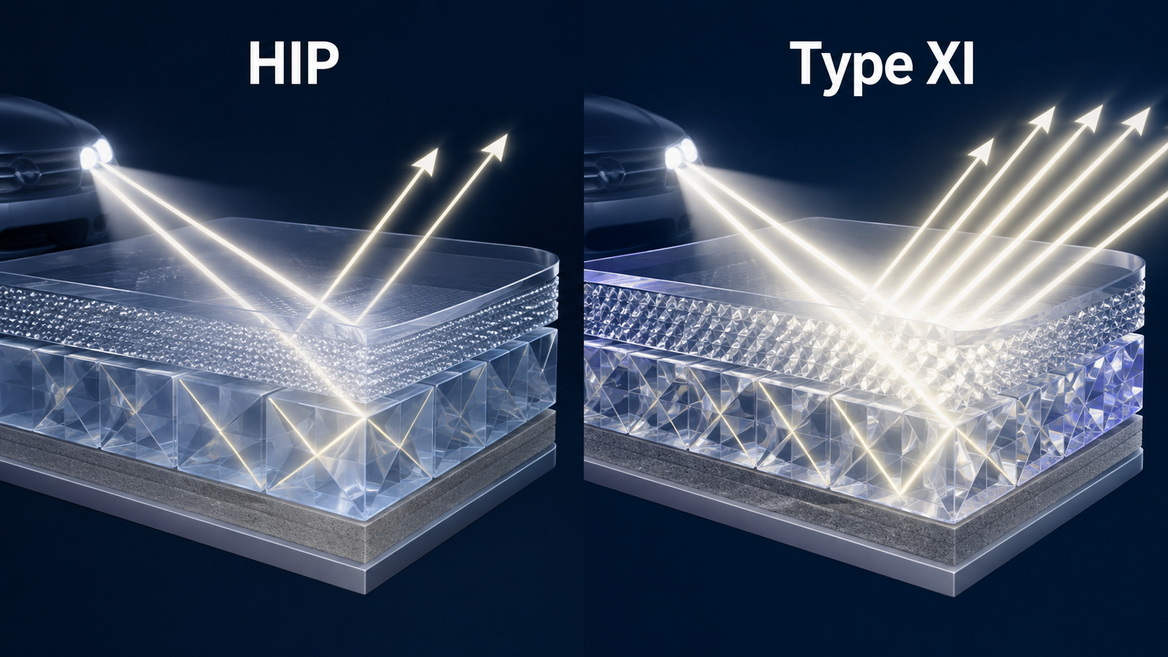

HIP sheeting uses a microprismatic structure. This structure contains many small cube-corner prisms that return light toward the approaching vehicle.
Compared with traditional glass-bead reflective materials, HIP sheeting usually provides stronger visibility and better durability. It is often selected when a project needs dependable reflective performance without the higher cost of premium Type XI material.
HIP reflective sheeting is widely used for:
- Speed-limit signs
- Parking-lot signs
- Street-name signs
- Directional signs
- Construction warning signs
- Factory-road signs
- Private-road signs
- Residential-area traffic signs
- School-zone signs
- Barricades and channelizing devices
- Industrial park traffic management
- General road-safety equipment
HIP is especially useful for projects that require large quantities of signs or traffic-control products. It can offer a practical balance between visibility and purchasing cost.
- Reliable nighttime reflectivity for standard traffic environments
- Practical cost control for high-volume projects
- Suitable for many municipal and commercial applications
- Good durability when correctly installed and maintained
- Compatible with modern sign fabrication processes
- Available in common traffic-safety colors
- Appropriate for roads with lower or moderate traffic speeds
HIP sheeting should not be viewed as a basic or weak material. In many traffic applications, it provides strong and dependable performance. The main question is whether the installation location requires an additional visibility margin.
Diamond Grade Type XI sheeting is engineered for locations where visibility demands are higher. Like HIP, it uses microprismatic technology. However, its optical design is optimized to return more light to drivers across a wider range of viewing angles.
This is particularly useful when road conditions are more complex. A driver may be in an outside lane, approaching a curve, following a truck, moving through a toll plaza, or viewing an overhead sign from a long distance. In these situations, the angle between the vehicle headlights, driver's eyes, and sign surface can become more challenging.
Type XI sheeting is designed to remain highly visible in these demanding conditions.
Diamond Grade Type XI reflective sheeting is often selected for:
- Highways and expressways
- Major interchanges
- Overhead guide signs
- Lane-assignment signs
- Highway exit signs
- Toll plaza guidance signs
- Ramp and merging signs
- High-speed curve warnings
- Emergency detour signs
- Temporary traffic-control devices in complex work zones
- Truck corridors
- High-volume urban roads
- Airport access roads
- Critical safety signs in industrial facilities
- Very high retroreflective performance
- Improved visibility at wider viewing angles
- Earlier sign recognition for drivers
- Strong value for high-speed road environments
- Suitable for complicated roadway geometry
- Useful for critical decision points
- Potentially lower maintenance burden in difficult-access locations
- Better support for nighttime safety in demanding conditions
For projects where drivers need to identify information quickly, a Type XI reflective surface can provide an important visual advantage.
The most obvious difference between HIP and Type XI is brightness. However, brightness alone does not explain the full value of reflective sheeting.
The more important concept is the visibility margin.
Visibility margin means the amount of additional reflective performance available beyond the minimum level needed for a sign or safety device to be noticed.
For example, a parking entrance sign may be fully effective with HIP sheeting. Vehicles approach at low speed, viewing distances are short, and drivers usually have enough time to react.
A highway exit sign has different requirements. A driver may travel at high speed, look for lane guidance, monitor nearby vehicles, read route information, and decide whether to change lanes. In this case, stronger visibility can provide additional time for detection, recognition, and response.

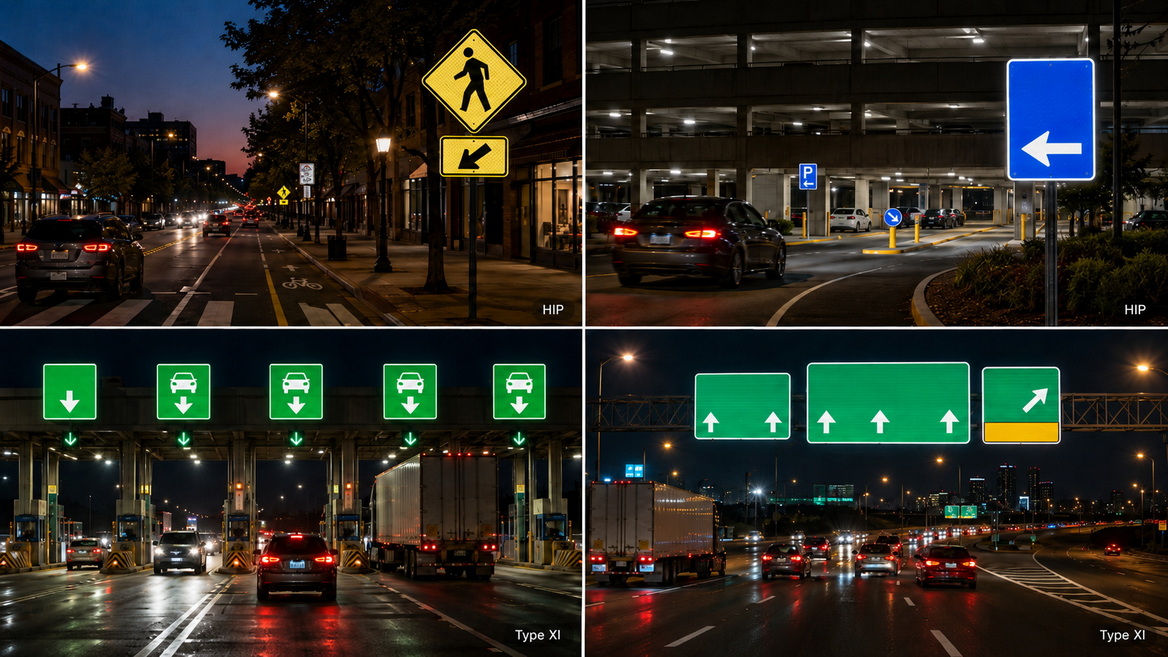

| Scenario | Typical Road Condition | Recommended Option | Main Reason |
|---|---|---|---|
| Parking facility entrance | Low speed, short viewing distance | HIP | Efficient and practical for everyday guidance |
| Factory logistics yard | Moderate speed, truck traffic | HIP or Type XI | Depends on lighting, traffic complexity, and safety risk |
| Residential street | Low speed, limited traffic | HIP | Good visibility at a controlled cost |
| Urban arterial road | Medium speed, visual clutter | HIP or Type XI | Depends on sign placement and nighttime conditions |
| Highway exit | High speed, lane decision required | Type XI | Earlier recognition and stronger nighttime visibility |
| Toll plaza approach | Multiple lanes and fast decision-making | Type XI | High visual complexity and lane guidance demands |
| Overhead guide sign | Long viewing distance and changing angles | Type XI | Stronger wide-angle performance |
| Sharp highway curve | High risk and limited reaction time | Type XI | Improved warning visibility |
The correct choice is not always the most expensive material. The correct choice is the material that gives drivers enough time and visual confidence to make a safe decision.
At night, signs and road-safety devices compete with many visual distractions. These can include commercial lighting, vehicle headlights, illuminated buildings, LED advertising displays, roadwork lamps, wet pavement reflections, and other traffic signs.
HIP sheeting can perform well in typical nighttime conditions. It is often sufficient for conventional warning signs, speed signs, local directional signs, and standard municipal traffic-control products.
Type XI sheeting usually provides a stronger reflective response. This makes it particularly useful where signs need to stand out from complex visual backgrounds.
Consider Type XI sheeting when the project includes:
- High vehicle speeds
- Long sign viewing distances
- Overhead sign placement
- Wide multilane roads
- Heavy truck traffic
- Road curves or lane shifts
- Frequent rain or fog
- High nighttime traffic volume
- Multiple signs near one decision point
- Toll plazas or controlled-access roads
- Frequent work-zone changes
- Urban environments with lighting glare
In these conditions, greater retroreflective performance can make traffic information easier to detect and understand.
Wide-angle performance is one of the most important advantages of Diamond Grade Type XI sheeting.
A sign is not always viewed directly from the front. On a wide highway, a driver may be in an outer lane while the sign is mounted above a different lane. On a curve, the sign can be viewed from an offset angle. Trucks may have different headlight and driver-eye positions compared with passenger cars.
In these cases, the relationship between the driver, vehicle headlights, and sign changes continuously.
HIP sheeting can provide good visibility across many normal viewing conditions. However, Type XI sheeting is generally more suitable for applications where viewing angles are more difficult.
- Multilane expressways
- Elevated sign gantries
- Overhead guide signs
- Highway ramps
- Curved roads
- Large roundabouts
- Toll plaza approaches
- Complex intersections
- Truck routes
- Roadwork lane-diversion zones
For these locations, Type XI sheeting can help maintain visibility when drivers approach from different lanes or positions.
HIP sheeting usually has a lower initial purchase price than Diamond Grade Type XI sheeting. For large-scale sign programs, this price difference can be significant.
However, the lowest unit price does not always create the lowest total project cost.
A more complete cost evaluation should include:
Total Project Cost=Material Cost+Fabrication Cost+Installation Cost+Traffic Control Cost+Maintenance Cost+Replacement Cost
For a roadside parking sign, replacement may be simple and inexpensive. For an overhead highway sign, replacement may require lane closure, traffic-control crews, lifting equipment, special permits, and off-peak work schedules.
In difficult-access locations, a higher-performance material may provide stronger long-term value if it helps reduce replacement frequency or supports longer service life.
- The project has a limited budget
- Traffic speeds are low or moderate
- Signs are installed at ground level
- Replacement is easy
- The roadway is not highly complex
- The application does not require maximum visibility
- Large sign quantities are needed for municipal or commercial projects
- Driver reaction time is critical
- The location has high-speed traffic
- Signs are installed overhead
- The road includes multiple lanes
- Visibility conditions are difficult
- The sign supports lane selection or route guidance
- Replacement requires lane closure or specialized equipment
- The project is safety-critical
Reflective performance changes over time. Sun exposure, rain, snow, dust, pollution, salt spray, temperature variation, cleaning methods, and physical damage can all affect the appearance and effectiveness of a sign or traffic-control device.
The material should be selected based on the installation environment.
- UV exposure
- High temperatures
- Heavy rainfall
- Snow and ice
- Coastal salt spray
- Industrial pollution
- Dust and sand
- Cleaning chemicals
- Sign orientation
- Mounting location
- Print and ink compatibility
- Adhesive quality
- Substrate condition
For OEM and ODM projects, the finished product must be evaluated as a complete system. Reflective sheeting performance can be affected by the aluminum substrate, plastic housing, printing method, protective overlay, mounting design, edge sealing, and product installation.
A high-quality film cannot compensate for poor conversion, improper installation, or low-quality base materials.

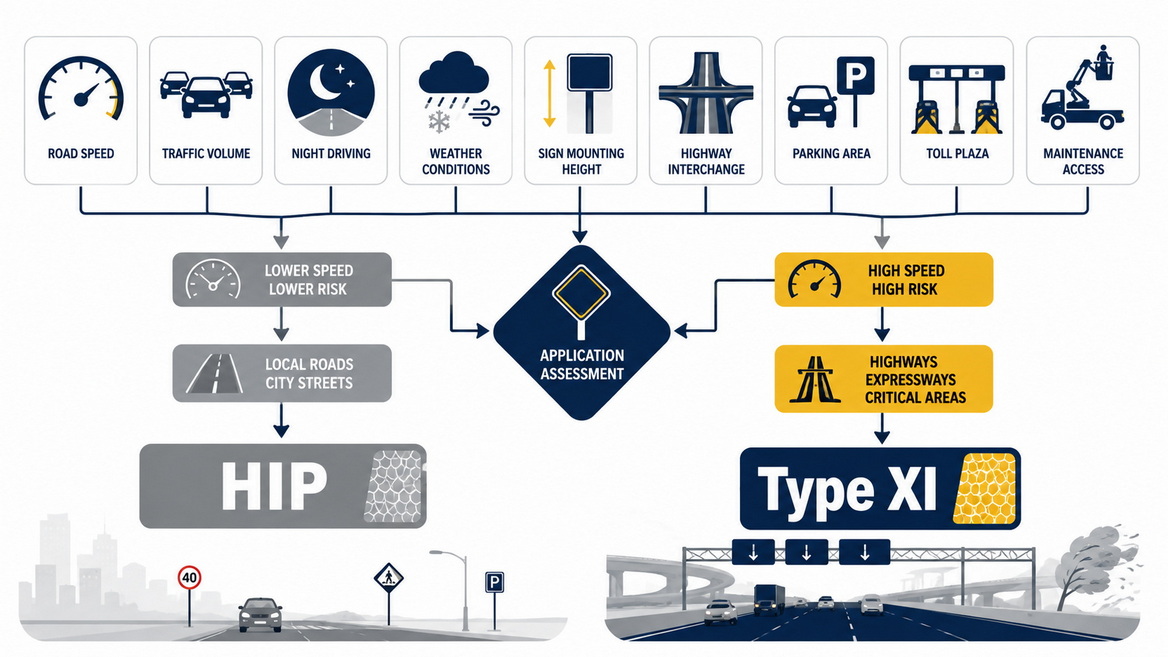

A structured selection process helps buyers avoid over-specification and under-specification.
The higher the vehicle speed, the earlier drivers need to detect and understand the sign.
For lower-speed parking areas, industrial yards, and local streets, HIP may be sufficient. For highways, ramps, toll stations, and major intersections, Type XI may be the stronger option.
Consider traffic volume, lane count, truck traffic, nighttime driving, road curvature, weather exposure, and surrounding lighting.
A straight, well-lit local street has different reflective needs than a dark highway interchange during rainfall.
Not all signs have the same importance.
A parking direction sign and a highway lane-drop warning sign should not necessarily use the same reflective grade. The more important the driver decision, the more valuable additional visibility becomes.
Look at sign height, mounting angle, distance from the travel lane, lane configuration, curve radius, and viewing direction.
Type XI is particularly relevant when drivers view the sign from wider angles.
Compare more than the roll price.
Include fabrication, logistics, installation, traffic control, maintenance, inspection, and replacement costs. This helps identify whether premium material can deliver better value over the product's service life.
Before purchasing HIP or Diamond Grade Type XI sheeting, confirm the following points with the supplier:
- Required reflective performance category
- Applicable project standards
- Color requirements
- Sign or traffic-device application
- Intended installation location
- Road speed and traffic volume
- Nighttime visibility needs
- Outdoor durability expectations
- Adhesive type
- Substrate compatibility
- Printing method
- Overlay-film requirements
- Roll width and length
- Packaging requirements
- Product traceability
- Sample approval process
- Batch-quality inspection process
- OEM logo, label, and carton customization requirements
For customized traffic-safety products, clear technical communication before mass production is essential. A supplier should understand whether the final product will be used for streets, highways, toll stations, parking facilities, industrial areas, construction sites, or export distribution.
Road reflectors, raised pavement markers, solar road studs, lane delineators, cat's eyes, and reflective safety posts are not identical to traffic signs. Their performance depends on more than the reflective material alone.
A road reflector should be evaluated according to its full product design, including:
- Lens structure
- Reflective optics
- Housing material
- Compression resistance
- Impact resistance
- Water resistance
- UV stability
- Color performance
- Adhesive or mounting system
- Road-surface compatibility
- Installation method
- Weather resistance
For example, a reflective road stud installed on a highway must resist tire pressure, vibration, rainwater, dust, and long-term outdoor exposure. In this case, the quality of the complete product system is more important than any single material specification.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. supports customers with traffic-safety product solutions for streets, highways, toll stations, parking areas, and industrial facilities. OEM and ODM requirements can be developed around application needs, product color, reflective performance, logo marking, packaging, and order quantity.
HIP and Diamond Grade Type XI sheeting both play important roles in highway safety and traffic management.
HIP reflective sheeting offers a dependable balance of visibility, durability, and cost. It is a strong choice for standard traffic signs, parking facilities, municipal roads, industrial areas, local streets, and other routine applications.
Diamond Grade Type XI reflective sheeting provides a higher level of nighttime brightness and wide-angle visibility. It is particularly suitable for high-speed highways, overhead guide signs, toll plazas, major interchanges, lane-diversion areas, sharp curves, and other locations where drivers need more time to recognize and respond to critical information.
The best solution is based on real conditions: traffic speed, road geometry, nighttime environment, sign importance, maintenance access, and the total long-term cost of the installation.
For road reflectors, traffic signs, delineators, toll-plaza guidance products, parking safety equipment, and customized traffic-safety solutions, selecting the appropriate reflective grade is an important part of building safer and more reliable transportation environments.
The main difference is performance level. HIP sheeting provides strong reflective performance for many standard traffic applications, while Type XI sheeting is designed for higher brightness and wider-angle visibility in more demanding locations such as highways, toll plazas, and overhead signs.
Yes, it can be used on local streets. However, it may not always be necessary. HIP sheeting is often sufficient for lower-speed road environments where signs are easy to see and drivers have more time to react.
Diamond Grade Type XI sheeting is generally better suited to highway exit signs because drivers need to recognize route information, select lanes, and make decisions at higher speeds.
Yes. HIP sheeting is commonly suitable for parking-lot directional signs, no-entry signs, speed-limit signs, pedestrian warnings, and internal traffic-management signs.
Type XI sheeting usually has a higher initial material cost. However, it may provide better long-term value in high-risk or difficult-access locations where visibility and maintenance costs are major considerations.
1. Federal Highway Administration. [Nighttime Visibility: Sign Retroreflectivity Frequently Asked Questions]
2. 3M Road Safety. [Comparing 3M Type IV and Type XI Sheeting]
3. Avery Dennison Reflective Solutions. [Learn Sheeting: Chapter 6—Sign Specifications]
4. Federal Highway Administration. [Manual on Uniform Traffic Control Devices]
5. ASTM International. [ASTM D4956: Standard Specification for Retroreflective Sheeting for Traffic Control]
