Traffic delineators are more than orange posts placed along a roadway. They are visual guidance devices that help drivers understand where to travel, merge, turn, slow down, or avoid restricted areas.
In highways, toll plazas, streets, construction areas, industrial parks, and parking lots, the right traffic delineator can make routes easier to follow and improve overall traffic organization. This guide explains the different types of traffic delineators, their applications, key selection factors, installation considerations, and customization opportunities for distributors, contractors, and facility managers.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. manufactures parking lot safety facilities and traffic safety products for streets, highways, toll stations, commercial properties, and industrial environments. We provide OEM and ODM services for customers seeking customized traffic delineator solutions, including materials, dimensions, colors, reflective bands, bases, packaging, and branding.
Traffic delineators are devices used to define traffic lanes, roadway edges, curves, temporary work areas, vehicle routes, and restricted zones. Their main purpose is to provide clear visual guidance, especially where drivers may otherwise be uncertain about the correct path of travel.
They are often installed in locations such as:
- Parking lot entrances and exits
- Toll-lane approaches
- Highway ramps and curves
- Lane-reduction transitions
- Roadwork areas
- Warehouse vehicle routes
- Loading zones
- Drive-through lanes
- Pedestrian separation areas
- Restricted-access sections
A properly planned delineation system helps drivers make faster decisions. It can reduce confusion at complex intersections, narrow passages, sharp curves, temporary lane shifts, and locations with limited visibility.
Drivers have less time to react when conditions are difficult. Darkness, rain, fog, glare, heavy traffic, poor road markings, and unfamiliar site layouts can all affect a driver's ability to recognize the intended route.
A traffic delineator can improve route recognition by creating a visible line or boundary. High-visibility colors and retroreflective bands make the device easier to see under vehicle headlights, particularly during nighttime operation.
However, visibility depends on more than the product itself. Effective traffic guidance requires the correct combination of:
- Appropriate product height
- Suitable reflective material
- Proper reflective-band positioning
- Consistent spacing
- Stable base design
- Clear orientation toward approaching traffic
- Regular cleaning and maintenance
A durable delineator is valuable, but a correctly placed delineator is even more important.

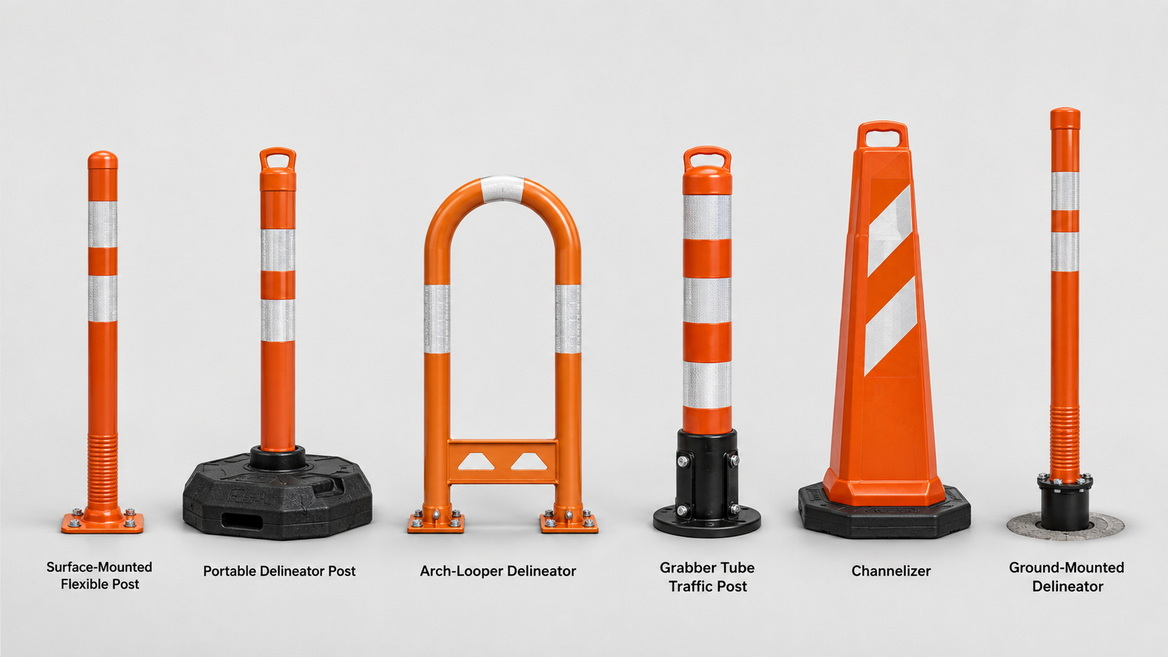

Traffic delineators are available in several formats. Each type is designed for different installation conditions, traffic speeds, operating environments, and project durations.
| Delineator Type | Installation Method | Common Applications | Main Benefit | Key Consideration |
|---|---|---|---|---|
| Surface-mounted delineator | Bolted to asphalt or concrete | Parking lots, toll stations, loading areas | Stable, long-term placement | Requires proper anchors and surface preparation |
| Flexible delineator post | Surface-mounted or base-mounted | Parking lanes, curves, merge areas | Bends after light vehicle contact | Does not provide vehicle-stopping protection |
| Ground-mounted delineator | Fixed in or near pavement | Road edges, ramps, permanent routes | Long-term roadway guidance | Installation requires planning and labor |
| Portable delineator | Weighted base or movable support | Work zones, events, temporary closures | Easy to deploy and relocate | Base stability must match site conditions |
| Arch-looper delineator | Portable base-mounted design | Pedestrian control, work areas, temporary lanes | Easy to carry and connect | Best suited to lower-impact environments |
| Grabber tube | Portable post with handle | Parking lots, temporary access control | Fast handling and placement | Requires the right base weight |
| Channelizer | Freestanding or base-mounted | Roadworks, lane shifts, traffic transitions | Highly visible vertical guidance | Requires a planned layout and spacing |
Surface-mounted delineators are installed directly onto asphalt, concrete, or other stable surfaces. They are often fixed using bolts, anchors, screws, or specialized mounting hardware.
These delineators are well suited for permanent or semi-permanent traffic layouts. They are commonly used in busy facilities where drivers need clear and consistent lane guidance every day.
Typical applications include:
- Parking-lot lane separation
- Toll-plaza traffic channels
- Drive-through lanes
- Warehouse vehicle routes
- Factory loading areas
- Vehicle inspection zones
- Charging-station lanes
- Restricted parking zones
- Commercial property entrances
Surface-mounted flexible posts are especially useful in tight turning areas. If a vehicle lightly contacts the post, the flexible body can bend and recover rather than causing immediate damage to the vehicle or the traffic device.
When selecting a surface-mounted delineator, consider pavement condition, expected vehicle contact, installation method, local weather, and access for maintenance.

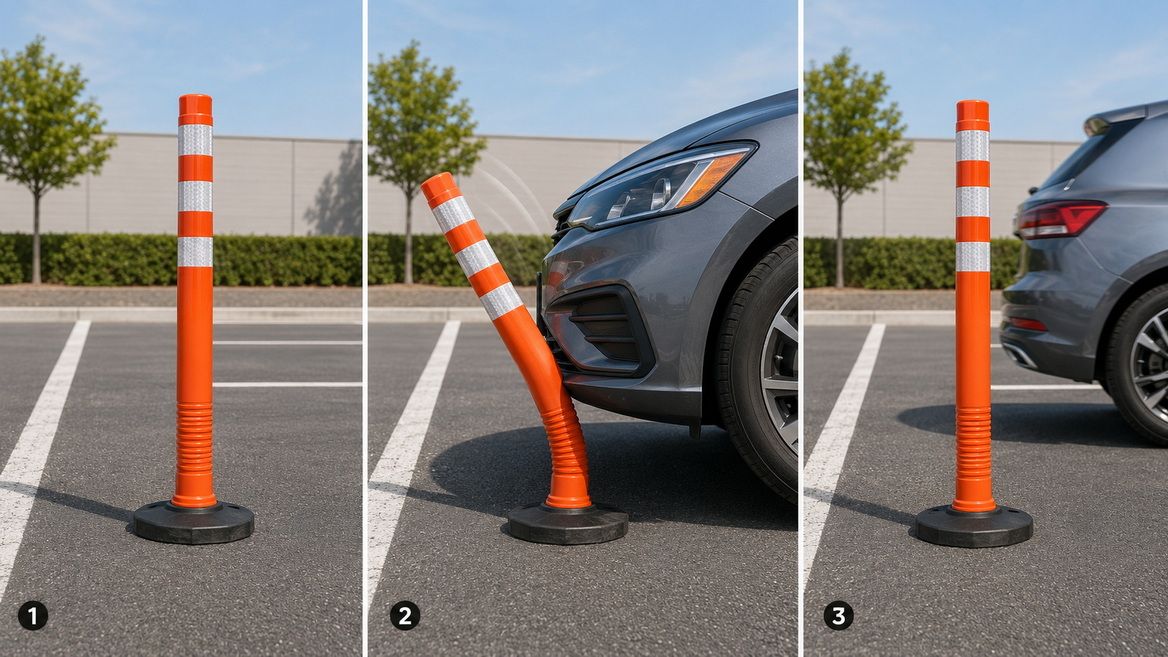

Flexible delineator posts are designed to bend when struck and return toward their original upright position. They are widely used in parking facilities, roads, toll areas, and industrial environments where light vehicle contact is possible.
Their flexibility makes them suitable for applications where lane boundaries need to remain visible without creating a rigid obstacle.
Flexible delineator posts are commonly used for:
- Parking-lot traffic organization
- Lane-dividing islands
- Toll-station approaches
- Bicycle-lane separation
- Curve guidance
- No-parking zones
- Access-road channelization
- Warehouse vehicle routes
- Restricted vehicle areas
When comparing flexible delineator posts, buyers should request clear product information on:
- Post material
- Flexibility and rebound performance
- Temperature tolerance
- UV resistance
- Reflective-band configuration
- Post height and diameter
- Base type and weight
- Mounting hardware
- Color options
- Branding and packaging options
Flexible posts guide traffic; they do not stop traffic. They should not be used as a replacement for crash barriers, guardrails, concrete barriers, or vehicle-rated bollards.
Ground-mounted delineators are intended for fixed applications where long-term route guidance is necessary. They may be embedded, anchored, or installed along pavement edges, depending on the product design and project requirements.
These products are often selected for:
- Highway ramps
- Curved access roads
- Industrial parks
- Toll-lane approaches
- Airport vehicle routes
- Logistics centers
- Long private roads
- Permanent lane boundaries
Ground-mounted delineators are especially useful where the roadway alignment changes, where edges are difficult to see, or where drivers need regular visual confirmation of the route ahead.
Before installation, project teams should confirm local traffic-device standards, roadway authority requirements, reflective-material specifications, and installation details.

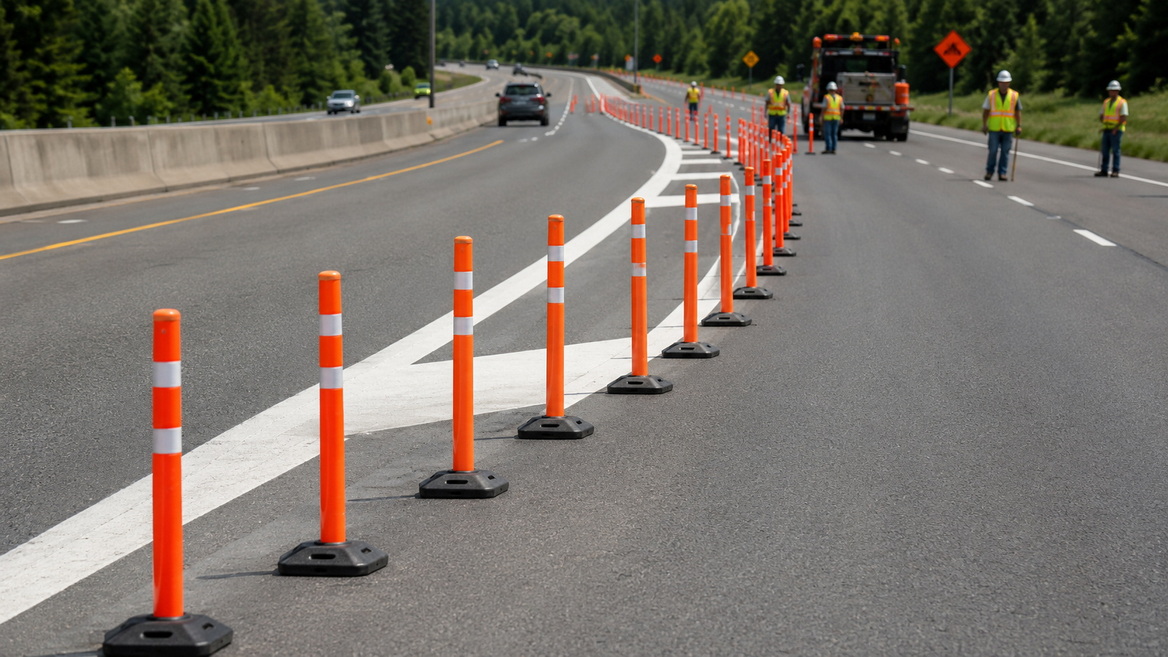

Portable delineators are designed for applications that require frequent repositioning. They are commonly used in temporary traffic control, short-duration maintenance work, parking management, emergency access control, and event operations.
Common portable products include:
- Delineator posts with rubber bases
- Arch-looper delineators
- Grabber tubes
- Channelizer posts
- Traffic-control posts with chain connections
- Temporary lane-divider systems
Portable delineators offer several practical benefits:
- Quick installation
- Simple relocation
- Reusable deployment
- Efficient storage
- Flexible traffic layouts
- Lower installation requirements than fixed devices
- Compatibility with signs, chains, caution tape, and barricade lights
For temporary operations, the product should be easy for workers to carry, position, inspect, and remove. A practical design can reduce setup time while maintaining a clear traffic route.
The correct product choice begins with the traffic challenge. Instead of selecting a post only by color, height, or price, buyers should first define how the area will be used.
Start by identifying the exact purpose of the delineator.
The device may be needed to:
- Define a traffic lane
- Mark a roadway edge
- Separate parking bays
- Guide vehicles through a curve
- Create a temporary detour
- Identify a restricted zone
- Protect a painted island
- Organize loading traffic
- Separate pedestrians from vehicle routes
- Improve visibility near a gate or toll booth
A delineator is most effective when its purpose is clear. If the area requires physical vehicle control or impact resistance, another safety product may be necessary.
Permanent layouts usually benefit from surface-mounted or ground-mounted delineators. These products provide reliable positioning and help maintain a consistent traffic pattern.
Portable delineators are better suited to changing conditions. They are useful for temporary lane closures, maintenance projects, seasonal parking arrangements, event traffic plans, and emergency access routes.
For example, a logistics facility may install flexible delineator posts around permanent loading lanes while keeping portable posts available for temporary truck-routing changes.
Traffic speed affects how a delineator should be selected and installed. Higher-speed roads require greater visibility, more careful placement, and products that meet the project's applicable performance requirements.

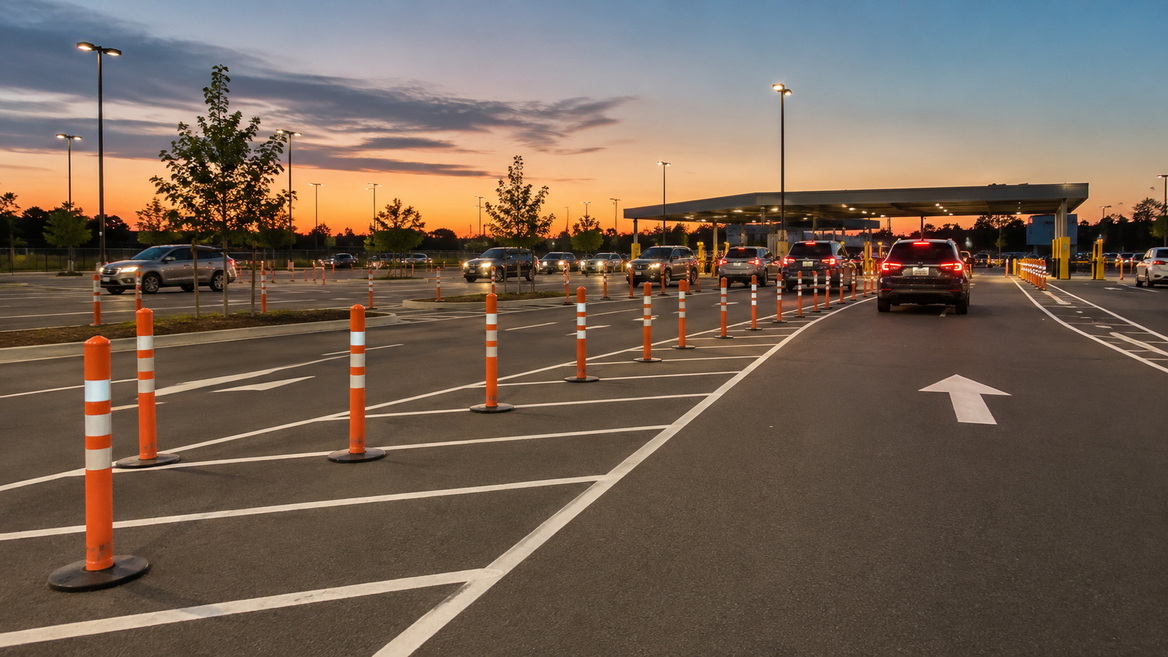

For lower-speed parking lots and commercial facilities, flexible delineators may help reduce damage from minor vehicle contact while maintaining lane visibility.
For high-speed roads, work zones, and public infrastructure projects, buyers should confirm all required product testing, approval, crashworthiness documentation, and local authority acceptance before placing an order.
Reflective bands are essential for applications involving nighttime driving, low lighting, rain, or poor weather conditions. They help drivers identify the location of the delineator when illuminated by vehicle headlights.
When specifying reflective material, consider:
- Reflective sheeting grade
- Band width
- Number of reflective bands
- Reflective color
- One-sided or two-sided reflection
- Band orientation
- Daytime visibility
- Expected service life
- Cleaning and replacement needs
The reflective panel must face approaching traffic. Even a high-quality reflective strip will not perform properly if it is positioned in the wrong direction.
For portable delineators, base selection is one of the most important decisions. The base must provide enough stability without creating unnecessary handling difficulties or excessive freight cost.
The right base depends on:
- Post height
- Wind exposure
- Vehicle turbulence
- Surface type
- Frequency of relocation
- Expected traffic contact
- Storage limitations
- Shipping efficiency
| Application Environment | Suitable Base Approach |
|---|---|
| Indoor warehouse | Lightweight base or fixed mounting |
| Outdoor parking lot | Heavy rubber base or surface-mounted post |
| Open, windy location | Heavier base with strong stability |
| Temporary maintenance area | Portable base designed for fast deployment |
| Toll plaza | Surface-mounted flexible post with suitable anchors |
| Roadwork lane transition | Channelizers or portable delineators arranged according to the traffic plan |
A quality delineator can lose its value if it is installed incorrectly, placed inconsistently, or left unmaintained. Product performance depends on the entire installation system.
Drivers recognize patterns quickly. A clear line of evenly spaced delineators helps create a predictable route. Random spacing can make the route difficult to read, especially at night or in poor weather.
Spacing should become closer where drivers need more guidance, including:
- Curves
- Ramps
- Lane reductions
- Merge zones
- Toll-lane approaches
- Temporary work-zone transitions
- Narrow parking-lot exits
Always follow the approved project plan and applicable local requirements for roadway applications.
Dirt, oil, dust, snow, and faded surfaces can reduce visibility. Reflective bands should be checked regularly, especially in construction zones, industrial facilities, and outdoor parking areas.
Routine inspection should include:
- Checking for cracked or bent posts
- Cleaning reflective bands
- Replacing damaged film
- Tightening loose anchors
- Confirming correct post orientation
- Replacing missing or damaged bases
- Checking whether posts are leaning
- Reviewing lane changes after site modifications
Traffic delineators are guidance products. They help drivers see and understand a route, but they are not designed to stop vehicles.
Where there is a risk of severe vehicle impact, use suitable protective products such as:
- Vehicle-rated bollards
- Guardrails
- Concrete barriers
- Steel barriers
- Crash cushions
- Temporary traffic barriers
- Engineered pedestrian-protection systems
The right safety product should match the actual level of risk.
Standard products may be suitable for basic projects, but customized traffic delineators can help distributors and contractors meet market-specific requirements, strengthen product differentiation, and improve packaging efficiency.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. provides OEM and ODM support for traffic safety facilities used in parking lots, streets, highways, toll plazas, construction projects, and industrial environments.
Available customization possibilities may include:
- Custom post heights and diameters
- Flexible or rigid post materials
- Custom colors
- Reflective-band design
- One-sided or two-sided reflective panels
- Logo printing or labels
- Molded branding
- Base shape and weight
- Customized retail packaging
- Barcode and carton-marking solutions
- Bulk export packaging
- Pallet-loading optimization
- Product combinations with traffic cones, chains, signs, and barricade accessories
For a customized project, the most useful information to prepare includes the target market, intended application, expected order quantity, required dimensions, preferred material, reflective requirements, branding instructions, and packaging expectations.
Traffic delineators help create clearer, more organized, and more visible traffic routes. They are widely used in parking facilities, highways, toll stations, industrial sites, roadwork zones, and commercial properties.
The most suitable delineator depends on the installation environment, traffic speed, visibility requirements, expected vehicle contact, project duration, mounting method, and local requirements. Flexible posts are useful for light-contact areas, fixed delineators support long-term guidance, and portable models offer fast deployment for changing traffic conditions.
A well-planned delineator system combines the right product, suitable reflective material, stable mounting or base design, consistent spacing, and regular maintenance. When these elements work together, drivers receive clearer guidance and facility operators gain a safer, more manageable traffic environment.
For parking lot safety facilities, traffic delineator posts, flexible channelizers, portable lane-control products, and customized road safety solutions, Shenzhen Xingsheng Traffic Facilities Co., Ltd. can support OEM and ODM product development based on your application and market requirements.
A traffic cone is commonly used for temporary warnings, hazards, and short-term traffic control. A traffic delineator is mainly used to guide drivers along a roadway edge, lane path, curve, merge area, or restricted route. Both products can be used together in temporary traffic-management projects.
Yes. Flexible delineator posts are widely used in parking lots because they provide visible lane guidance and can bend after minor vehicle contact. They are suitable for parking-lane separation, corners, drive-through routes, loading areas, and no-parking zones.
No. Flexible delineator posts are designed for traffic guidance and visual separation. They do not provide the impact resistance required to stop a vehicle. Vehicle-rated bollards or barriers should be used where physical protection is needed.
The best base depends on the post height, wind conditions, traffic turbulence, surface type, expected movement, storage needs, and freight requirements. Heavy rubber bases are often selected for outdoor applications, while lighter bases may be suitable for indoor or low-wind conditions.
Reflective bands are strongly recommended for nighttime, low-light, rainy, and poor-visibility applications. The reflective material should be selected according to the intended environment, local requirements, and direction of approaching traffic.
1. Federal Highway Administration. Manual on Uniform Traffic Control Devices for Streets and Highways https://mutcd.fhwa.dot.gov/
2. Federal Highway Administration. MUTCD 2009 Edition, Chapter 3F: Delineators https://mutcd.fhwa.dot.gov/htm/2009/part3/part3f.htm
3. Federal Highway Administration. Frequently Asked Questions: Work Zone Traffic Control Devices https://highways.dot.gov/safety/rwd/reduce-crash-severity/faqs-work-zone-traffic-control-devices
4. National Academies of Sciences, Engineering, and Medicine. Crashworthy Work-Zone Traffic Control Devices https://nap.nationalacademies.org/catalog/23283/crashworthy-work-zone-traffic-control-devices
5. Federal Highway Administration. Work Zone Safety and Mobility and Temporary Traffic Control Devices https://workzonesafety-media.s3.amazonaws.com/workzonesafety/files/documents/training/fhwa_wz_grant/instructor_guide.pdf
6. TrafficConesForLess. How to Distinguish Between Different Types of Traffic Delineators https://www.trafficconesforless.com/blog/post/how-distinguish-between-different-types-traffic-delineators
