For road authorities, contractors, and buyers, the central question is not simply whether an LED pedestrian crossing sign is bright. It is whether the complete crossing design—including the location, signs, beacon, controls, accessibility features, and maintenance plan—fits the applicable requirements.
This article focuses on U.S. projects. Requirements in other countries may differ, and equipment intended for export must be evaluated against the rules of its destination market.
The *Manual on Uniform Traffic Control Devices* (MUTCD) establishes national standards for traffic control devices on applicable U.S. roads. RRFBs appeared in federal guidance through interim approvals before becoming part of Chapter 4L of the 11th Edition.
That history is useful, but it is not the document a project team should rely on when approving a new installation. As of September 2026, the official current publication is the 11th Edition with Revision 1, dated December 2025. Designers should also check the applicable state-adopted manual, supplements, and road-owner specifications.
An RRFB is a warning device, not a pedestrian traffic signal. Its flashing lights draw attention to a crossing; they do not display a WALK indication or guarantee that a driver will yield. A suitable design must still address approach speeds, sight distance, the number of lanes, crossing length, pedestrian needs, and any history of conflicts.
Chapter 4L permits RRFBs to supplement specified pedestrian, school, and trail crossing warning signs at marked crosswalks across uncontrolled approaches. For a post-mounted installation, the eligible crossing signs are W11-2, S1-1, and W11-15, used with a W16-7P diagonal downward arrow plaque. The chapter also addresses eligible overhead-mounted assemblies.
An RRFB is not a stand-alone pair of flashing lamps. The sign and beacon must form an approved assembly at or immediately adjacent to the crossing.
| Crossing condition | What to verify |
|---|---|
| Uncontrolled pedestrian crossing | Confirm that the crosswalk is marked and the proposed warning sign is eligible. |
| School crossing | Check the school crossing sign, plaque, placement, and agency requirements. |
| Trail crossing | Confirm the trail crossing assembly and account for both pedestrians and bicyclists. |

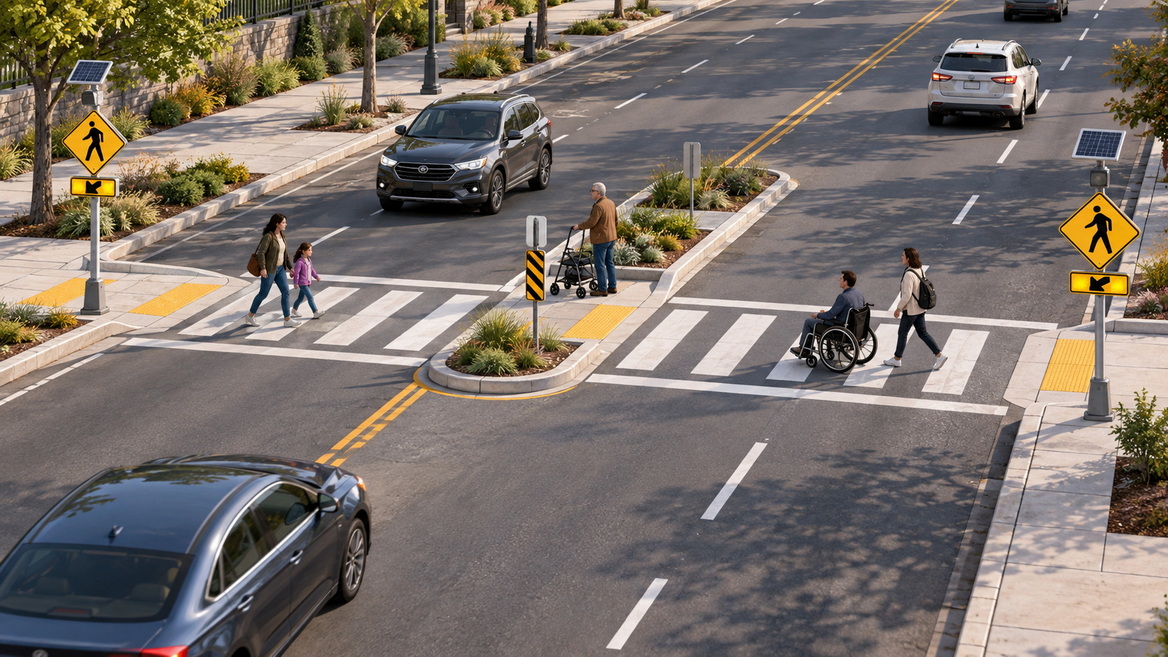

| Multilane road | Evaluate visibility from every lane, crossing distance, speed, and the need for a refuge or another treatment. |
| Roundabout crossing | Review the specific application exception and assess entry and exit movements separately. |
| Signal-, STOP-, or YIELD-controlled approach | Do not assume an RRFB is permitted; review the limited exceptions in Chapter 4L. |
In general, RRFBs are not used across approaches controlled by traffic signals, pedestrian hybrid beacons, STOP signs, or YIELD signs. Chapter 4L provides limited exceptions for crosswalks at roundabout approaches or exits and for certain free-flow turn lanes separated by a channelizing island.
The manual also allows an additional advance RRFB under specified conditions. An advance assembly supplements the beacon at the crossing; it does not replace it.
A beacon improves conspicuity, but it cannot correct every crossing problem. If vehicle speeds are high, gaps are scarce, visibility is obstructed, or pedestrians must cross several lanes without refuge, the project team should compare other measures.
Depending on the location, those measures may include improved lighting, parking restrictions, curb extensions, a pedestrian refuge island, changes to road geometry, or a pedestrian hybrid beacon. The responsible traffic engineer should select the treatment before the purchasing team selects the product.

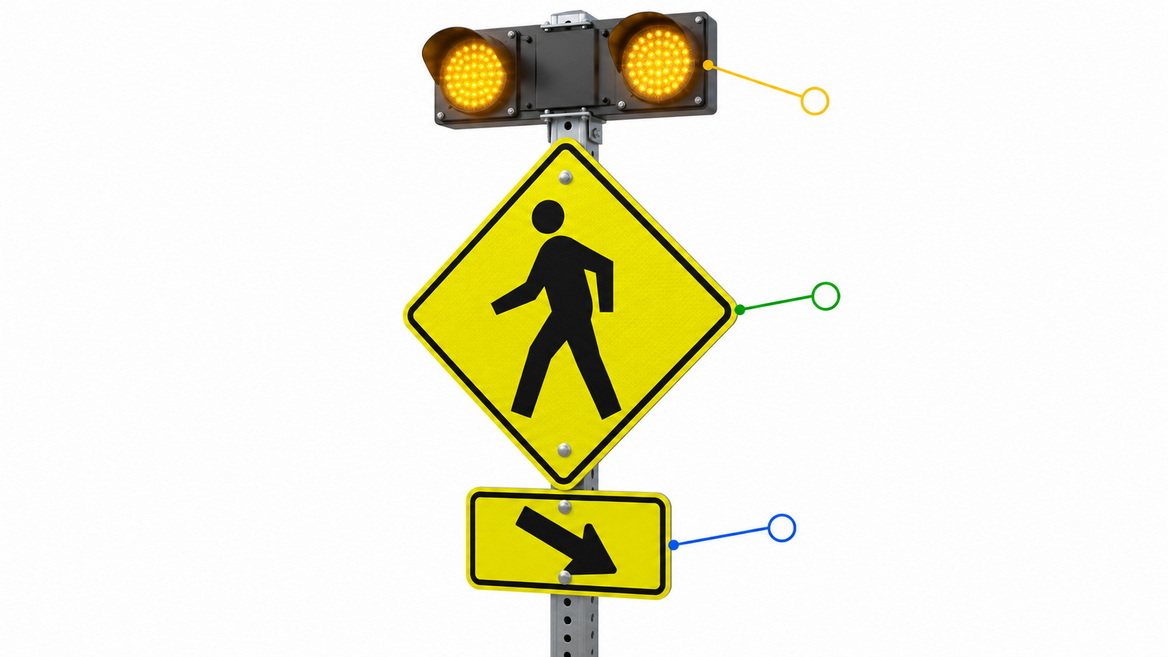

An "LED traffic sign" is not automatically an RRFB. A quotation for a U.S. crossing should describe an integrated sign-and-beacon system that can be checked against the approved plans.
| Design element | Key point to check |
|---|---|
| LED indications | Each RRFB unit has two horizontally aligned, rectangular yellow LED indications. |
| Minimum indication size | Each indication is at least 5 inches wide and 2 inches high. |
| Spacing | The indications have at least 7 inches between their nearest edges. |
| Sign relationship | The unit supplements an eligible crossing warning sign and does not extend beyond that sign’s outside edges. |
| Post-mounted placement | An approach using post-mounted signs has assemblies on both the right and left sides of the roadway at the crosswalk. |
| Activation | The beacon is normally dark and begins operating when an appropriate pedestrian detector actuates it. |
| Coordination | RRFB units associated with the same crosswalk begin and end flashing together. |
| Push-button instruction | Where a pedestrian push button is used, the required R10-25 instructional sign is installed beside it. |
These checks are a starting point, not a complete construction specification. Mounting details, light intensity, the activation period, and other provisions also require review.
An RRFB controller must do more than switch two amber lights on and off. Chapter 4L specifies a rapid sequence of 75 flashing sequences per minute, with defined timing for the individual indications.
A product advertised only as having an "alternating flash" should therefore be tested against the specified sequence. Ask for controller documentation or a demonstration rather than assuming that a similar-looking pattern is acceptable.
The Federal Highway Administration identifies RRFBs as a proven safety countermeasure. Its published summary reports up to 47% fewer pedestrian crashes and motorist yielding rates as high as 98% in the research it cites.
Those numbers are not a promise for every site. Driver response varies with conditions such as speed, lane count, crossing distance, roadway direction, and time of day. A crossing with poor sight lines or heavy, fast-moving traffic may need additional changes even if its beacon operates correctly.
It is also important to keep two measures separate. A yielding rate describes observed driver behavior. A crash-reduction estimate describes a different safety outcome. Neither figure means an RRFB makes a crossing risk-free.
For a new installation, the more useful approach is to measure local performance. Record driver yielding and pedestrian delay before construction. After installation, repeat observations under comparable conditions and check whether drivers respond from each approach and lane.
Begin with a documented site review. At minimum, collect:
- Posted and observed vehicle speeds.
- Traffic volume and number of lanes.
- Crosswalk length and available refuge space.
- Daytime and nighttime visibility.
- Pedestrian and bicyclist demand.
- Nearby schools, trails, transit stops, driveways, and parking activity.
- Crash history and observed conflicts.
- Existing signs, lighting, curb ramps, and pavement markings.
These details help the designer decide whether an RRFB addresses the main problem. For example, a crossing near a parking facility may have relatively low speeds but poor visibility because parked vehicles block the view between drivers and pedestrians. Moving parking away from the crossing or improving the crossing location may be more fundamental than increasing the beacon's brightness.
The beacon's flash is directed primarily at drivers. A pedestrian with vision loss may need confirmation that the device has activated. Chapter 4L recommends an audible information device with RRFBs and specifies how it must operate when one is provided.
Accessibility also extends beyond the beacon. Review the location of push buttons or passive detectors, the continuous pedestrian route, curb ramps, detectable warnings, and any refuge island. At a multilane roundabout, examine each crossing segment rather than assuming that a flashing beacon alone resolves the accessibility challenge.
Solar power can avoid a wired utility connection, but panel and battery selection must reflect the installation. Shading, mounting orientation, seasonal sunlight, expected activations, and access for maintenance all affect the design.
A standard solar package may be appropriate for one location and unsuitable for another. Request a site-specific power assessment, particularly where poles sit beneath trees, beside tall buildings, or in regions with limited winter sunlight.
Use the following sequence to compare proposals and prepare agency review:
1. Confirm the governing documents. Identify the current federal manual, applicable state provisions, owner standards, and approval process.
2. Approve the crossing treatment. Have the responsible engineer determine whether an RRFB is appropriate at the proposed location.
3. Check the sign schedule. Verify sign codes, plaques, assembly positions, and visibility on the project drawings.
4. Review the beacon design. Confirm indication dimensions, spacing, housing width, mounting, and daytime light performance.
5. Test the controls. Verify actuation, normally dark operation, the specified flash pattern, simultaneous operation, and the designed flash duration.
6. Check accessibility. Review detector access, audible information, curb ramps, refuge features, and the complete pedestrian route.
7. Plan commissioning. Define who will inspect, test, and approve the installed system.
8. Assign maintenance responsibility. Include cleaning, detector checks, power-system inspection, fault response, and replacement parts.
Comparing only unit price can obscure differences that matter after installation. Two proposals may look similar in a product photograph but differ in controller capability, synchronization, mounting details, documentation, or service access.
For a customized project, provide the manufacturer with more than a request for "solar LED crossing signs." Share the approved crossing layout, destination market, governing specifications, sign schedule, number of approaches, mounting arrangement, activation method, power conditions, and any accessibility-related requirements.
The resulting proposal should identify what is included and what remains the responsibility of the designer or installer. Useful submittals may include dimensioned assembly drawings, controller-operation details, electrical information, installation instructions, and a maintenance plan.
A manufacturer can supply and adapt equipment. It should not replace the traffic engineer or road authority responsible for deciding whether the proposed device and crossing design are suitable.
The MUTCD treats an RRFB as part of a complete pedestrian crossing system, not as a stand-alone LED product. The strongest projects start with a sound location assessment, use the correct warning-sign assembly, verify the beacon's operation, and address accessibility and long-term maintenance.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. provides LED traffic signs and other traffic-safety products, with OEM and ODM options. To discuss an RRFB-related project, send your crossing drawings, destination market, road conditions, agency specifications, preferred activation method, and power requirements. These details make it possible to discuss an equipment configuration that the responsible engineer and road authority can evaluate.
Yes. RRFB provisions appear in Chapter 4L of the 11th Edition. For a current U.S. project, consult the official 11th Edition with Revision 1, dated December 2025, and the applicable state and agency requirements.
No. Chapter 4L limits where RRFBs may be used and which warning signs they can supplement. The crossing and approach must be reviewed before equipment is specified.
No. An RRFB warns approaching drivers; it does not show a WALK indication. Pedestrians still need an appropriate opportunity to cross, and the overall design must suit the road conditions.
Yes. Solar power can be used where the system is properly designed for the site. Battery capacity, panel position, shade, climate, and maintenance access should be assessed before ordering.
RRFB units associated with the same crosswalk must begin and end flashing together when activated. Synchronization should be demonstrated during commissioning.
1. Federal Highway Administration. [*11th Edition of the MUTCD with Revision 1, December 2025*]. Official current-edition page and access to the manual. [mutcd.fhwa.dot]
2. Federal Highway Administration. [*Rectangular Rapid Flashing Beacons (RRFB)*]. Applications, considerations, and summarized safety findings. [highways.dot]
3. Missouri Department of Transportation. [*Engineering Policy Guide 902.12: Rectangular Rapid Flashing Beacons*]). Detailed application, design, and operation provisions; final project specifications should be checked against the official current federal manual and applicable state rules. [mutcd.fhwa.dot]
4. Federal Highway Administration. [*Field Guide for Selecting Countermeasures at Uncontrolled Pedestrian Crossing Locations*]. Site assessment and countermeasure-selection guidance. Its discussion of interim approval reflects its publication period. [highways.dot]
5. U.S. Access Board. [*Public Right-of-Way Accessibility Guidelines*]. Pedestrian access routes and pedestrian-activated warning devices. [access-board]
6. Carmanah Technologies. [*What the MUTCD Says About RRFBs*]. May 28, 2024. Historical background used as the starting point for this rewritten article. [carmanah]
