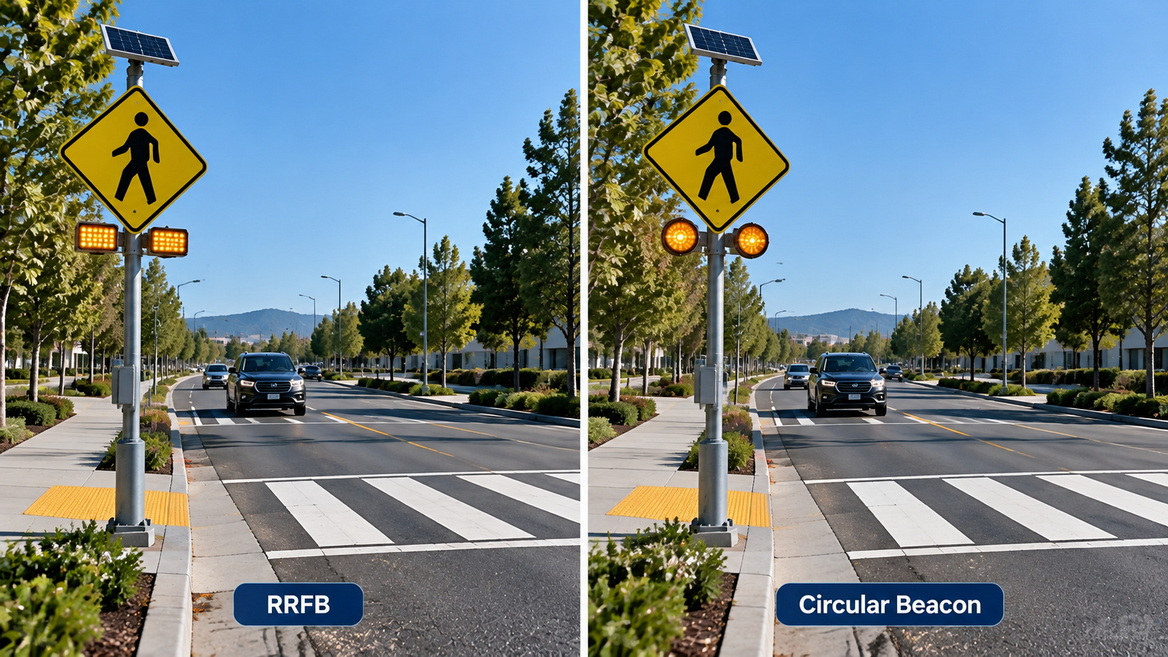

RRFBs vs. circular crosswalk beacons is more than a comparison of rectangular and round lights. It is a decision about pedestrian visibility, driver response, installation requirements, and long-term maintenance. For suitable uncontrolled marked crosswalks, rectangular rapid-flashing beacons offer a well-supported warning treatment. However, research does not support the blanket claim that a rectangular housing always performs better than a circular one. Flash pattern and operating conditions matter.
From a manufacturer's perspective, I would begin with the crossing rather than the product catalog. The right LED traffic warning lights must match the roadway, the approving authority's requirements, and the buyer's maintenance capabilities.
This guide compares the two technologies and provides a practical purchasing framework for municipalities, contractors, distributors, and infrastructure developers.
The most important distinction is between conventional circular flashing beacons and circular rapid-flashing beacons. They are not interchangeable comparison categories.
| Comparison factor | Rectangular rapid-flashing beacons | Conventional circular crosswalk beacons |
|---|---|---|
| Light configuration | Two rectangular yellow LED indications | Circular yellow warning indications |
| Flashing behavior | Prescribed rapid-flashing sequence | Conventional flashing operation |
| Typical purpose | Emphasize pedestrian, school, or trail crossings | Provide supplemental warning under the applicable design |
| Activation | Pedestrian-actuated for crosswalk applications | Depends on the approved application |
| Evidence | Strong evidence of improved driver yielding | Lower yielding than RRFBs in a limited direct comparison |
| Purchasing priority | Complete system conformity and site suitability | Application-specific conformity and operating requirements |
These differences describe typical configurations, not universal performance rankings. A circular beacon using an experimental rapid-flashing pattern is a different treatment from a conventional circular flasher.
Rectangular rapid-flashing beacons, commonly called RRFBs, use two rectangular yellow LED indications to draw drivers' attention to a marked crossing.
They supplement crossing warning signs rather than replace them. Their rapid flashing increases conspicuity when a pedestrian activates the system.
An RRFB is not a conventional traffic signal. Its yellow warning indications do not provide the same red stop display as a pedestrian hybrid beacon or traffic signal. Drivers and pedestrians must still respond appropriately to the crossing and applicable traffic laws.
Typical applications include:
- Uncontrolled marked pedestrian crossings.
- School crossings.
- Trail crossings.
- Selected multilane roadway crossings.
FHWA identifies RRFBs as particularly effective at multilane crossings with speed limits below 40 mph. That description is an application guide, not permission to install them at every road below that speed. Crossing distance, sight lines, lane configuration, and pedestrian needs still require assessment.
For buyers, the key question is not simply, "Can we install brighter lights?" It is, "Will this warning treatment adequately address the conditions at this crossing?"
Circular crosswalk beacons use round warning lights to emphasize a crossing or associated warning sign.
However, the phrase covers different operating arrangements. A conventional circular beacon and a circular rapid-flashing beacon may have similar housings but produce different visual messages.
That distinction matters when evaluating supplier claims. A statement that "rectangular lights outperform circular lights" may actually compare two systems with different flash patterns, mounting arrangements, or activation methods.
A conventional circular flasher uses ordinary warning-beacon operation.
A circular rapid-flashing beacon, or CRFB, uses circular indications with a rapid-flashing pattern. Researchers have tested CRFBs to investigate whether shape independently affects driver yielding.
Those experimental findings do not establish that a circular rapid-flashing product can be substituted for a prescribed RRFB assembly. Research performance and installation authorization are separate questions.
The practical benefit of a crosswalk beacon is not that drivers notice a light. It is that drivers respond to pedestrians.
A 2010 federal study included a direct comparison at two locations.
At one site, activating a conventional overhead yellow beacon produced 15.5% driver yielding. Introducing a two-beacon RRFB system increased yielding to 78.3%.
At the second site, an activated conventional side-mounted beacon produced 12% yielding. The two-beacon RRFB treatment produced 72%.
These results support RRFBs over the conventional flashing treatments evaluated at those locations. However, two sites cannot establish a guaranteed performance difference for every roadway.
A separate study compared rectangular and circular beacons using the same rapid-flashing pattern at 12 sites.
Average daytime yielding was 59% for RRFBs and 63% for CRFBs. Statistical analysis found no significant difference between the shapes.
The useful takeaway is context: rapid flashing, activation, installation, and roadway conditions deserve more attention than housing geometry alone.
FHWA reports that RRFB installations can achieve driver yielding rates as high as 98%.
That is an upper observed result, not a guaranteed outcome or a universal average. Performance varies with speed, lane count, crossing distance, roadway direction, and other site conditions.
Yielding percentages also measure driver behavior. They should not be presented as equivalent percentages of crash reduction.

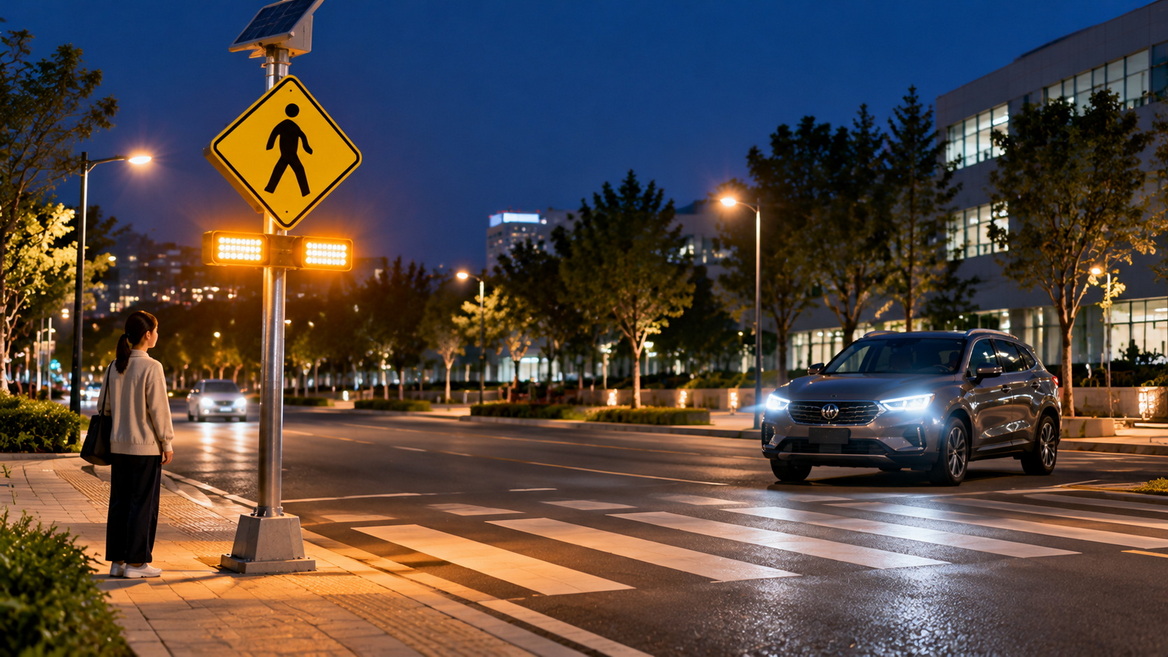

A purchasing specification that requests only "maximum brightness" overlooks an important tradeoff.
Warning lights must attract attention, but drivers must also see the pedestrian near them.
Research into beacon visibility found that discomfort glare increased as brightness increased. The study also identified differences in object-detection distance among tested assemblies.
The resulting purchasing lesson is to request appropriate photometric performance and installation guidance, not simply the largest LED count or the highest advertised brightness.
Ask the supplier to explain:
- How light output is measured.
- Which photometric requirements the proposed configuration meets.
- How the lights should be aimed.
- Whether nighttime output control is available and permitted.
- What evidence supports the complete assembly.
These are procurement questions rather than claims about any particular product. A qualified reviewer should connect the answers to the project specification.
For U.S. projects, checking an older brochure is not enough.
The current federal manual is the MUTCD 11th Edition with Revision 1, effective March 5, 2026. Buyers should also verify the requirements adopted by the relevant state and road authority.
RRFB requirements address more than rectangular LED modules. They include permitted applications, associated signs, activation, and operation.
For example, RRFBs are normally dark and initiate operation upon pedestrian actuation. Their use at approaches controlled by stop signs, yield signs, or signals is restricted, with specified exceptions. A product should not be described as suitable for every intersection.
For international projects, the destination jurisdiction's requirements govern. U.S. research can inform evaluation, but it does not replace local approval.

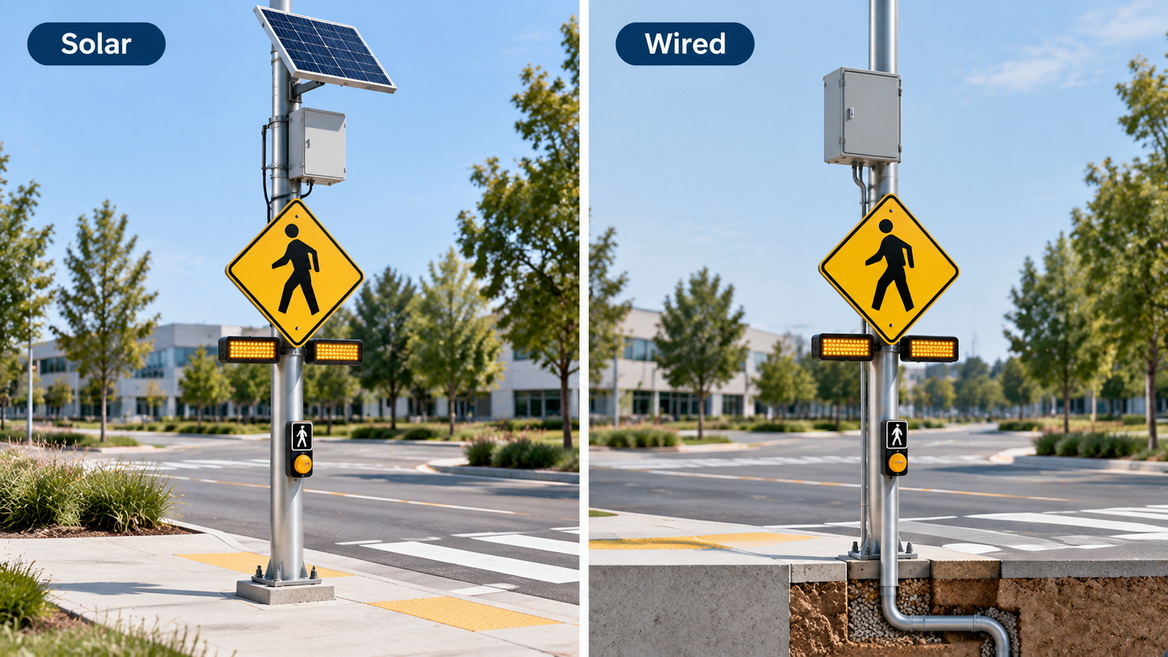

Both power options should be assessed through an installation-specific design.
For a solar proposal, request a documented energy budget covering:
- Daily activation assumptions.
- Flashing duration.
- Available solar exposure.
- Seasonal shading.
- Battery capacity and replacement planning.
For a wired proposal, request details of the power connection, civil works, protection arrangements, and maintenance access.
I would avoid selecting solar solely to eliminate trenching or selecting wired power solely to avoid batteries. Ask each bidder to show how the proposed configuration meets the same operational requirements.
This makes competing quotations easier to compare and exposes assumptions before installation.
The beacon's unit price is only one part of the project.
A useful bid comparison should include:
1. Warning lights and controllers.
2. Signs, poles, mounting hardware, and foundations.
3. Activation equipment.
4. Power equipment and connections.
5. Freight and installation.
6. Inspection, commissioning, and maintenance.
7. Replacement parts and warranty arrangements.
This checklist is a purchasing framework, not a claim that one beacon type always costs less.
A lower equipment quotation may exclude essential components. Conversely, a more expensive package may include services the buyer does not need.
Request a common scope of supply before comparing prices. Where possible, compare ownership costs over the same period and under the same maintenance assumptions.
Document speeds, lanes, crossing distance, pedestrian demand, visibility, and nearby control devices.
Do not begin with a preferred housing shape.
Have the responsible engineer or authority determine whether supplemental warning beacons are appropriate.
RRFBs should not be treated as a substitute for every stronger crossing treatment. Their documented applications have limits.
Include the required flash operation, activation method, signs, mounting arrangement, power design, environmental requirements, and acceptance documentation.
Separate laboratory reports, field observations, product specifications, and supplier opinions.
Ask whether each document applies to the exact configuration offered.
Agree on commissioning checks before ordering. Then consider consistent before-and-after observations of driver yielding.
Record the observation conditions so that changes in weather, traffic, or pedestrian presentation do not become misleading product claims.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. is a Chinese manufacturer focused on LED traffic warning lights and traffic safety products, with OEM and ODM services for customer projects.
For custom procurement, the most useful starting point is a clear requirements package.
Potential discussion areas include:
- Housing dimensions and mounting interfaces.
- Electrical connections.
- Controller functions.
- Project-specific labeling and packaging.
- Power-system requirements.
- Documentation and spare-parts planning.
Customization must not undermine prescribed traffic-control characteristics. A requested appearance or controller change should be reviewed against the destination project's requirements.
The company background alone does not establish a particular certification, field performance result, or approved RRFB configuration. Buyers should request supporting documentation for the actual product offered.
RRFBs substantially outperformed conventional circular flashing treatments in a limited direct comparison. However, research using the same rapid-flashing pattern found no significant yielding difference between rectangular and circular shapes. Define the circular system before comparing performance.
No. RRFBs increase conspicuity and can improve yielding, but reported results vary. Even a high observed yielding rate does not guarantee that every approaching driver will respond.
Do not assume so. Similar experimental performance does not establish conformity with prescribed RRFB requirements. The responsible authority must approve the proposed device and installation.
Not automatically. FHWA highlights their effectiveness at multilane crossings below 40 mph. Higher-speed or otherwise challenging crossings require project-specific evaluation rather than reliance on a beacon's advertised brightness.
Request the exact configuration, drawings, applicable test evidence, operating description, power calculations, warranty terms, and replacement-parts information. Ask which documents support the offered assembly rather than a different model.
