As a traffic safety professional working with LED traffic signs and highway projects, I have seen one pattern over and over again: collisions and near misses often happen not because signs are missing, but because drivers do not truly understand what those signs mean at a glance. Traffic sign shapes are a visual language that allows drivers to react in seconds, long before they can read any text.
In this guide, I will walk you through the core shapes and meanings of traffic signs, show how LED technology is transforming their visibility and effectiveness, and share practical insights from real roadside projects worldwide.

A traffic sign (or road sign) is a standardized board installed on or beside the roadway to communicate critical information such as regulations, warnings, guidance, or restrictions. Its shape, color, symbol, and lighting work together to trigger a fast, almost automatic response in the driver's brain.
From a design standpoint, sign shapes are not arbitrary. In standards such as the MUTCD and similar regulations worldwide, each shape is reserved for a particular category of message so drivers can recognize it even in bad weather, at high speed, or when text is obscured. With modern LED traffic signs, that same shape is now backed by high‑intensity, energy‑efficient illumination that significantly improves nighttime and low‑visibility performance.

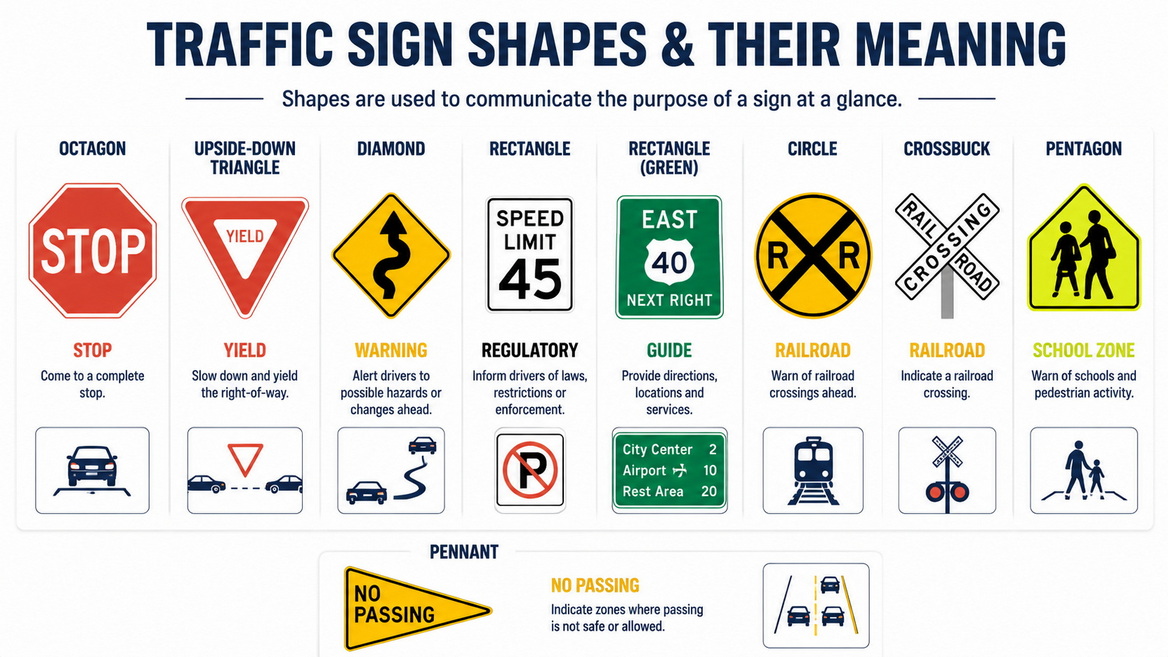

Different traffic sign shapes are associated with broad categories of meaning.
| Shape | Typical Use Category | Core Driver Message |
|---|---|---|
| Octagon | Stop | Come to a complete stop |
| Equilateral triangle | Yield | Slow, check, give right of way |
| Diamond | Warning | Hazard or change in road conditions ahead |
| Rectangle / square | Regulatory & guide | Rules, speed, parking, directions, information |
| Circle | Railroad advance warning | Train crossing ahead – prepare to stop |
| Crossbuck (X) | Railroad crossing location | You are at the tracks – extreme caution |
| Pennant (sideways) | No passing zone | Do not overtake in this zone |
| Pentagon | School / pedestrian area | Children or school crossing nearby |
Understanding these categories is the foundation for safe driving and effective road design.
Diamond‑shaped signs are reserved for warning messages. These signs indicate that you are approaching a condition that requires extra attention, such as curves, lane shifts, merging traffic, or temporary hazards.
Typical examples include:
- "Road Work Ahead" – Upcoming construction zone, expect workers and equipment.
- "Slippery When Wet" – Reduced traction in rain, fog, or snow.
- "Falling Rocks" – Increased risk of rockfall in mountainous or hilly areas.
- "Animal Crossing" – Wildlife commonly crosses the road here, reduce speed.
- "Speed Reduction Ahead" – Prepare to slow down before the posted limit changes.
From an engineering perspective, warning signs should be placed far enough in advance to give drivers time to see, understand, and respond safely, especially at highway speeds.
Circular signs placed ahead of tracks are used as railroad crossing advance warnings, while the crossbuck (X‑shaped sign) marks the actual crossing point.
- The circular sign generally tells drivers: a railway crossing is ahead; reduce speed, look both ways, and be ready to stop.
- The crossbuck at the tracks reinforces the presence of the crossing and usually includes the number of tracks, making it clear that multiple trains may pass.
In practice, many authorities now combine traditional retro‑reflective signs with LED‑enhanced crossbucks and flashing beacons to provide high‑visibility warnings, particularly at passive or rural crossings.
Pennant‑shaped signs (sideways triangles) are typically mounted on the left side of the road to mark no‑passing zones. They tell drivers that overtaking is prohibited in this stretch because sight distance is inadequate or conditions are unsafe.
These signs are often used near curves, hills, or narrow bridges where drivers cannot see far enough ahead to pass safely. When combined with pavement markings and, increasingly, LED edge‑lit designs, they significantly reduce head‑on collision risk in two‑lane road networks.
The octagon is reserved exclusively for the STOP sign in many jurisdictions. The combination of the unique eight‑sided shape and a red background makes it instantly recognizable, even when partially obscured or seen from behind.
A properly installed stop sign tells drivers to:
1. Come to a complete stop at the stop line or before the crosswalk.
2. Look for vehicles, cyclists, and pedestrians in all directions.
3. Proceed only when the way is clear and the right of way has been respected.

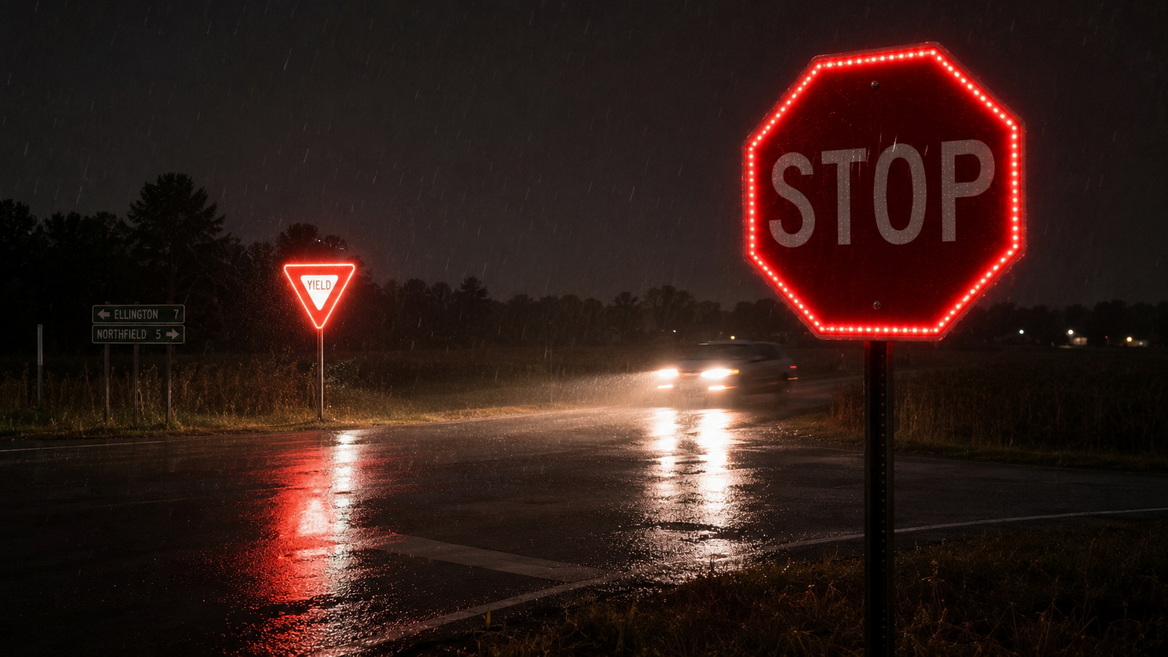

On high‑risk approaches, agencies increasingly use LED stop signs with flashing borders or internally illuminated legends to improve compliance, especially at night or in rural intersections where drivers may otherwise miss the sign.

Rectangular and square signs cover a wide range of regulatory and guidance functions.
Vertical rectangles commonly display regulations:
- Speed limits
- Parking rules
- Turn restrictions
- Lane‑use control
Horizontal rectangles are often used for guide signs:
- Route markers and exits
- Street names
- Directional arrows and distances
- Service information (fuel, rest areas, hospitals)
These shapes are highly versatile, which is why they are heavily used in both reflective aluminum signs and modern LED variable message signs (VMS).
Pentagon‑shaped signs are associated with school zones and school crossings. They are typically yellow or fluorescent yellow‑green to draw attention where children are present.
Key message to drivers:
- Reduce speed when entering the zone.
- Watch for children crossing between parked vehicles or buses.
- Yield to pedestrians at marked crossings.
In many urban projects, these signs are now supplemented with LED‑enhanced outlines and flashing beacons that activate during school hours, drastically improving driver awareness in critical time windows.
Equilateral triangle signs (often pointing down) are used for yield control. They tell drivers to slow down, check for cross traffic or pedestrians, and give right of way when necessary.
Proper driver behavior at yield signs includes:
- Reducing speed well before the sign.
- Scanning left and right for oncoming traffic or cyclists.
- Proceeding only when gaps are sufficient and conflicts are avoided.
From a safety engineering standpoint, yield signs are preferred over stops where full stopping is not required, but caution and judgment are essential.
To make these shapes more concrete, it helps to look at a few highly recognizable traffic safety signs and what they expect from drivers.
- Slippery When Wet (diamond) – Reduce speed and avoid harsh braking or steering in wet conditions.
- Road Work Ahead (diamond) – Prepare for lane shifts, workers, and equipment; follow temporary speed limits.
- Children At Play / School Zone (pentagon or diamond) – Expect sudden crossings; drive slowly and avoid distractions.
- Animal Crossing (diamond) – Be ready for animals entering the roadway, particularly at dawn and dusk.
- No Parking / Reserved / Handicap Parking (rectangles) – Follow clearly defined parking rules and respect reserved or accessible spaces.
Each of these signs is far more effective when supported by high‑contrast colors, proper placement, and—where appropriate—LED illumination for night and low‑visibility conditions.

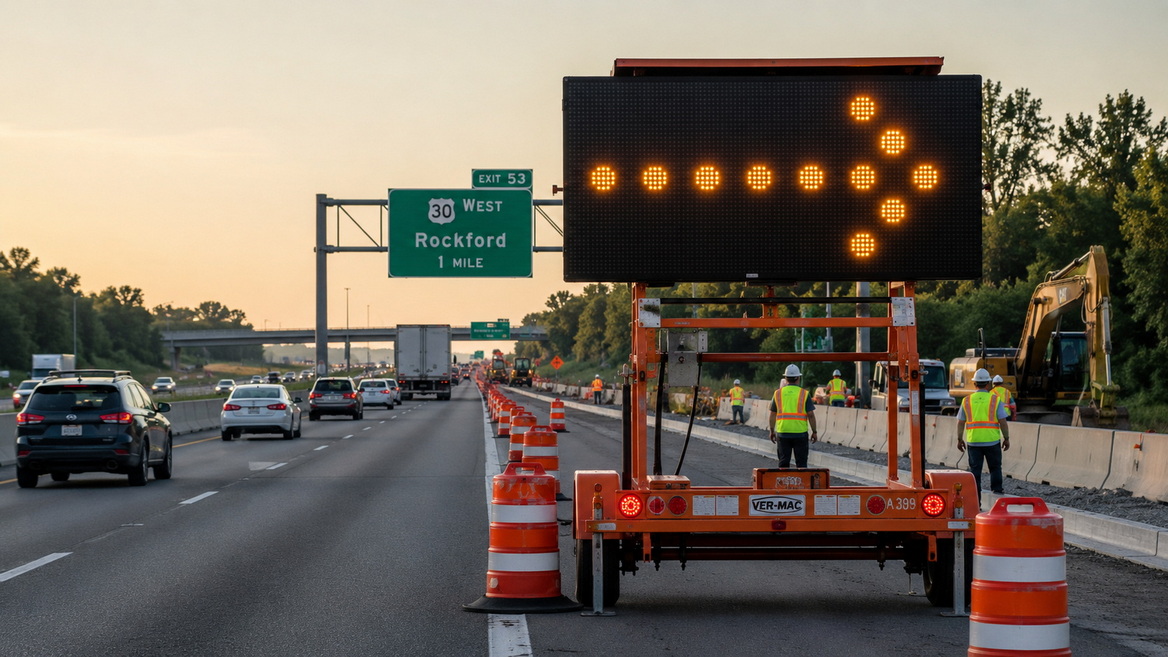

Unlike static metal signs, LED arrow boards are mobile, electronic signs widely used in work zones and lane closure operations. They provide real‑time lane control, helping drivers understand where to merge and how to navigate temporary layouts safely.

Common LED arrow board patterns include:
- Sequential arrows pointing → → → or ← ← ← – Lane closed ahead; merge in the indicated direction.
- Double‑headed arrow ↔ – Center lane closed; traffic can pass on either side.
- Flashing dots without arrows – Work zone ahead; proceed slowly and be prepared for workers and obstacles.
On highways, these boards form a critical part of temporary traffic control plans, often working in combination with cones, barriers, and portable message signs.

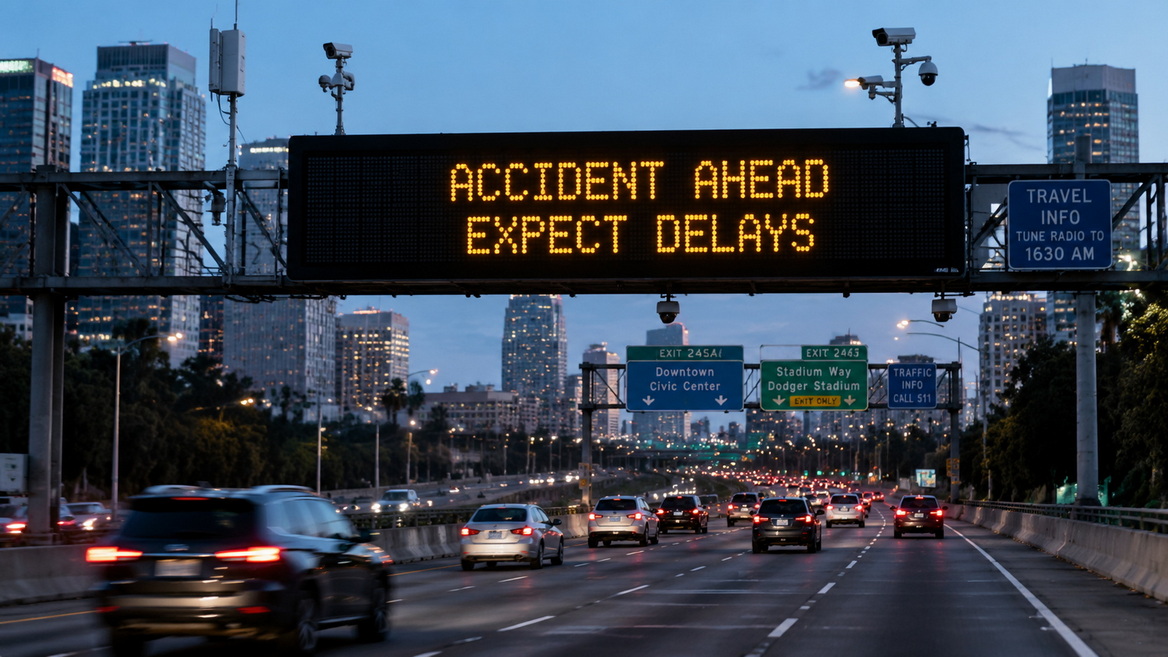

Variable message signs (VMS), also known as changeable message signs, are digital LED displays that provide live traffic information to drivers. They are typically mounted over or beside multi‑lane highways and busy corridors.
Typical messages include:
- "Accident Ahead – Expect Delays"
- "Heavy Fog – Drive Carefully"
- "Road Closed – Use Alternate Route"
- "AMBER Alert – Look For Blue Sedan"
- "Check Your Speed – You're Driving Over Limit"
Behind the scenes, these signs are linked to traffic management centers, cameras, and sensors that monitor congestion, incidents, and weather. This integration is a core part of smart city and intelligent transportation system (ITS) strategies, allowing agencies to react quickly and keep drivers informed.

From an industry viewpoint, LED traffic signs and signals are no longer a niche—they are becoming the standard. Governments and operators worldwide are investing in LED solutions because they combine safety performance with long‑term cost savings.
Key market insights include:
- The global road LED traffic signals market is projected to grow steadily through 2035, supported by stricter safety regulations and modernization programs.
- In North America, LED traffic signal and sign markets are forecast to grow at over 11% CAGR from 2026 to 2033, driven by smart city initiatives and the shift to energy‑efficient infrastructure.
- High‑intensity LED segments dominate due to superior brightness and visibility in challenging weather conditions.
- Dynamic message signs and connected systems are gaining momentum as they support adaptive, data‑driven traffic management.
For road authorities and parking operators, this means that upgrading from traditional reflective signs to LED‑enhanced or fully digital solutions is not just a safety decision—it is also a long‑term operational strategy.
Based on project experience and industry best practice, the following design principles can make your traffic sign program more effective:
1. Respect shape conventions
- Use octagons only for stop.
- Reserve triangles for yield and pennants for no‑passing.
- Keep shapes consistent with regional standards so drivers instantly recognize the category.
2. Align shape, color, and placement
- Combine correct shapes with standardized colors (e. g., red for stop or prohibition, yellow for warnings).
- Install at proper height and lateral offset so signs remain visible even when vehicles queue.
3. Leverage LED selectively
- Use LED borders or fully illuminated legends on high‑risk approaches, school zones, and crossings.
- Deploy arrow boards and VMS where conditions change frequently (work zones, major corridors).
4. Plan for nighttime and adverse weather
- Choose high‑intensity LEDs and quality optics for visibility in rain, fog, and glare.
- Ensure backup power or robust power design for critical signs and signals.
5. Think lifecycle cost, not just initial price
- LED signs offer longer lifespans and lower energy use compared with older technologies.
- Fewer maintenance interventions mean less exposure of workers to live traffic.
As a Chinese manufacturer of LED traffic signs and traffic safety systems, Shenzhen Xingsheng Traffic Facilities Co., Ltd. works closely with clients in street, highway, toll station, and parking applications to translate regulations into practical, durable products.
From an engineering and manufacturing standpoint, several factors determine whether a traffic sign program will succeed in the field:
- Customization to local standards
Every market follows its own sign manuals and color/shape conventions. Through OEM and ODM services, we customize LED traffic signs, arrow boards, and VMS messages to match local regulations and languages, while keeping core safety principles intact.
- Integrated solutions, not isolated products
A modern road project rarely needs just one sign. It needs coordinated systems: static signs, LED signs, controllers, power systems, communication modules, and mounting hardware. Designing these as an integrated package reduces installation errors and improves long‑term reliability.
- Field feedback loop
Feedback from operators, maintenance teams, and even driver complaints is invaluable. We routinely refine lens designs, brightness settings, and enclosure protection levels (e. g., IP rating) based on real‑world comments from long‑term users.
By combining manufacturing experience with on‑site feedback, we help agencies and private operators deploy sign systems that drivers actually see, understand, and obey.

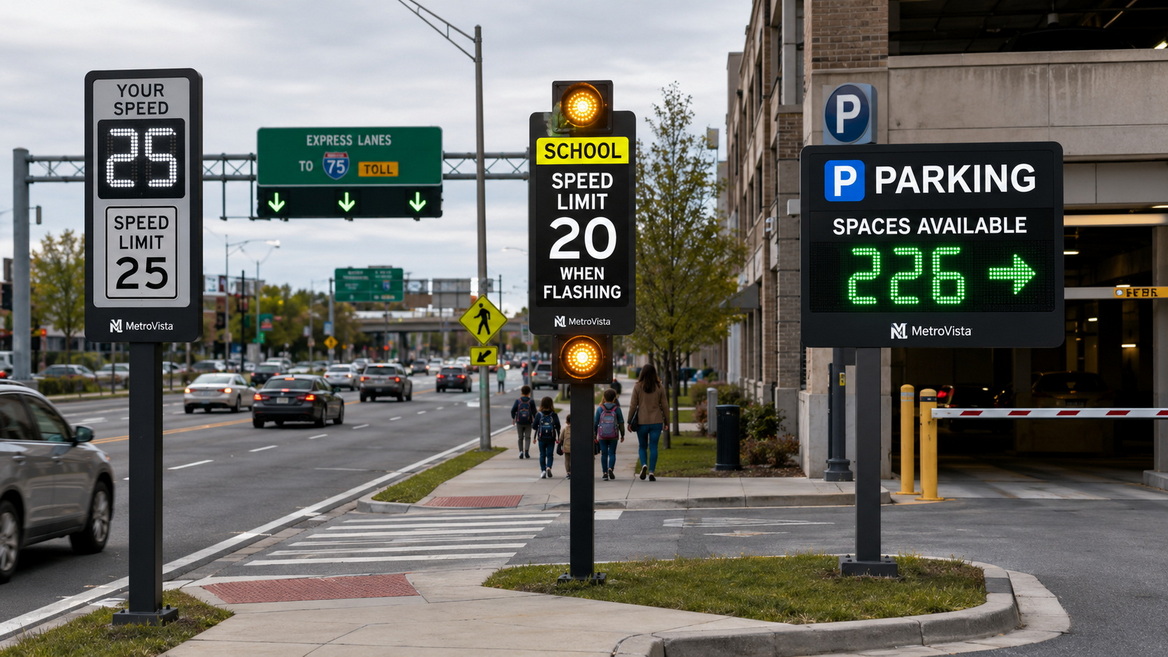

Understanding traffic sign shapes is the first step; deploying a reliable, high‑visibility sign system is what actually saves lives on your roads and in your parking facilities.
If you are planning a project for highways, streets, toll stations, or parking lots and need OEM/ODM LED traffic signs, arrow boards, or variable message signs adapted to your local standards, our team at Shenzhen Xingsheng Traffic Facilities Co., Ltd. can support you from design to delivery. Get in touch with our traffic safety specialists to discuss your specifications, request samples, or start a custom design tailored to your road environment.
Shapes are standardized so drivers can recognize the category of message—stop, yield, warning, guidance—instantly, even when text is unreadable due to speed, glare, or weather.
LED traffic signs significantly improve visibility in low light and adverse weather, which helps drivers detect and understand signs earlier; combined with proper placement, this leads to fewer missed warnings and better compliance.
They are especially effective in work zones and temporary lane closures on highways, where lane configurations change frequently and drivers need clear, dynamic guidance on when and where to merge.
VMS units are connected to traffic management centers that receive inputs from cameras, loop detectors, radar, and weather sensors; operators or automated systems then push updated messages to the signs.
Yes, private facilities can use standard shapes and colors while customizing text, symbols, or LED patterns for site‑specific needs, as long as they remain consistent with local regulations and are not confused with public‑road signs.
1. JACKWIN Safety. "Understanding Traffic Sign Shapes and Their Meanings." https://jackwinsafety.com/traffic-sign-shapes-and-their-meanings/
2. ComplianceSigns. "Decoding Traffic Signs: Understanding Colors, Shapes and Symbols." https://www.compliancesigns.com/blog/decoding-traffic-signs-understanding-colors-shapes-symbols
3. RoadTrafficSigns. "What do Traffic Sign Shapes Mean?" https://www.roadtrafficsigns.com/traffic-sign-shapes
4. SafetyDecals. "Regulatory Signs: Colors, Shapes, Meanings & 15 Examples." https://www.safetydecals.com/blogs/news/regulatory-signs
5. DataInsightsMarket. "LED Traffic Signs Strategic Market Opportunities: Trends 2026‑2034." https://www.datainsightsmarket.com/reports/led-traffic-signs-800846
6. Business Research Insights. "Road LED Traffic Signals Market 2026 | 2035." https://www.businessresearchinsights.com/market-reports/road-led-traffic-signals-market-101750
7. Linked analysis. "North America LED Traffic Signal and Sign Industry Market Analysis." https://www.linkedin.com/pulse/north-america-led-traffic-signal-sign-industry-market-analysis-fsfrf
8. TopSafeTraffic (example of Chinese traffic safety manufacturer profile). "About Us." https://www.topsafetraffic.com/about-us
