Road stud spacing is one of the most important details in road safety design. It may look simple, but the distance between studs directly affects how well drivers can read the road, especially at night, in rain, or in low-visibility conditions.
A good spacing layout helps drivers follow lanes more naturally, recognize curves earlier, and notice hazardous areas in time. A poor layout can create visual gaps, reduce guidance, and weaken the overall safety effect of the road marking system.
Road stud spacing refers to the distance between individual road studs or raised pavement markers installed along a lane, edge line, curve, crossing, or other guided route. The purpose of spacing is to create a visible pattern that helps drivers understand the road alignment quickly and safely.
In simple terms, closer spacing creates stronger visual attention, while wider spacing reduces the number of units used. The ideal balance depends on road type, traffic speed, visibility conditions, and the function of the marking area.
Proper spacing improves how drivers interpret the road ahead. It supports safer lane following, clearer curve recognition, and better hazard awareness in difficult conditions.
It is especially important because:
- Drivers need continuous visual guidance at night.
- Curves and ramps require earlier recognition.
- Crossings and intersections need stronger warning effects.
- Wet, foggy, or dim conditions reduce natural road visibility.
- Incorrect spacing can weaken the impact of even a high-quality stud.
When spacing is planned carefully, the road surface becomes easier to read and safer to use.

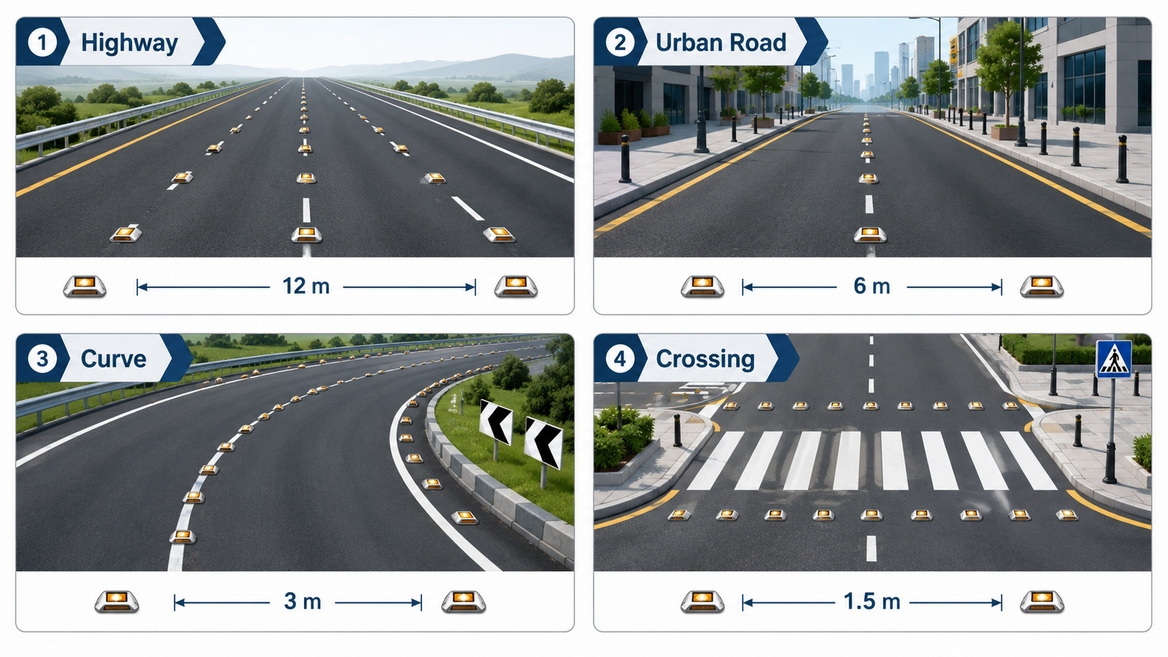

There is no single spacing rule for every road. The best spacing depends on the road function and traffic environment.
High-speed roads usually use wider spacing than urban streets because drivers move farther between visual checks and need a long but readable guidance line. A common practical range is around 6 to 9 meters, depending on local standards and project conditions.
Urban roads often need closer spacing than highways because traffic is denser, lane changes happen more often, and drivers must process more visual information in a shorter time. A range of about 3 to 6 meters is often used in practice.
Curved sections usually need tighter spacing because the driver's sight line shortens and the risk of lane departure increases. In these areas, spacing may be reduced to about 1.5 to 5 meters to reinforce the turning path.
At crossings, merging points, and conflict zones, the stud pattern should become more noticeable. Spacing may be as close as 0.5 to 1 meter to increase warning strength and support safer driver behavior.
Parking lots, entry lanes, and toll areas often require a different approach because vehicles travel more slowly but make frequent turns, stops, and lane selections. Closer spacing can improve directional clarity and help guide vehicles into the correct path.
The best spacing is shaped by real road conditions, not just product type.
The faster the traffic moves, the more carefully spacing must be planned. Drivers on high-speed roads need enough time to detect the guidance pattern before they pass the next stud.
Straight roads allow more open spacing because the path is easier to see. Curves, slopes, merges, and diverging lanes require denser placement because visual reference points change more quickly.

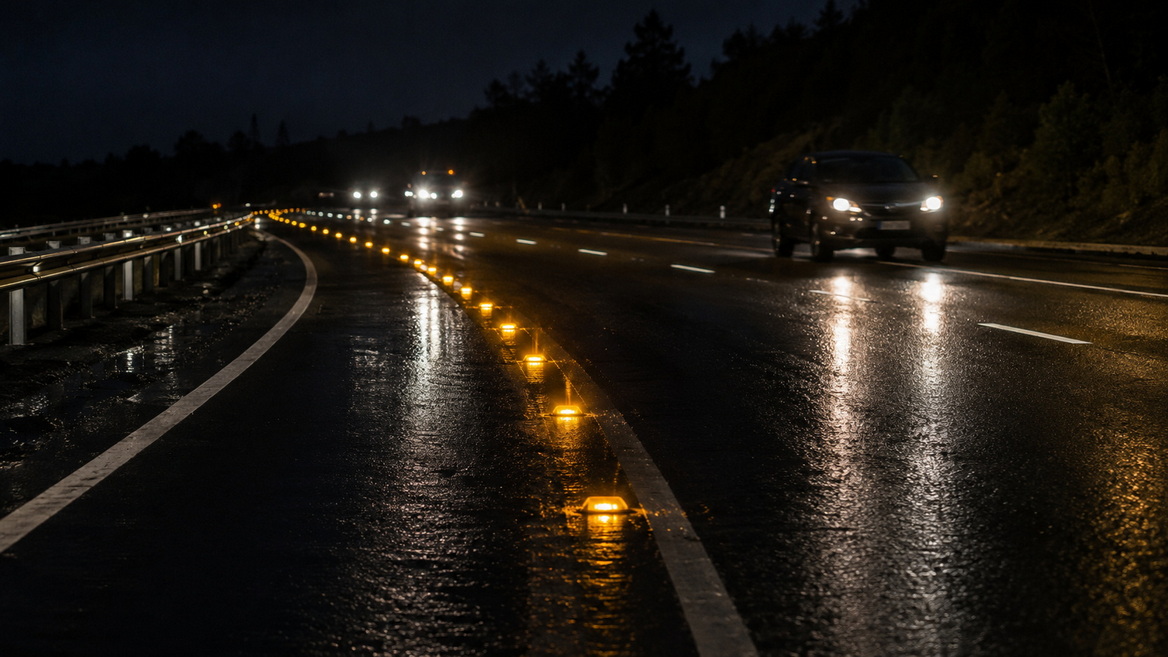

Fog, rain, dust, night-time driving, and glare all reduce how well drivers see the road. In these conditions, tighter spacing often provides better continuity and stronger lane awareness.
Busy roads need clearer visual structure because drivers have less time to interpret the environment. Where traffic flow is dense or lane changes are frequent, the marking system should feel more direct and intuitive.

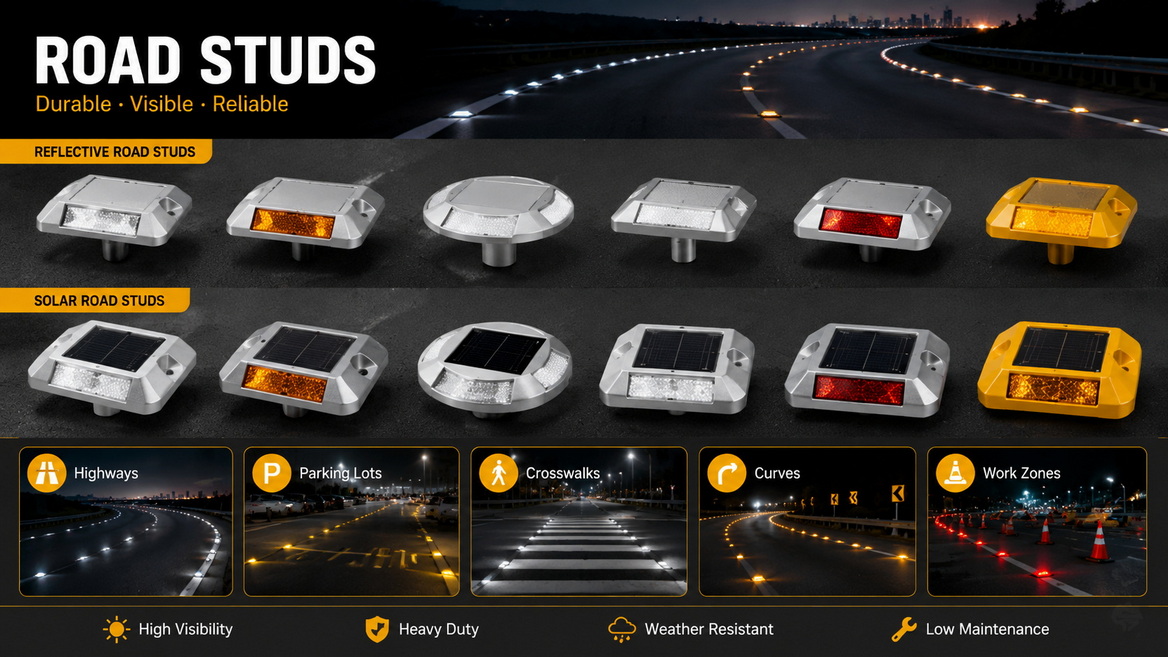

Different stud materials and designs perform differently. A reflective plastic stud, a metal-bodied stud, and a solar road stud do not always work best at the same spacing. Product performance must be matched to the site and usage requirements.
Spacing alone does not create safety. The stud must also reflect light effectively and remain visible over time.
A road stud with strong reflective performance can support safer guidance even when spacing is moderate. A weaker product may need a more conservative layout to achieve a similar visual effect. For this reason, spacing and optical performance should always be considered together.
Color also matters. Different colors are often used to communicate different road functions, such as lane guidance, edge warning, separation, or route change.
Correct installation is just as important as spacing design. Even a well-planned layout can fail if the studs are installed unevenly or at the wrong angle.
A practical installation process usually includes:
1. Assess the road condition, including speed, curvature, traffic flow, and lighting.
2. Select the right road stud type for the project.
3. Mark the layout before installation to keep spacing consistent.
4. Install each stud in line with the planned position and direction.
5. Check alignment after placement to ensure the visual pattern is continuous.
6. Inspect bonding strength, surface condition, and product visibility before opening the road to traffic.
When installation is done carefully, the spacing plan performs much better in real-world use.
Road stud spacing problems often come from small planning errors.
Some common mistakes include:
- Using the same spacing for every road type.
- Ignoring curves, ramps, or intersections.
- Choosing a stud type without considering the road environment.
- Installing products unevenly along the line.
- Overlooking local rules or project specifications.
- Focusing only on product price and not on actual performance.
Avoiding these mistakes helps create a more reliable and durable road guidance system.
The right product depends on the project's purpose and operating conditions.
For highways, buyers often look for durable studs with strong visibility and weather resistance. For urban roads, the focus may be on clear guidance and flexible layout. For parking areas, compact design and easy installation may matter more. For toll plazas and crossings, high visibility and warning strength are often the main priorities.
This is why road safety manufacturers often support OEM and ODM services. Customization can help match product size, shape, color, mounting structure, and branding to the exact application.
Road stud spacing is not only a technical detail. It is part of the full safety system. A good layout helps drivers understand the road more quickly and creates a smoother visual flow from one section to the next.
For road authorities, contractors, and product buyers, careful planning reduces rework and improves long-term performance. For manufacturers, it shows the value of offering not only products, but also practical guidance for different road environments.
Road stud spacing should always be chosen based on road type, vehicle speed, visibility, geometry, and stud performance. When these factors are balanced correctly, the result is clearer night guidance, better lane recognition, and stronger safety support for all road users.
A well-designed spacing layout makes the road easier to understand and the driving experience safer.
Road stud spacing is the distance between two installed road studs along a road line, curve, crossing, or guided path.
A common practical range for highways is about 6 to 9 meters, depending on the project and road environment.
Curves need tighter spacing because drivers have less time to see the path ahead and need stronger visual guidance.
No. Crossings usually need much closer spacing because they are higher-risk areas and require stronger warning visibility.
Yes. Color helps communicate different road functions, such as lane guidance, warning, separation, or route direction.
1. JACKWIN Traffic. A Complete Guide To Road Stud Spacing
https://jackwinsafety.com/road-stud-spacing/
2. Wistron China. Reflective Standards for Plastic Road Studs
https://www.wistronchina.com/reflective-standards-for-plastic-road-studs/
3. IRC:35-2015 Road Stud Guidance Reference
https://law.resource.org/pub/in/bis/irc/irc.gov.in.035.2015.pdf
4. EN 1463-1 Standard Listing
https://standards.iteh.ai/catalog/standards/cen/475ee4b3-732b-475a-b034-dd8cfc0a6db4/en-1463-1-2021
