Choosing the right finish for aluminum road sign frames directly impacts durability, maintenance costs, and long-term performance. As a traffic safety equipment manufacturer with over 15 years of experience producing solar road markers and signage solutions for highways, toll stations, and parking facilities, I've witnessed firsthand how powder coating and anodizing perform under real-world conditions across diverse climates—from coastal humidity to desert heat.
Both finishing methods enhance aluminum's natural properties, but they serve different purposes and excel in distinct applications. Powder coating creates a thick, colored protective layer on the surface, while anodizing chemically transforms the aluminum itself into a corrosion-resistant oxide barrier. Understanding these fundamental differences helps traffic departments, contractors, and facility managers make informed decisions that balance initial investment with lifecycle costs.

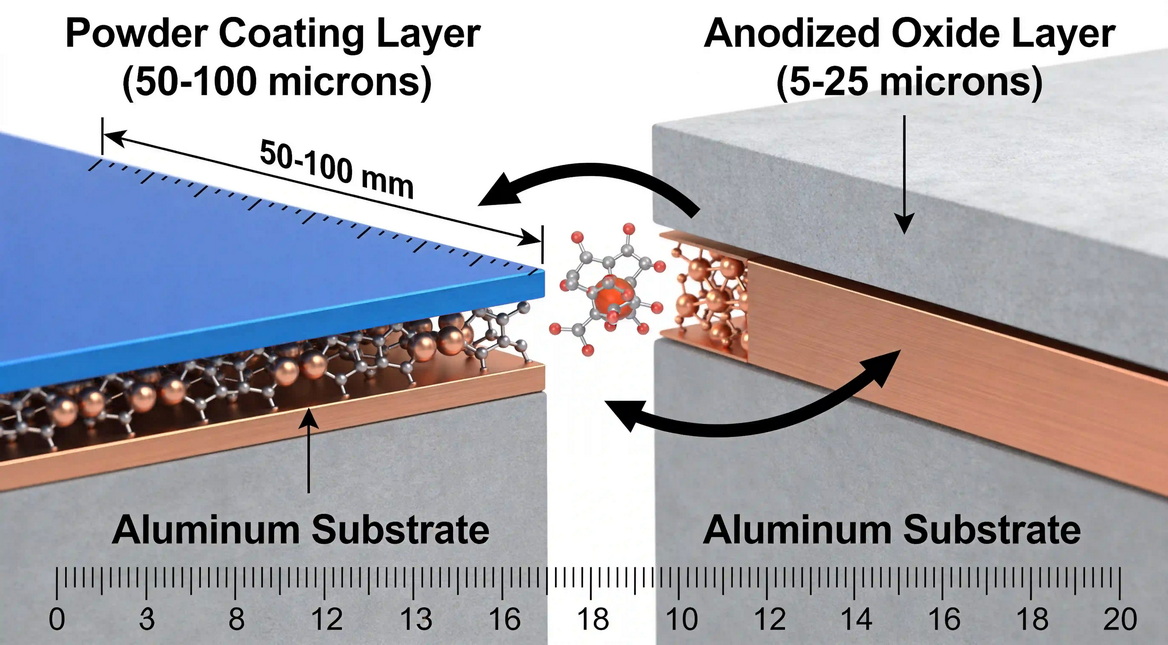

Powder coating involves electrostatically applying dry powder particles to the aluminum frame surface, then curing the coating in an oven at temperatures between 160-210°C. This process creates a uniform, thick finish (typically 50-100 microns) that fully encapsulates the aluminum substrate. The cured coating forms a continuous barrier against moisture, UV radiation, and physical impacts.
The application process allows for unlimited color options, textures, and finishes—from matte to high-gloss—making powder coating ideal when aesthetic customization matters. In our manufacturing facility, we've successfully powder coated frames for custom municipal signage projects requiring specific color matching to municipal branding guidelines.
Anodizing is an electrochemical process that converts the aluminum surface into aluminum oxide through immersion in an acidic electrolyte bath. Unlike powder coating, which adds a layer on top, anodizing actually becomes part of the metal itself—the protective oxide layer grows inward from the surface, integrating with the base material.
This process typically produces a thinner finish (5-25 microns) that maintains the metallic appearance and precise dimensions of the original aluminum. The anodized layer cannot peel or flake off because it's molecularly bonded to the substrate. This characteristic makes anodizing particularly valuable for high-traffic environments where physical abuse and abrasive cleaning are common.
For coastal installations and high-humidity regions, anodizing demonstrates superior corrosion resistance. The integrated oxide layer provides consistent protection even if the surface becomes scratched—the underlying material is already oxidized, preventing rust propagation. A comprehensive ASTM study testing aluminum and steel across 53 locations over 8 years confirmed aluminum's natural rust resistance outperformed steel, especially in wet and salty environments.
Powder coating offers exceptional chemical resistance and creates a robust barrier against environmental contaminants. However, if the powder coat chips or cracks—particularly at edges or mounting points—the exposed aluminum underneath becomes vulnerable to corrosion. Our field observations from solar road marker installations show that powder-coated frames in high-impact zones (such as highway medians) occasionally develop localized coating damage after 3-5 years under heavy traffic conditions.
Anodizing produces a harder surface than powder coating, making it superior for applications subject to physical abuse and abrasive cleaners. This hardness advantage proves critical for road signs in high-traffic areas where maintenance crews regularly clean surfaces or where wind-blown debris causes constant micro-abrasion.
Powder coating provides excellent impact resistance due to its thicker, more flexible finish. The coating absorbs and distributes impact energy, reducing dent formation. However, severe impacts can cause chipping or cracking, especially in cold weather when the coating becomes more brittle.
One significant limitation of powder coating is its susceptibility to UV degradation over extended periods. While high-quality powder coats include UV stabilizers, prolonged sun exposure gradually breaks down the polymer chains, leading to color fading, chalking, and eventual coating breakdown. Premium powder coats typically maintain appearance for 7-10 years outdoors before requiring refinishing.
Anodized finishes maintain their appearance significantly longer because the oxide layer is inorganic and inherently UV-stable. The natural aluminum oxide doesn't degrade under sunlight, though dyed anodized finishes may fade over time. Clear anodized or bronze anodized finishes retain their appearance for 15-20 years with minimal degradation.
Powder coating generally costs less than anodizing for initial processing. The equipment requirements are simpler and the process consumes less time, energy, and specialized materials. For small to medium production batches, powder coating offers significant cost advantages, particularly when color customization is required.
Anodizing requires specialized, expensive equipment and controlled chemical processes, resulting in higher per-unit costs. However, for large production runs of aluminum components requiring consistent quality, the per-piece cost differential narrows considerably.

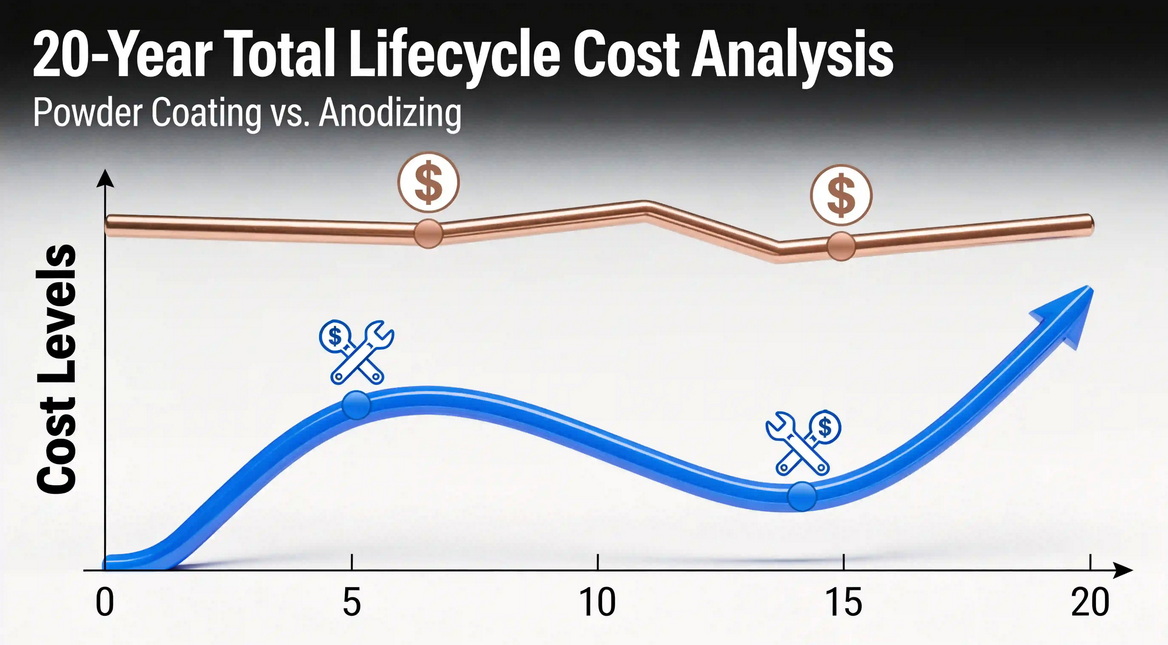

The true cost comparison emerges when evaluating lifecycle expenses. Aluminum road signs typically last 7-10 years before requiring replacement due to reflective sheeting degradation or structural damage. However, premium diamond-grade signs with superior finishes can extend to 10-17 years.
Anodized frames require virtually no maintenance—no repainting, no coating repairs, and minimal cleaning. The integrated oxide layer doesn't peel, chip, or require touch-ups. This maintenance-free performance translates to substantial labor cost savings over the sign's lifespan, particularly for installations in difficult-to-access locations like elevated highway signs.
Powder-coated frames may require refinishing or coating repairs after 7-10 years, especially in harsh environments. While the initial cost savings are attractive, the need for eventual refinishing adds to total ownership costs. For temporary installations or projects with 5-7 year planning horizons, powder coating's lower upfront cost makes economic sense.
| Cost Factor | Powder Coating | Anodizing |
|---|---|---|
| Initial processing cost | Lower ($150-250 per 4×8 sheet) | Higher |
| Color options | Unlimited custom colors | Limited palette, maintains metallic look |
| Maintenance requirements | May need refinishing after 7-10 years | Virtually maintenance-free |
| Lifespan in coastal environments | 7-10 years with potential coating failure | 15-20+ years with minimal degradation |
| Total lifecycle cost | Higher due to maintenance | Lower due to longevity |
Powder coating excels when specific colors, textures, or branding requirements drive design decisions. Municipal projects often specify powder coating to match established color schemes or create visually distinctive wayfinding systems. The matte finish typical of powder coating reduces glare and light reflection, which can be advantageous in certain lighting conditions.
Anodizing preserves aluminum's natural metallic appearance with a professional, industrial aesthetic. The finish options are more limited—typically clear, bronze, black, or gold tones—but the metallic look conveys durability and quality. For standard traffic control signage where appearance consistency matters more than color variety, anodizing provides uniform, predictable results.
For solar road markers and reflective traffic signage, the frame finish must not interfere with retroreflective sheeting performance. Both powder coating and anodizing work effectively with reflective overlays. However, powder coating's ability to create matte, non-reflective frame surfaces helps maximize contrast between the reflective sign face and the frame, potentially enhancing nighttime visibility.
Anodizing is generally considered less environmentally friendly during production because the process generates hazardous chemical byproducts requiring careful disposal. The acidic electrolyte baths and chemical waste streams demand specialized handling and treatment facilities.
Powder coating produces zero volatile organic compounds (VOCs) during application, and overspray powder can be recovered and recycled. The curing process requires significant energy input, but advances in low-temperature powder formulations have reduced energy consumption. Overall, powder coating presents a cleaner production process with fewer hazardous waste concerns.
Both aluminum finishes support sustainability through material recyclability. When road signs reach end-of-life, anodized aluminum can be recycled without special processing—the oxide layer doesn't interfere with aluminum recovery. Powder-coated aluminum requires coating removal before recycling, adding a processing step.
The longer service life of anodized frames reduces replacement frequency, decreasing total material consumption and installation labor over decades. This longevity advantage contributes significantly to sustainable infrastructure management, particularly for large-scale highway systems with thousands of signs.
For installations near oceans, salt spray zones, or consistently humid climates, anodizing provides superior long-term performance. Our experience manufacturing solar road markers for coastal expressways in Southeast Asia confirms that anodized aluminum frames maintain structural integrity and appearance 30-40% longer than powder-coated equivalents in these challenging conditions.
The natural corrosion resistance of anodized aluminum eliminates concerns about coating failure at stress points, edges, and mounting holes—the most vulnerable areas for powder coating degradation.
High-traffic urban environments with vehicle emissions, industrial pollutants, and frequent cleaning requirements favor anodizing's hardness and chemical resistance. Road signs near industrial facilities, tunnels, and parking structures benefit from the abrasion resistance and cleanability of anodized surfaces.
Powder coating works well in these environments when regular inspection and maintenance programs exist. The impact resistance helps frames survive minor collisions with vehicles or maintenance equipment.
Construction zone signage, temporary traffic control installations, and projects with strict budget constraints benefit from powder coating's lower initial cost. When the expected service life is 5-7 years or the installation is temporary, paying premium prices for anodizing's longevity advantages doesn't make economic sense.
Similarly, when specific color matching is required—such as parking facility signage coordinating with building architecture—powder coating's unlimited color options become the decisive factor.
In our specialized field of solar road marker manufacturing, we've found that aluminum frames benefit differently from each finish depending on the installation location. For highway center line markers experiencing constant vehicle tire contact, anodized frames demonstrate superior wear resistance. The brushed aluminum alloy casting frame with anodized finish effectively wards off weathering from rain, snow, and harsh sunlight while withstanding up to 30 tons of weight.
For parking lot and pathway applications with lower traffic stress but higher aesthetic expectations, powder-coated frames in custom colors enhance visibility and complement facility design without sacrificing adequate durability.
When evaluating powder coating versus anodizing for road sign frames, consider these prioritized factors:
Choose anodizing when:
- Installation environment is coastal, high-humidity, or experiences harsh weather
- Long-term lifecycle costs outweigh initial investment concerns
- Maintenance access is difficult or expensive
- Surface will experience frequent physical abuse or abrasive cleaning
- Maximum service life (15-20+ years) is the priority
- Natural metallic appearance is acceptable or preferred
Choose powder coating when:
- Budget constraints prioritize lower upfront costs
- Specific colors or custom finishes are required
- Installation is temporary or expected service life is under 10 years
- Aesthetic customization and branding are important
- Environmental conditions are moderate (not harsh coastal or industrial)
- Regular maintenance programs allow for inspection and refinishing
As an OEM/ODM manufacturer serving global traffic safety markets, we implement rigorous quality control for both finishing processes. Powder coating thickness should meet minimum 50-micron standards for outdoor applications, with premium formulations exceeding 75 microns. Anodizing should achieve minimum Class II thickness (10 microns) for general outdoor use, with Class I (25 microns) for harsh environments.
Pre-treatment processes critically impact both finishes. Proper surface cleaning, degreasing, and chemical etching ensure optimal coating adhesion for powder coating. For anodizing, surface preparation and careful process control maintain consistent oxide layer thickness and quality.
Testing protocols should verify salt spray resistance (ASTM B117), adhesion (ASTM D3359 for powder coating), and color retention under accelerated weathering. These quality assurance measures ensure road sign frames perform as specified throughout their intended service life.
Contact us to get more information!
Yes, but it's not recommended. Powder coating over anodized aluminum requires thorough cleaning and sanding to create adequate surface adhesion, and doing so negates many benefits of the anodization process. It's more effective to choose either powder coating or anodizing based on project requirements rather than combining both finishes.
Anodized finishes typically last 15-20+ years with minimal degradation, while powder-coated finishes generally require refinishing or replacement after 7-10 years. However, powder coating with premium UV-resistant formulations can approach anodizing's longevity in moderate climates with proper maintenance.
Anodizing is superior for coastal environments. The integrated oxide layer provides consistent corrosion protection even when scratched, while powder coating can fail at damage points, exposing aluminum to salt spray corrosion. ASTM testing across multiple coastal locations confirmed anodized aluminum's superior rust resistance in salty, humid conditions.
Anodizing requires specialized equipment, controlled chemical processes, and more time, energy, and materials than powder coating. The electrochemical process demands precise bath composition, temperature control, and hazardous waste management, all contributing to higher processing costs. However, lifecycle cost advantages often offset the initial premium.
Powder coating offers unlimited color options, textures, and finishes including matte, glossy, and metallic effects. Anodizing has a limited color palette—typically clear, bronze, black, and gold tones—and maintains the natural metallic appearance of aluminum. For custom color matching and branding requirements, powder coating is the clear choice.
