Canadian roads use a clear visual language to guide traffic, warn drivers about hazards, communicate legal restrictions, and improve safety for pedestrians, cyclists, workers, and motorists. Whether you are driving through a busy city centre, entering a toll plaza, travelling on a rural highway, or navigating a parking facility, understanding Canada road signs and meanings helps you make safer and faster decisions.
Road signs in Canada are more than roadside symbols. They tell drivers when to stop, where to turn, how fast to travel, when parking is restricted, and what dangers may be ahead. They also play an important role in traffic management for streets, highways, construction areas, industrial sites, toll stations, logistics parks, and parking lots.
For traffic-safety projects, selecting the correct sign is only the first step. A sign must also be visible, durable, understandable, appropriately positioned, and suitable for real operating conditions. This guide explains common Canadian road signs, their meanings, and the practical considerations that matter when choosing traffic-safety signage.
> Important: Sign designs, legal requirements, language requirements, installation standards, and local rules may vary between provinces, territories, municipalities, and road authorities. Always confirm the applicable project requirements before producing or installing traffic signs.
Every road user needs information before making a decision. A driver approaching an intersection may need to know whether turning is allowed. A truck driver approaching a steep grade may need to slow down or select a lower gear. A visitor entering a parking garage needs clear directions to available spaces, exits, payment lanes, and pedestrian areas.
Road signs provide that information quickly.
They help drivers understand:
- Where traffic is allowed to travel
- Which direction vehicles must follow
- When drivers need to stop, yield, merge, or slow down
- Where hazards may exist
- Which lanes are available or restricted
- Where pedestrians, cyclists, animals, trains, or workers may be present
- Where drivers can find services, exits, parking, hospitals, rest areas, or fuel
A well-designed sign system reduces uncertainty. It gives drivers enough time to detect a message, understand it, and respond safely.
This is especially important in locations with high traffic complexity, including:
- Urban intersections
- Multi-lane highways
- Highway ramps and exits
- Toll stations
- Parking garages and parking lots
- Construction and maintenance zones
- School areas
- Industrial parks
- Logistics centres
- Railway crossings
- Tourist routes and recreational areas
A sign that is unclear, poorly positioned, damaged, blocked, or difficult to read can create confusion. In contrast, a visible and consistent traffic sign can improve traffic flow and support safer driver behaviour.

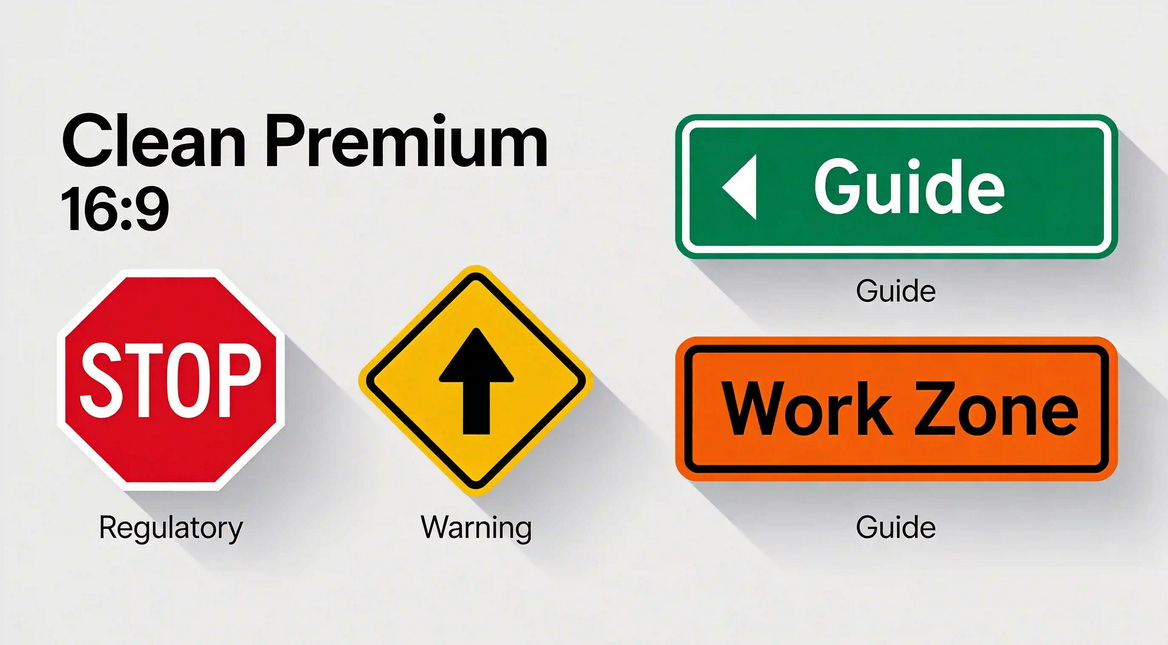

Canadian traffic signs can generally be divided into four main groups. Each category has a different purpose, colour pattern, shape, and message style.
| Sign Type | Main Purpose | Common Colours and Shapes | Typical Examples |
|---|---|---|---|
| Regulatory signs | Tell drivers what they must or must not do | White, black, red, or green; often rectangular | Speed limit, no parking, no left turn |
| Warning signs | Alert drivers to hazards or changing conditions | Yellow or orange diamonds with black symbols | Curve ahead, deer crossing, road narrows |
| Guide signs | Help drivers find routes, services, exits, and destinations | Green, blue, white, or brown | Highway exit, hospital, parking, rest area |
| Temporary signs | Manage traffic during roadworks, maintenance, incidents, or events | Orange and black; often portable | Detour, lane closure, workers ahead |
Drivers should learn to recognize sign shapes and colours before reading every detail.
For example:
- A red octagon means stop.
- A yellow diamond usually warns about a hazard or change ahead.
- A white rectangular sign often communicates a rule or restriction.
- An orange sign usually relates to temporary traffic conditions or roadwork.
- A green sign often provides route and destination guidance.
- A blue sign often identifies services or facilities.
- A brown sign may indicate tourism, recreation, parks, or cultural attractions.
The following signs are among the most common Canadian traffic signs used on roads, highways, parking areas, construction zones, and rural routes.
This sign warns drivers that the physical barrier or median separating opposite directions of traffic is ending. Drivers should be prepared for two-way traffic ahead.
This sign indicates that a divided roadway begins ahead. Opposing traffic will be separated by a median, barrier, or other physical divider.
This sign tells drivers that they may pass an obstruction, traffic island, or central divider on either the left or right side, depending on traffic conditions and available lanes.
A crossroad sign warns that another road intersects the route ahead. Drivers should reduce speed and watch for vehicles entering, crossing, or turning.
This sign indicates that a side road joins the main roadway from the left side. Drivers should be aware of possible turning or merging traffic.
The road ends at a T-intersection. Drivers must turn left or right when they reach the end of the road.
The route splits into two directions ahead. Drivers should read guide signs early and choose the correct lane before reaching the intersection.
A sharp left bend is ahead. Drivers should slow down before entering the curve and avoid sudden braking while turning.
The roadway curves to the left. The safe driving speed depends on visibility, weather, road surface conditions, and vehicle type.
The road bends to the right ahead. Drivers should maintain their lane position and reduce speed if conditions require it.
This sign warns of two curves in succession, often in opposite directions. Drivers should remain alert through the entire section instead of accelerating after the first bend.
The usable roadway becomes narrower on the right side. This may occur near bridges, roadside barriers, parked vehicles, or temporary work zones.
The usable roadway becomes narrower on the left side. Larger vehicles should take extra care to maintain safe clearance.
A significant downhill grade is ahead. Drivers should reduce speed before descending. Heavy vehicles may need to use lower gears to help control speed.
Strong side winds may affect vehicle stability. This sign is especially important for buses, trucks, trailers, motorcycles, and high-profile vehicles.
This sign indicates that traffic moves in both directions. It may appear where a one-way road becomes two-way or where a divided highway ends.
An additional lane begins ahead. Traffic may enter from another roadway, but drivers travelling in the through lane should stay alert and maintain safe spacing.
Traffic from another route will join the main roadway. Entering drivers should adjust their speed and merge safely, while through drivers should remain aware of merging traffic.
All vehicles must travel in the direction shown by the arrow. Driving in the opposite direction is dangerous and may result in a serious collision.
Lane-use signs show which movements are allowed from each lane. They may permit straight-through travel, left turns, right turns, or a combination of movements.
A high-occupancy vehicle lane is reserved for vehicles that meet the occupancy requirement or other displayed conditions. Requirements may vary according to time of day, location, vehicle type, and local regulations.
This sign gives advance notice of an upcoming highway exit. Drivers should prepare early and avoid unsafe lane changes near the exit point.
Traffic signals are approaching. This warning is often installed where the signal may not be immediately visible because of hills, curves, vegetation, buildings, or other roadside features.
This sign shows that a U-turn may be allowed at the indicated location when it can be completed safely. Drivers must still check for approaching vehicles, pedestrians, cyclists, and other restrictions.
A permissive sign communicates an action that is allowed, such as a permitted turn, lane movement, or parking activity. Additional panels may provide details about time periods, vehicle classes, or exceptions.
A speed limit sign indicates the maximum lawful speed under normal driving conditions. Drivers must reduce speed if rain, snow, ice, fog, congestion, roadwork, or poor visibility makes the posted limit unsafe.
Parking restriction signs tell drivers where parking, stopping, standing, loading, or unloading is prohibited or limited. Always check any supplementary panels for time restrictions, vehicle exemptions, or special conditions.
A railway crossing is ahead without a gate or barrier. Drivers must reduce speed, look in both directions, and never stop on railway tracks.
This sign identifies a path used by both pedestrians and cyclists. Users should stay aware of others, travel predictably, and provide enough space when passing.
Horses and riders may cross the roadway ahead. Drivers should slow down, avoid sudden movements, and avoid unnecessary horn use because horses can react unpredictably.
Deer may enter the road in this area. Drivers should reduce speed, scan both sides of the road, and remain especially cautious at dawn, dusk, and night.
Moose may cross the road ahead. Moose are large animals and can be difficult to see in low-light conditions. A collision may cause serious vehicle damage and injury, so drivers should slow down and remain alert.
Other wildlife signs may identify bears, elk, caribou, cattle, sheep, or other animals depending on the region.
Understanding a sign symbol is important, but safe driving requires more than recognizing a picture or word. Drivers need to process information early enough to make a safe decision.
A practical sign-reading process includes the following steps:
1. Identify the sign type. Look at the shape and colour first to understand whether it is a warning, rule, direction, or temporary instruction.
2. Read the main message. Focus on the symbol, number, arrow, or wording that gives the primary instruction.
3. Check for supplementary panels. Some signs include additional information such as time limits, vehicle restrictions, distance, direction, or exceptions.
4. Look ahead for related signs. A warning sign may be followed by a lower speed sign, lane-control sign, detour sign, or route marker.
5. Adjust driving behaviour early. Slow down, change lanes, signal, or prepare to stop before reaching the sign's action point.
6. Stay aware of road conditions. A sign may give the legal or general instruction, but drivers must still respond to weather, traffic, visibility, pedestrians, and road surface conditions.
For example, a speed limit sign may show a maximum speed of 80 km/h. However, if the road is icy, visibility is poor, or traffic is congested, the safe speed may be much lower.
A traffic sign must be seen before it can be understood. Visibility is one of the most important factors in an effective sign system.
A sign may be technically correct but still ineffective if drivers cannot detect it in time.
Important visibility factors include:
- Sign size
- Letter height
- Symbol size
- Colour contrast
- Reflective sheeting
- LED brightness
- Nighttime illumination
- Installation height
- Roadside placement
- Vehicle approach speed
- Viewing distance
- Background clutter
- Trees, utility poles, advertisements, or parked vehicles
- Rain, snow, fog, dust, or glare
- Road geometry and curve alignment
At higher driving speeds, drivers need more time and distance to see, read, understand, and respond to a sign. This is why highway signs are typically larger and placed farther in advance than signs used in parking facilities or low-speed urban streets.
A well-planned sign system should provide a clear message sequence. Drivers should see advance information first, then lane guidance, then the final instruction at the decision point.
Static traffic signs remain essential for permanent rules and standard warnings. However, some locations require messages that can change according to traffic flow, weather, work progress, available parking spaces, lane status, or emergency conditions.
LED traffic signs are particularly useful in environments where real-time communication improves visibility and operational control.
Common applications include:
- Toll stations and electronic toll lanes
- Highway lane-control systems
- Parking garages and parking entrances
- Smart parking guidance systems
- Work zones and temporary lane closures
- School-zone speed reminders
- Construction detours
- Traffic incident warnings
- Variable speed management
- Event traffic control
- Industrial-site vehicle routing
- Logistics-centre entrance and exit management
An LED display can communicate lane availability, directional arrows, speed reminders, parking capacity, vehicle restrictions, temporary closures, or safety alerts.

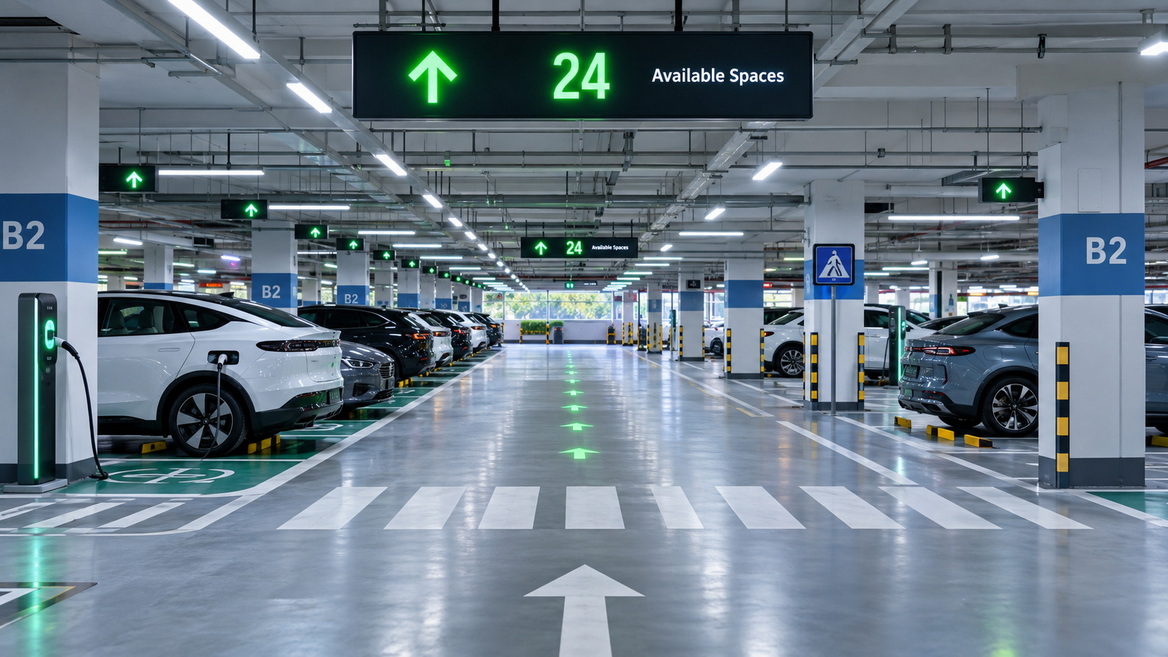

For example, a parking facility can use an LED sign to display:
- Available parking spaces
- Full parking areas
- Entrance direction
- Exit route
- Height restriction
- Electric vehicle charging availability
- Temporary lane closure
- Emergency information
This reduces unnecessary vehicle circulation and helps drivers make faster decisions at entrances and internal intersections.

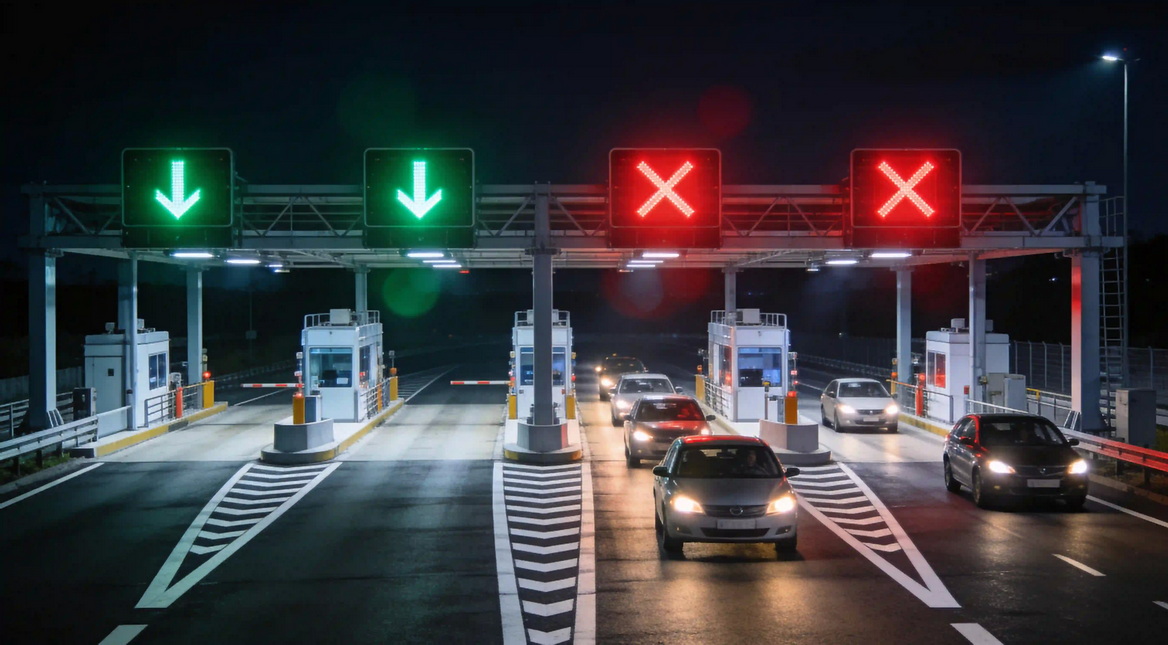

Toll stations are high-pressure driving environments. Drivers must often choose among multiple lanes while slowing down, observing payment instructions, following vehicle restrictions, and responding to changing lane conditions.
A complete toll-station sign system may include:
- Advance directional guide signs
- Toll-lane identification signs
- Cash lane signs
- Electronic payment lane signs
- Heavy-vehicle lane signs
- Height-restriction signs
- Lane-open and lane-closed indicators
- LED arrows and red-cross signs
- Speed-reduction warnings
- Queue-management signs
- Emergency or incident messages
The most effective systems use clear information layers. Drivers should receive early notice before entering the toll plaza, confirmation as they approach the selected lane, and direct guidance at the final decision point.
In this environment, LED lane-control signs can be particularly valuable because lane availability may change throughout the day. A bright green arrow can show an available lane, while a red cross can clearly show a closed lane.
Parking facilities may appear less complex than highways, but they often create confusion because drivers must make frequent low-speed decisions in a limited space shared by vehicles and pedestrians.
Parking safety signs can help organize movement and reduce conflicts.
Common parking-facility signs include:
- Entrance and exit signs
- One-way signs
- Stop and yield signs
- Pedestrian crossing signs
- Speed limit signs
- Reserved parking signs
- Accessible parking signs
- Fire lane signs
- Height-limit signs
- No parking signs
- Electric vehicle charging signs
- Directional arrows
- Parking availability signs
- CCTV monitoring signs
- Loading-zone signs
For larger garages, LED parking guidance signs can display available spaces by floor, zone, or vehicle type. This helps drivers find parking faster and can reduce congestion near entrances.
A clear parking sign plan should also consider pedestrians. Signs, pavement markings, bollards, barriers, and speed-control devices should work together to create a safer environment.
Roadwork and maintenance zones create changing conditions that drivers may not expect. Lanes can narrow, traffic can shift, workers may be close to moving vehicles, and temporary barriers may change the normal road layout.
Temporary traffic signs should be easy to identify and should provide a clear sequence of instructions.
A typical work-zone sign plan may include:
- Roadwork ahead warning
- Workers ahead warning
- Lane closure ahead
- Merge direction signs
- Temporary speed signs
- Detour signs
- Flag person or traffic-control person signs
- Construction vehicle entrance signs
- Pedestrian detour signs
- Cyclist detour signs
- End-of-work-zone signs
Temporary signs must remain accurate throughout the project. A message that no longer matches the road condition can confuse drivers and reduce trust in the traffic-control system.
Traffic managers should inspect signs regularly to check for:
- Damage
- Dirt or reduced reflectivity
- Poor visibility
- Incorrect placement
- Missing panels
- Obsolete information
- Unstable portable supports
- Blocked lines of sight
- Battery or power problems for LED signs
A temporary traffic-control system should be updated whenever the work-zone layout changes.
Traffic-sign buyers should consider more than sign size and price. The correct product depends on the project location, traffic speed, weather exposure, road authority requirements, installation method, and expected service life.
| Selection Factor | Key Considerations |
|---|---|
| Project location | Street, highway, toll station, parking lot, work zone, industrial site, or private road |
| Traffic speed | Higher speeds require earlier placement, larger signs, and stronger visibility |
| Sign purpose | Regulatory, warning, guide, lane control, parking, construction, or dynamic message |
| Material | Aluminium, reflective sheeting, LED display, composite board, steel frame, or portable support |
| Weather resistance | Rain, snow, ice, UV exposure, dust, wind, salt, vibration, and temperature changes |
| Installation method | Pole mounting, overhead gantry, wall mounting, barrier mounting, portable base, or trailer |
| Visibility | Daytime contrast, retroreflectivity, LED brightness, viewing angle, and nighttime performance |
| Customization | Dimensions, symbols, language, logo, packaging, brackets, power supply, and control method |
| Quality control | Drawings, samples, production inspection, material records, testing, and packaging standards |
For OEM and ODM traffic-sign projects, it is important to confirm all design details before production. This may include drawings, sign face layout, dimensions, materials, reflective grade, LED colour, voltage, controller requirements, mounting accessories, packaging, and branding.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. provides LED traffic signs and traffic-safety products for streets, highways, toll stations, parking facilities, construction zones, industrial projects, and custom traffic-management applications. OEM and ODM options can support distributors, contractors, system integrators, private-label buyers, and project-based procurement teams.

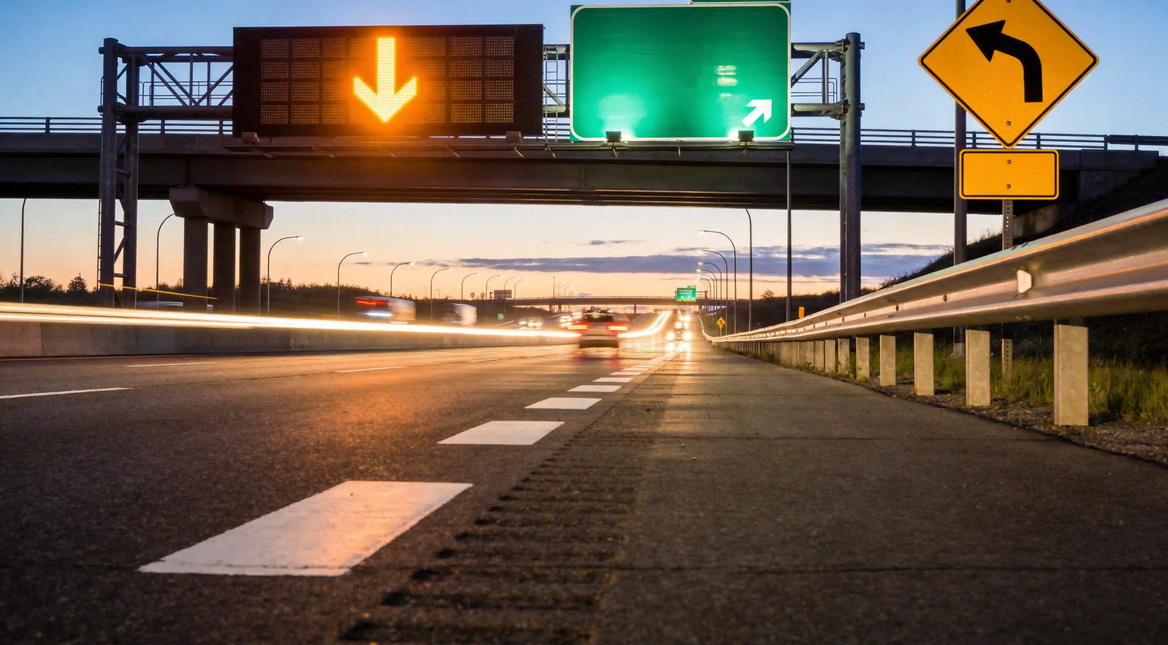

Canada road signs help drivers understand rules, identify hazards, choose the correct route, and respond safely to changing traffic conditions. From warning signs on rural highways to lane-control displays at toll stations and parking guidance signs in busy garages, every sign has a role in making transport systems clearer and safer.
The most effective traffic-sign solutions combine clear design, correct placement, durable materials, strong visibility, and reliable maintenance. Static signs remain essential for permanent road rules, while LED traffic signs provide additional flexibility where conditions change frequently.
For road-safety projects involving highways, city streets, toll stations, parking facilities, construction areas, or industrial sites, a well-planned sign system can improve traffic flow, reduce confusion, and support safer decisions for every road user.
No. Many signs follow similar national principles, but provinces, territories, municipalities, and road authorities may use different specifications, language requirements, sign codes, sizes, and installation practices.
Yellow diamond signs usually provide warnings. They may alert drivers to curves, intersections, wildlife crossings, narrow roads, traffic signals, or other road conditions ahead.
A warning sign alerts drivers to a possible hazard or changing condition. A regulatory sign tells drivers about a rule, restriction, legal requirement, or prohibited action.
No. A speed limit sign indicates the maximum legal speed under normal conditions. Drivers may need to travel below the posted limit when weather, traffic, visibility, road surface conditions, or construction activity make higher speeds unsafe.
LED traffic signs are useful when information must change in real time. Common examples include toll-lane control, parking guidance, temporary lane closures, work zones, incident alerts, event traffic, and variable speed management.
1. Transportation Association of Canada. [Manual of Uniform Traffic Control Devices for Canada]
2. Ontario Ministry of Transportation. [Signs: Official MTO Driver's Handbook]
3. Saskatchewan Government Insurance. [Six Basic Sign Shapes Every Driver Must Know]
4. Canadian Council of Motor Transport Administrators. [Road Safety]
5. Transport Canada. [Road Transportation Statistics and Data]
6. Province of British Columbia. [Traffic Signs and Pavement Marking]
