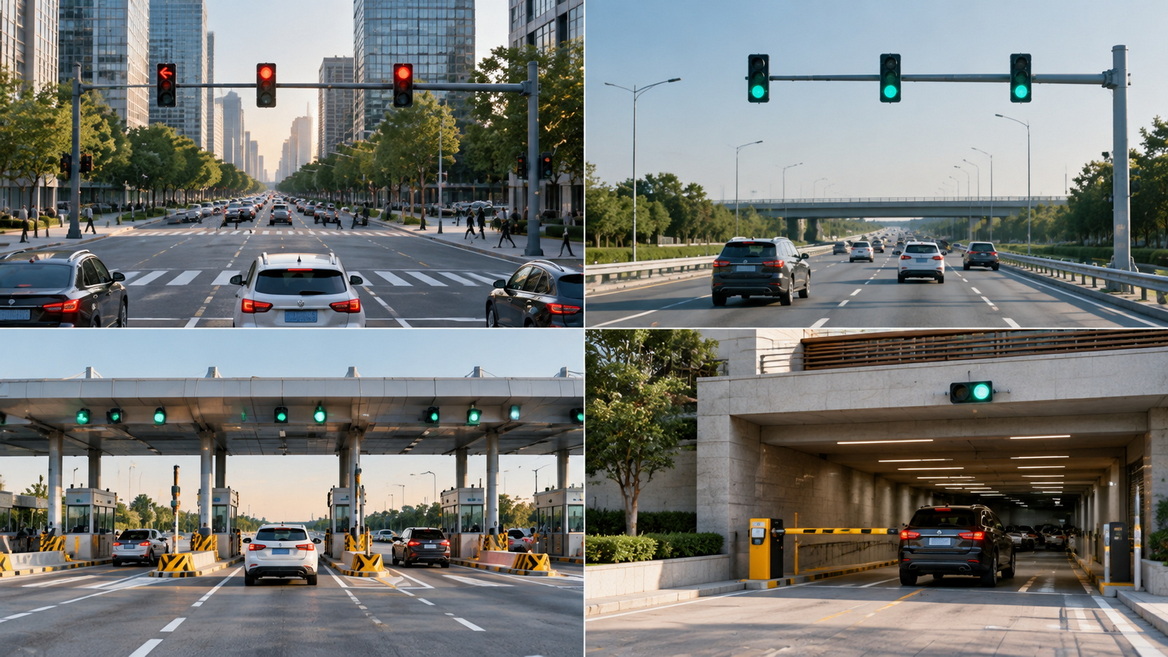

● Which Size Works Best by Location?
>> Urban streets and intersections
>> Highways and faster approaches
>> Toll plazas
● What Changes for Solar Traffic Lights?
>> Cold-weather considerations
● Five Steps to Specify the Right Head
● What to Ask an OEM/ODM Manufacturer
>> Is a 300mm traffic light head always required?
>> Can a new US vehicle signal use a 200mm arrow?
>> Is a 300mm indication always brighter than a 200mm indication?
>> Does a 200mm head always use less solar energy?
>> Can I replace a 200mm module with a 300mm module?
Choosing between a 200mm (8-inch) and a 300mm (12-inch) traffic light head affects more than the appearance of an intersection. The indication must be visible from the intended approach, fit the mounting arrangement, meet local requirements, and work with the project's electrical system. For a solar-powered installation, the decision can also change the panel and battery requirements.
For new, conventional vehicle signals on US public roads, 300mm is the starting point. Smaller 200mm circular indications are allowed only in specified circumstances. Elsewhere, the right choice depends on the applicable standard and the actual site. Rather than asking which size is universally better, ask: Which complete signal assembly gives drivers a clear, compliant indication at this location?
The size refers to the nominal diameter of an individual illuminated indication—the red, yellow, or green display—not the outside width of the complete traffic light head. A three-section head also includes a housing, visors, seals, wiring, and mounting components. A backplate increases its overall dimensions further.
The inch equivalents are nominal, too. Eight inches is 203.2mm, and 12 inches is 304.8mm. Manufacturers may describe their products using either rounded metric or inch sizes, so a buyer should request a dimensioned drawing before approving a mounting design.
This distinction matters during a retrofit. A 300mm module cannot simply be placed in a housing designed for a 200mm module. Replacing the entire head may also affect bracket dimensions, clearances, support loads, and shipping costs. Compare complete assemblies, not just LED modules.
| Decision factor | 200mm (8-inch) indication | 300mm (12-inch) indication |
|---|---|---|
| Illuminated diameter | Smaller visual target | Larger visual target |
| Typical role | Selected applications where local rules permit its use | Starting point for conventional new vehicle signal faces |
| US new vehicle arrows | Not permitted at this size | Required size |
| US new circular indications | Allowed only under listed exceptions | Generally required |
| Space requirements | Often allows a smaller housing | Usually requires more assembly space |
| Power demand | May be lower, depending on the module | May be higher; check product data |
| Main question for the designer | “Is this size permitted and sufficiently visible here?” | “Does this assembly meet the site’s visibility, mounting, and power needs?” |

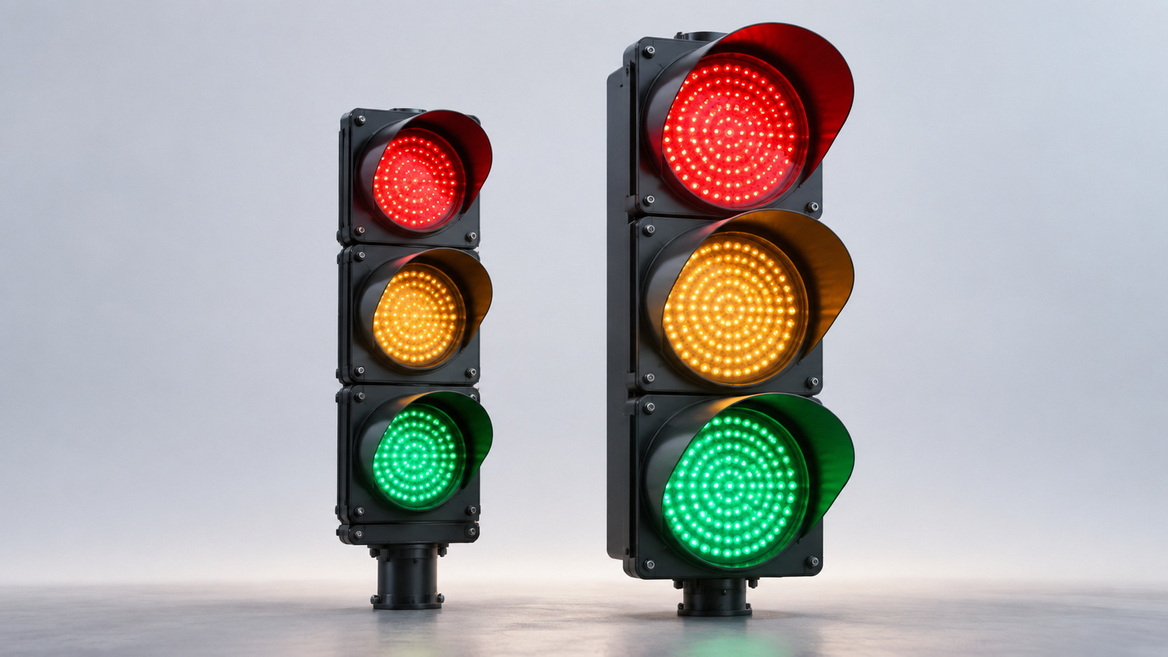

At the same viewing distance, a 300mm circle has 1.5 times the diameter of a 200mm circle. Its illuminated circular area is approximately 2.25 times as large. Those are geometric comparisons, not promises that drivers can identify it 1.5 times farther away. Light output, viewing angle, background contrast, weather, and signal placement all affect recognition.

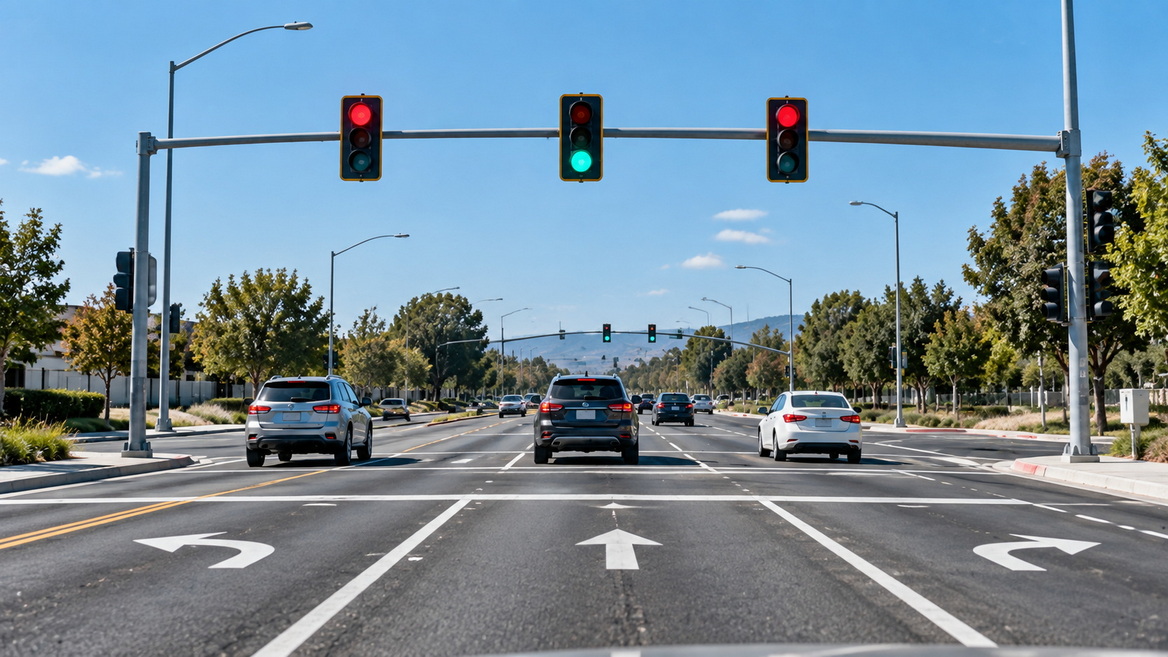

A driver approaching a signal needs enough time to see it, understand which movement it controls, and respond. On a fast approach, a signal that becomes noticeable only near the stop line may not provide an adequate design solution. A larger indication gives the designer a larger visual target, but size cannot correct poor placement.
Review the signal from the driver's actual approach. Consider curves, grades, trees, overhead structures, other signal faces, and bright signs behind the intersection. The distance from the stop line to a face is also important: an indication placed close to drivers serves a different viewing task from one mounted far across a wide intersection.
That is why the same diameter should not be specified automatically for a compact parking entrance and a high-speed road approach. The intended driver, speed, and viewing position are different.
A 300mm indication can still be difficult to distinguish against a visually busy background. Signal placement, aiming, visors, and backplates can help define what the driver sees. In some settings, a properly designed additional face may be more useful than simply enlarging one existing display.
Ask the designer to review the whole approach view, not a close-up photograph of the product. A daytime site visit can reveal sight-line obstructions; a nighttime visit may reveal background lighting that was not obvious earlier.
A larger module is not automatically better in every lighting condition. Two products of the same diameter can differ in how they distribute light toward drivers at different angles. Excessive glare at night can also create problems.
For that reason, procurement documents should request the applicable photometric and color-performance information for the exact module being offered. LED count, a single brightness claim, or an attractive product photograph does not establish how a signal will perform after installation.
For a US project, check the current edition of the Manual on Uniform Traffic Control Devices (MUTCD) and any applicable state requirements. As of September 2026, the federal current edition is the 11th Edition with Revision 1, dated December 2025. Its Section 4E.02 addresses the size of vehicular signal indications.
The central distinction is straightforward:
- Vehicle arrows: All arrow signal indications must be 12 inches.
- New circular vehicle indications: These generally must be 12 inches.
- New 8-inch circular indications: These may be used only in the situations listed in Section 4E.02.
One listed situation involves a circular indication in a signal face less than 120 feet from the stop line on a roadway with a posted or statutory speed limit, or operating speed, of 30 mph or less. Other listed cases include a supplemental near-side face and certain specialized applications.
An exception is permission, not a recommendation. A site that qualifies for an 8-inch indication still needs a sound visibility and placement design. Conversely, do not apply a US exception to an export project without checking the destination's own rules.
The device type also matters. A conventional red-yellow-green vehicle signal, a flashing beacon, and a parking-lane indicator may serve different purposes and be governed differently. Define the device before deciding its size.
For a new conventional vehicle signal at a US intersection, start with a 300mm indication. Then confirm that the number and position of signal faces, mounting arrangement, and approach visibility work together.
A 200mm circular indication can be considered where a specific rule permits it, such as a qualifying close-to-stop-line face on a low-speed approach. The design team should record which provision applies. "The intersection is small" is not, by itself, a sufficient specification.
At higher approach speeds, prioritize early recognition and an unobstructed view. A 300mm indication is generally the more appropriate initial choice for a conventional vehicle signal. Even then, its diameter cannot replace proper placement or solve a blocked sight line.
Assess where drivers first see the signal, whether they can identify the lane or movement it controls, and whether the surrounding environment creates visual competition. These questions should be settled before selecting a housing or support.
A toll plaza contains different viewing tasks. A driver approaching a lane at speed may need to identify a signal well before reaching the booth. A driver already moving slowly through a constrained lane views a display from a much shorter distance.
Specify the approach speed, control function, viewing distance, and governing requirements for each display. Do not assume every illuminated red or green circle at a toll facility is a conventional vehicle traffic signal.
A compact parking entrance may have limited mounting space, making a smaller display attractive. However, limited space alone does not establish that 200mm is suitable. Check the driver's sight line, whether the display controls traffic or only communicates parking availability, and which rules apply to that roadway.
Where drivers must make a safety-critical stop or yield decision, visibility should take priority over a visually compact installation.

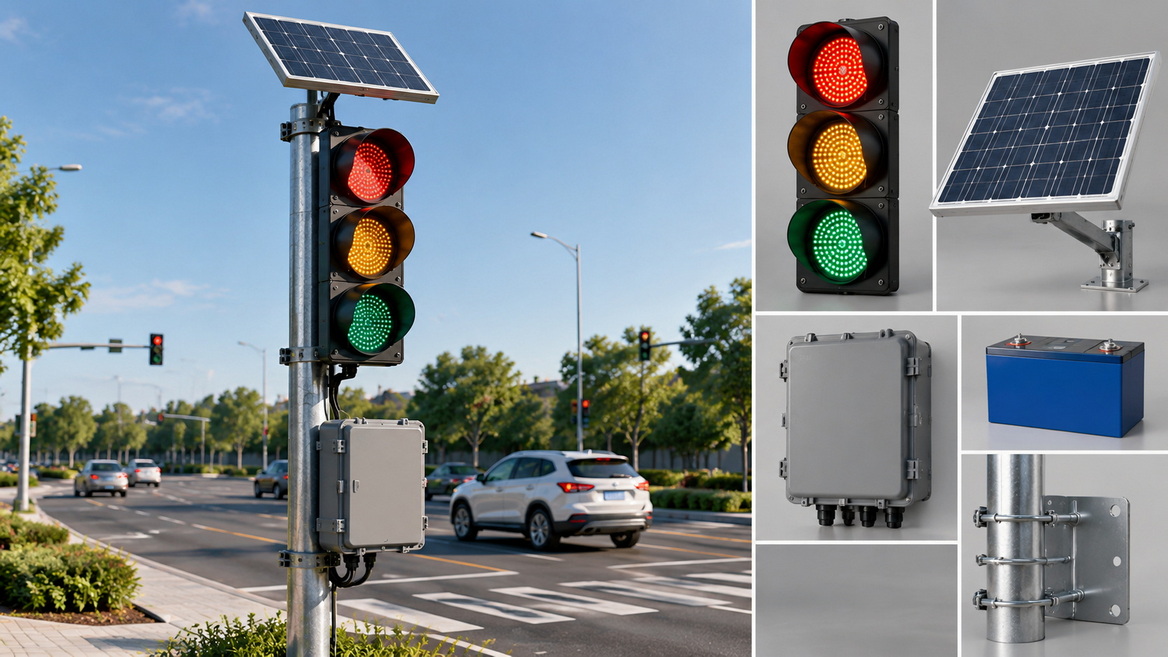

For a solar-powered traffic signal, indication size is also part of the power budget. A larger module may consume more electricity, which can increase the required battery or solar-panel capacity. The difference must be based on the actual products—not an assumed percentage.
As one procurement example, a municipal LED-module specification lists nominal power consumption at 25°C as follows:
| Circular LED module | 200mm | 300mm |
|---|---|---|
| Red | 8 W | 11 W |
| Yellow/amber | 13 W | 22 W |
| Green | 12 W | 15 W |
These are values in one purchaser's specification, not universal ratings for every manufacturer or complete solar signal system. They show why an energy comparison must be made by color and model.
Suppose the red indication is illuminated for a hypothetical 12 hours in one day. At the nominal figures above:
- A 200mm red module would use 96 Wh during those 12 hours.
- A 300mm red module would use 132 Wh during those 12 hours.
- The difference would be 36 Wh for that module on that day.
This is an illustration, not a proposed traffic-signal operating schedule. A real design must calculate how long each indication operates and include the controller, communications equipment, conversion and charging losses, usable battery capacity, and the required period of operation without adequate solar recharge.
For an off-grid project, request calculations for the least favorable charging season. A system sized only from a sunny-season average may not meet its intended autonomy during prolonged cloudy weather.
LED traffic signals produce less incidental lens heat than older incandescent designs. Where snow and ice are likely, ask how the visor and lens shape affect accumulation, whether the head can be reached for maintenance, and what site-approved measures address obscured indications.
Choosing 300mm does not, by itself, solve a snow-covered lens. That issue belongs in the environmental and maintenance plan for either size.
A reliable purchase specification begins with a project brief, not a catalog photograph.
1. Identify the site and governing rules. Record the country, road authority, roadway type, and whether the display is a conventional vehicle signal, supplemental face, beacon, or another device.
2. Describe the approach. Provide speed, lane layout, viewing distance, stop-line location, mounting position, curves, obstructions, and difficult lighting conditions.
3. Confirm the permitted size. For a new US conventional vehicle signal, begin with the 12-inch requirements. If an 8-inch circular indication is proposed, document the applicable exception and obtain the designer's approval.
4. Request model-specific evidence. Obtain drawings, module power ratings by color, optical-performance documents, operating-temperature information, housing details, mounting requirements, and warranty terms.
5. Check the installed system. Verify support capacity, clearances, controller compatibility, service access, replacement-module availability, and—where applicable—the solar energy and battery calculations.
A useful comparison sheet has four columns: requirement, supplier evidence, deviation, and approval status. It prevents a product description such as "300mm LED signal" from being mistaken for proof that the complete assembly fits the project.
Shenzhen Xingsheng Traffic Facilities Co., Ltd. manufactures traffic-safety products, including solar traffic lights, and offers OEM and ODM services. For a street, highway, toll-plaza, or parking project, a request for quotation should identify the site requirements before asking for customization.
Ask the supplier:
- Can you provide the exact indication sizes and colors shown on the approved drawings?
- If arrows are needed, what sizes and configurations are available for the destination market?
- What are the housing's overall dimensions, weight, visor options, backplate options, and mounting interfaces?
- What power does each quoted module draw under the specified conditions?
- Which optical, electrical, and environmental test documents apply to the quoted model and revision?
- For a solar system, what assumptions were used for daily energy demand, panel capacity, battery capacity, and autonomy?
- If the housing or electrical configuration is customized, which test results remain applicable to the finished product?
These questions make the quotation more useful than a price-per-head comparison. They also separate a manufacturer's available options from a project designer's decision that a particular option is suitable.
Choose 300mm (12-inch) as the starting point for new conventional vehicle signals, particularly where the approach is fast, the viewing distance is long, or US size requirements apply. Consider 200mm (8-inch) circular indications only when the relevant rules permit them and the site review supports their use. For solar systems, compare documented module wattages and size the complete power system for the required operating conditions.
A traffic light head is successful only when the installed signal is clear, correctly placed, and appropriate for its roadway. Send Shenzhen Xingsheng Traffic Facilities Co., Ltd. your project location, applicable standard, approach speed, signal drawings, required indication sizes, and solar autonomy target to request a model-specific technical comparison and quotation.
No. Requirements vary by jurisdiction and application. For new US vehicular signal faces, 12-inch circular indications are generally required, while 8-inch circular indications are permitted in specified cases. All vehicle arrow indications must be 12 inches.
No. The current MUTCD requires 12-inch arrow indications. An exception that permits an 8-inch *circular* indication does not extend to an arrow.
Not necessarily. Diameter affects the size of the visual target, but useful light output depends on the module's design and performance at relevant viewing angles. Compare documentation for the exact models, rather than relying on size alone.
No. It may use less power, but the difference varies by module and color. Check the quoted electrical ratings, then calculate the energy demand of the complete signal system.
Usually not as a simple module swap. Check the housing, seals, mounting, wiring, controller compatibility, support capacity, and required signal-face design. A complete head replacement may be necessary.
