● Why Wheel Stoppers Matter for Parking Safety
● How Wheel Stoppers Work in Real‑World Parking Lots
● Main Types of Wheel Stoppers by Material
>> Overview Table – Concrete, Rubber, Plastic, Metal
● Compliance, Standards, and Safety Requirements
>> Australian Standard Example
● Common Applications of Wheel Stoppers
● Selecting the Right Height and Size
>> Practical Selection Guidelines
● Step‑by‑Step Wheel Stopper Installation Guide
>> Removing or Relocating a Wheel Stopper
● Ongoing Safety and Maintenance Best Practices
● Common Mistakes and How to Avoid Them
>> Loose or Improvised Installation
>> Wrong Product for the Environment
● Market and Design Trends in Wheel Stoppers
● UX and Visual Design – Where to Use Images and Video
● When to Involve a Parking Safety Specialist
● Planning Your Next Parking Safety Upgrade
>> Q1: Are wheel stoppers required in every parking lot?
>> Q2: How often should wheel stoppers be inspected?
>> Q3: Can one wheel stopper design serve both cars and trucks?
>> Q4: Do rubber wheel stoppers last as long as concrete ones?
>> Q5: How do wheel stoppers influence accessibility for disabled users?
Wheel stoppers—often called curb stops, parking blocks, parking curbs, wheel chocks, or parking bumpers—are low‑profile barriers installed at the end of parking bays to physically limit vehicle movement. When a driver's wheel gently contacts the stopper, it provides a clear, tactile signal that the vehicle has reached the end of the space, preventing roll‑backs, wall impacts, and encroachment into pedestrian walkways. In well‑designed parking lots, wheel stoppers work as part of a broader traffic safety system alongside LED traffic signs, pavement markings, bollards, and guardrails.
In busy parking facilities—shopping centers, airports, hospitals, office complexes—most minor accidents happen at low speed: a vehicle rolls back, clips a pedestrian, or bumps another parked car. Well‑placed wheel stoppers significantly reduce these incidents by keeping vehicles within their designated bay and providing a physical buffer before they reach walls, sidewalks, or protected infrastructure.
From daily project experience, facility owners who upgrade from improvised concrete blocks to standardized wheel stopper systems typically see:
- Fewer scrapes on walls, columns, and EV charging equipment.
- Reduced complaints from pedestrians about tripping hazards.
- More organized parking, especially in tight underground garages and mixed‑use sites.
When a driver enters a parking bay, they move forward or reverse until the front or rear wheels gently contact the wheel stopper. The resistance at the wheel tells the driver they have reached the end of the space and should apply the brake and park. Once the vehicle is parked, the stopper acts as a physical barrier, preventing the wheels from rolling back into pedestrian zones or other vehicles.
In underground or low‑light areas, contrasting reflective bands—typically yellow or orange on a black body—greatly improve visibility so pedestrians and drivers can see the stops and avoid tripping or over‑shooting. This is especially important in multi‑level garages and EV charging alleys with mixed foot and vehicle traffic, where visual guidance has a direct impact on everyday safety.

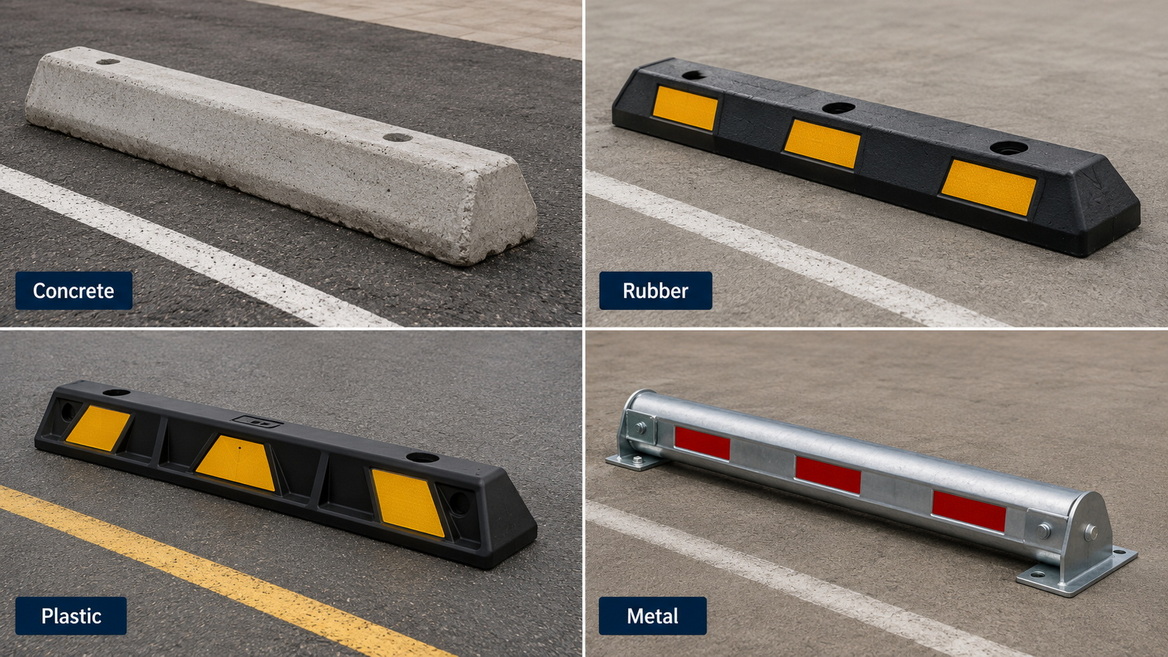

Different facilities, vehicles, and climates call for different wheel stopper materials. Choosing the right type is one of the most important specification decisions a parking designer or road safety engineer will make.
| Wheel stopper type | Key properties | Typical applications | Limitations |
|---|---|---|---|
| Concrete | Very durable, heavy, impact‑resistant. | Outdoor commercial lots, high‑traffic public parking. | Heavy to install, higher labor and total cost. |
| Rubber | Flexible, impact‑absorbing, weather‑ and wear‑resistant. | Indoor garages, commercial & residential lots, EV bays. | Less suitable for very heavy vehicles and extreme impact. |
| Plastic | Lightweight, easy to move, good for temporary setups. | Malls, schools, event areas, short‑term parking. | Lower impact resistance than concrete or rubber. |
| Metal | Strong, suited for heavy‑duty vehicles. | Industrial yards, loading docks, truck bays. | Prone to rust, noisier, requires regular maintenance. |
Concrete wheel stoppers are the traditional choice for outdoor, high‑traffic car parks because they are heavy, strong, and highly impact‑resistant. They withstand repeated contact from vehicles, including heavy SUVs and light trucks, and perform well in a wide range of weather conditions. Their mass and rigidity create a solid barrier, but this also means installation requires more labor, specialized tools, and often professional support, increasing the total project cost.
Rubber wheel stoppers are increasingly popular where flexibility, comfort, and lower installation cost are priorities. High‑quality rubber stops are compression‑resistant, anti‑skid, and resistant to weathering and ultraviolet radiation, making them ideal for indoor garages, commercial basements, and residential parking. Because they absorb impact rather than transferring it directly, they are friendlier to vehicle tires and suspension, and they can be installed or repositioned quickly with basic tools.
Plastic wheel stoppers, often made from high‑density polyethylene or nylon, are valued for their lightweight construction and ease of handling. They work well in temporary or low‑impact environments like shopping centers, restaurants, universities, and event venues, where rapid installation and removal are essential. Modern nylon stoppers can be reflective and weather‑resistant, yet they still offer lower impact resistance than concrete or rubber, so they are rarely used in heavy‑duty industrial bays.
Metal wheel stoppers—typically steel or aluminum—are specialty products for high‑impact industrial zones, loading docks, or truck yards. Their strength makes them suitable where heavy vehicles must be tightly controlled and where minor movement could have serious consequences. However, they are prone to rust without appropriate surface treatment and require regular inspection and maintenance to remain safe. Operators also need to account for higher noise levels when vehicles contact metal surfaces, particularly in covered or residential facilities.
Wheel stoppers are more than simple blocks; they are regulated safety devices subject to international accessibility and building codes. In many markets, agencies and standards committees define how wheel stoppers should be designed and installed to protect both drivers and pedestrians.
Key principles include:
- Wheel stoppers must not obstruct accessible routes or designated disabled parking bays.
- Contrasting colors and reflective strips are recommended so they are clearly visible in daylight and low‑light conditions.
- Height is typically specified around 90–100 mm, with standardized widths, to minimize tripping risk while still stopping vehicles reliably.
- Installations must not block emergency access routes, drainage channels, or main pedestrian pathways.
One widely recognized example is the Australian Standard for parking facilities, which requires wheel stoppers to be clearly visible with contrasting colors, around 90–100 mm high, and installed at precise distances from kerbs to protect both vehicles and pedestrians. Additional standards focused on accessibility and trip‑hazard reduction require clear access zones around disabled parking spaces and careful consideration of slopes, edges, and detectable warnings near walkways. These requirements illustrate how wheel stoppers influence the entire geometry of a parking area, not just the end of each bay.
Wheel stoppers are now standard equipment in most professionally designed parking areas. They appear in a wide variety of environments:
- Parking lots – to organize vehicle rows and protect landscaping, façades, and pedestrians.
- Residential and commercial garages – to prevent vehicles from hitting walls, doors, stored equipment, or staircases.
- Shopping malls and supermarkets – to keep high‑turnover parking spaces safe for shoppers, carts, and delivery vehicles.
- Airports and transport hubs – to maintain safe spacing in pick‑up and drop‑off lanes as well as short‑stay parking.
- EV charging stations – to position vehicles precisely, protecting chargers, pedestals, and cable management systems.
In modern parking design, wheel stoppers perform best when integrated with LED traffic signs, clear pavement markings, and carefully planned circulation routes, especially in large or multi‑level installations.
One of the most common issues identified during site audits is the use of inappropriate wheel stopper size for the vehicle mix and parking layout. An incorrect height or length can either fail to stop the vehicle effectively or cause damage to low‑profile cars and tires.
When specifying wheel stoppers, a structured approach helps avoid costly mistakes:
1. Consider the location.
- High‑traffic outdoor spaces and areas exposed to larger vehicles generally suit concrete stops.
- Commercial and residential garages, malls, medical centers, and similar environments often benefit from rubber or plastic stops with reflective strips.
2. Match the vehicle types.
- Standard cars and SUVs typically work well with heights around 3–4 inches.
- Sports and luxury cars often require low‑profile stoppers around 2–2.5 inches to avoid bumper or underbody contact.
- Trucks, vans, and forklifts may call for taller stoppers around 5–6 inches for effective restraint.
3. Align with the parking bay length.
- Standard spaces usually use longer stops (around 6 feet) to cover the expected wheel path.
- Compact or special bays may use 3–4 foot stops where maneuvering space is limited.
4. Prioritize visibility.
Regardless of material, high‑visibility bands in yellow or orange significantly reduce trip incidents and improve driver guidance, especially in basements and other low‑light environments.

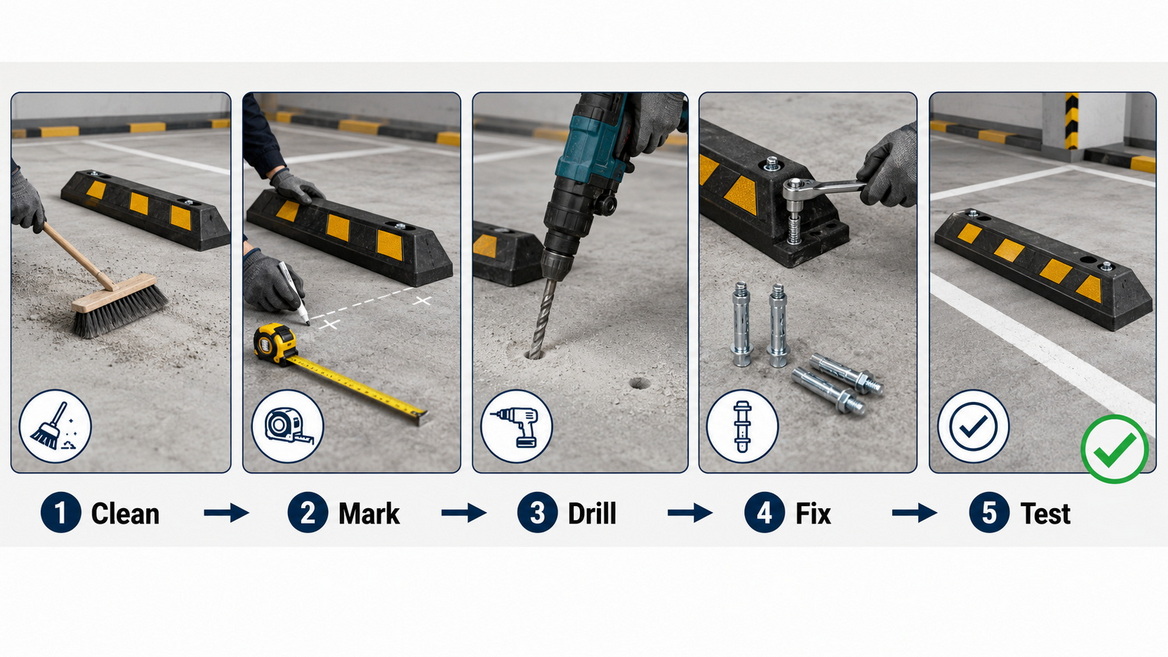

Correct installation is just as critical as material choice. A well‑engineered stopper can become ineffective or hazardous if positioned or fixed poorly.
1. Prepare the surface.
Ensure the area is clean, dry, and level. Remove dust, debris, loose gravel, and any substances that might interfere with adhesion or anchoring.
2. Position the stopper.
Place the stopper at the recommended distance from walls or obstacles, aligned with the expected wheel path. Check its alignment with bay markings and surrounding structures.
3. Mark fixing points.
While the stopper is in the desired position, mark the fixing holes on the surface using chalk or a marker so drilling locations are precisely defined.
4. Drill anchor holes.
Remove the stopper and drill holes using a hammer drill and a bit matched to the anchor bolts. Drill to the correct depth according to the anchor specifications.
5. Insert anchors and refit.
Install anchors into the drilled holes, then position the stopper again and insert bolts through its fixing holes into the anchors.
6. Tighten and test.
Tighten all bolts firmly and attempt to move the stopper to check for any wobble or shift. If movement is noticed, re‑check the anchors and bolt tension.
7. Final alignment and cleaning.
Confirm alignment with bay markings and remove remaining dust or debris from the surrounding area. A quick parking test with a typical vehicle helps verify that the contact point and stopping behavior feel natural to drivers.
Over time, parking layouts may change, or worn units may need replacement. In those cases, a controlled removal process is important:
1. Identify the type and size of the bolts or fasteners used.
2. Loosen and remove bolts using the appropriate wrench or socket; apply penetrating oil if corrosion is present and wait for it to take effect.
3. Carefully lift the stopper, using assistance or mechanical support for heavy concrete or metal units.
4. Clean dust, fragments, and any damaged material from holes and surrounding surfaces.
5. Dispose of the unit responsibly or store it for reuse if still in good condition.
Even the best wheel stopper products can become unsafe if neglected. A simple, structured maintenance plan keeps them functioning as intended and protects both drivers and pedestrians.
Recommended practices include:
- Visible placement. Install stoppers where drivers can see them early, a short distance before walls or obstacles, and avoid hidden or awkward positions.
- High‑contrast markings. Use products with bright, durable reflective strips in areas with low natural light or complex circulation patterns.
- Routine inspections. Check regularly for cracks, loose bolts, fading strips, misalignment, and any movement. Replace damaged or unstable units promptly.
- Clean surroundings. Remove dust, standing water, snow, or ice around stoppers to maintain friction and visibility.
- Precise alignment in EV bays. Ensure vehicles stop at a position that protects charge points and cable systems while preserving clear pedestrian paths.
Years of field experience in parking projects show that a few recurring issues cause most problems. Addressing these mistakes early can greatly improve safety and reduce maintenance costs.
A frequent mistake is treating wheel stoppers as "install once and forget" components. In reality, they should be part of the facility's routine inspection checklist, with clear responsibility assigned to site staff. A monthly visual audit—checking bolt tightness, surface cracks, and strip visibility—helps prevent minor defects from turning into significant hazards.
Improvised installation, such as using incorrect anchors, mismatched drill sizes, or partially tightened bolts, can result in wheel stoppers that move under load. At best, this undermines their stopping function; at worst, a dislodged stopper can become a trip hazard or create an unexpected obstacle for vehicles. Following manufacturer instructions and choosing anchors suitable for the underlying surface (concrete, asphalt, or pavers) is essential.
Another common issue is choosing the wrong product for the environment: heavy concrete stops in a high‑turnover shopping mall, unprotected metal stops in pedestrian‑rich areas, or non‑reflective stops in underground garages. These mismatches increase maintenance costs and safety risks. Aligning material, height, and visibility with vehicle types, traffic patterns, and lighting conditions is a fundamental part of modern parking design.
In recent years, wheel stopper designs have evolved along with broader traffic safety and parking trends. Operators and designers increasingly look for solutions that balance safety, environmental performance, and ease of installation.
Key trends include:
- Growing use of rubber and advanced plastics with better impact absorption and flexibility.
- Increased interest in recycled materials and environmentally conscious product lines.
- Strong preference for reflective, high‑visibility designs that reduce pedestrian accidents and improve driver guidance.
- Demand for modular, easy‑to‑install products that fit seamlessly into smart‑parking systems and integrated traffic management layouts.
For manufacturers of LED traffic signs and parking safety systems, aligning wheel stopper offerings with these trends—through coordinated color schemes, branded reflective bands, and compatible mounting options—creates a more cohesive environment for both drivers and pedestrians.
Because parking design is highly visual, well‑chosen images and diagrams significantly improve understanding and trust for readers. Practical content about wheel stoppers benefits from visuals at key points. Consider integrating:

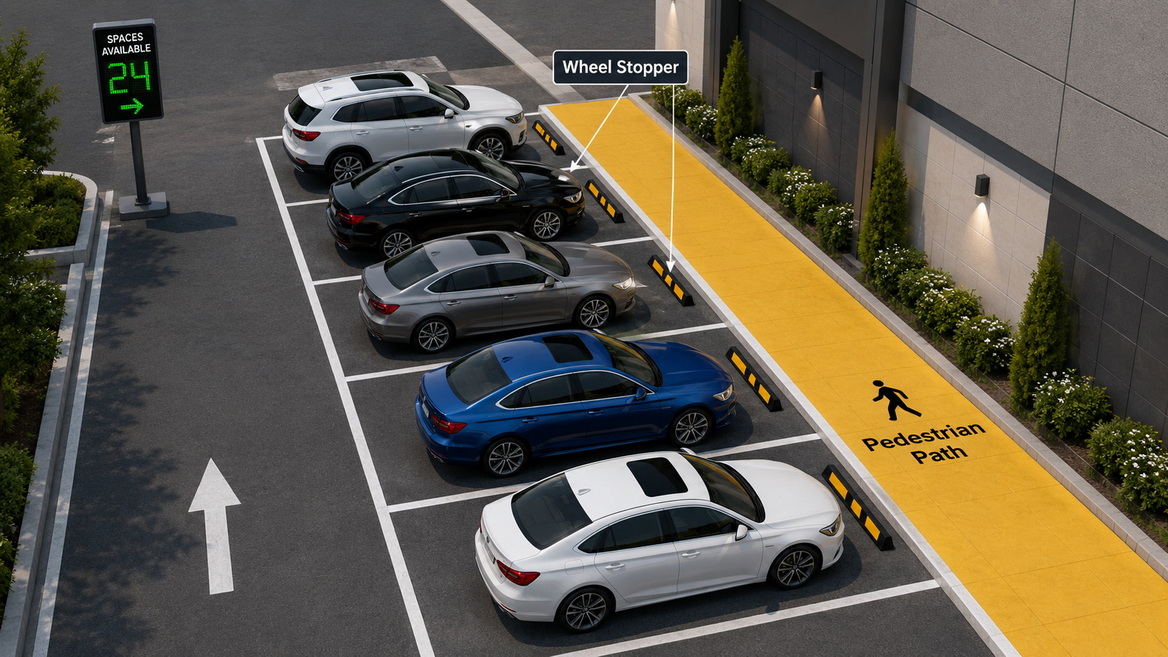

- A labeled diagram of a parking bay showing wheel stopper position, pedestrian pathway, and emergency access routes.
- Close‑up photos of different materials (concrete, rubber, plastic, metal) with focus on their surface texture and reflective strip design.
- A short installation video demonstrating drilling, anchoring, and alignment for a rubber wheel stopper in an indoor bay.

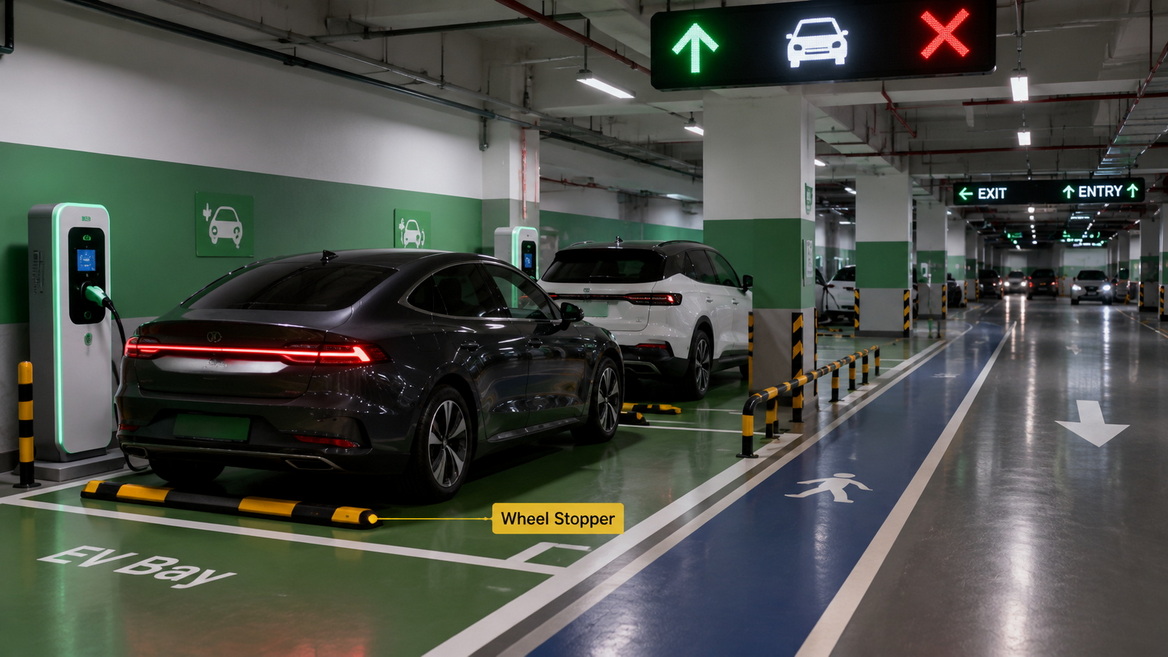

- Before‑and‑after photos showing an upgraded EV charging area with properly aligned wheel stoppers and clear LED sign guidance.
These visual elements help readers imagine real‑world situations, reduce uncertainty about installation steps, and support better decision‑making when planning upgrades or new projects.
Small residential garages can often install basic wheel stoppers themselves, but commercial projects with high volumes, mixed vehicle fleets, or complex accessibility requirements benefit from professional input. A specialist with experience in traffic safety and parking design can:
- Review drawings to ensure compliance with accessibility, building, and fire regulations.
- Recommend optimal wheel stopper materials and heights for the vehicle mix and expected impact loads.
- Integrate wheel stoppers with LED traffic signs, pavement markings, speed control devices, and other parking control solutions.
In addition, collaborative development of custom wheel stopper and signage solutions through OEM or ODM services can meet specific branding, layout, or functional requirements for toll stations, airports, large retail chains, and industrial parks.
If your parking facility still relies on improvised concrete blocks, inconsistent stopper sizes, or non‑reflective products, it may be time to reassess your safety infrastructure. A structured review helps reveal where improvements will have the greatest impact.
Start by examining the current wheel stopper layout in relation to accessibility rules, pedestrian routes, and emergency pathways. Identify high‑risk zones such as low‑light areas, EV charging bays, loading docks, and tight turning zones where enhanced materials and visibility can significantly improve safety. Then consider how coordinated wheel stoppers, LED traffic signs, and markings can work together to create a safer, more intuitive experience for drivers and pedestrians.
A relatively modest, well‑planned investment in wheel stoppers and related traffic safety products can deliver measurable benefits in reduced accidents, lower repair costs, and improved comfort for everyone using your parking spaces.
Requirements vary by region. In many places, wheel stoppers are recommended or required in specific configurations, especially near pedestrian walkways, EV charging points, and accessible bays. It is always wise to review local building and accessibility rules when designing or upgrading a facility.
For busy commercial facilities, a monthly visual inspection combined with an annual detailed review works well. This schedule allows site managers to spot damage, loose fasteners, fading reflective strips, or misalignment before problems become serious.
Some heavy‑duty designs can serve mixed fleets, but in practice it is better to adjust height and material to the dominant vehicle type. Passenger cars, sports models, delivery vans, and trucks all impose different demands, and tailoring designs improves both safety and driver comfort.
High‑quality rubber stoppers can deliver excellent lifespan in indoor and moderate outdoor environments, especially where impacts are frequent but not extremely heavy. Concrete remains a strong choice for very heavy traffic or harsh climates, but rubber often offers advantages in installation speed, comfort, and visual design.
When correctly designed and placed, wheel stoppers protect accessible bays by stopping vehicles at the right distance while keeping a clear access zone beside the space. Poor placement that intrudes into wheelchair transfer areas or pedestrian routes can create barriers, so careful attention to layout and local accessibility rules is essential.
