Night visibility is one of the most important factors in traffic safety. In many road environments, High-Intensity Prismatic (HIP) reflective sheeting and LED illumination are both used to improve driver detection, but they solve the visibility problem in different ways. HIP depends on retroreflection from vehicle headlights, while LED illumination creates its own light source and is often stronger in low-light or attention-critical situations.
For traffic engineers, municipalities, and manufacturers, the real question is not simply which one is brighter. It is which technology performs better in the right application—street intersections, highways, toll stations, parking lots, school zones, or emergency warning areas.
HIP, or High-Intensity Prismatic sheeting, is a retroreflective material designed to send headlights back toward the driver with greater efficiency than basic reflective film. In practice, HIP improves sign conspicuity at night and is widely used where traffic control devices must remain visible without power.

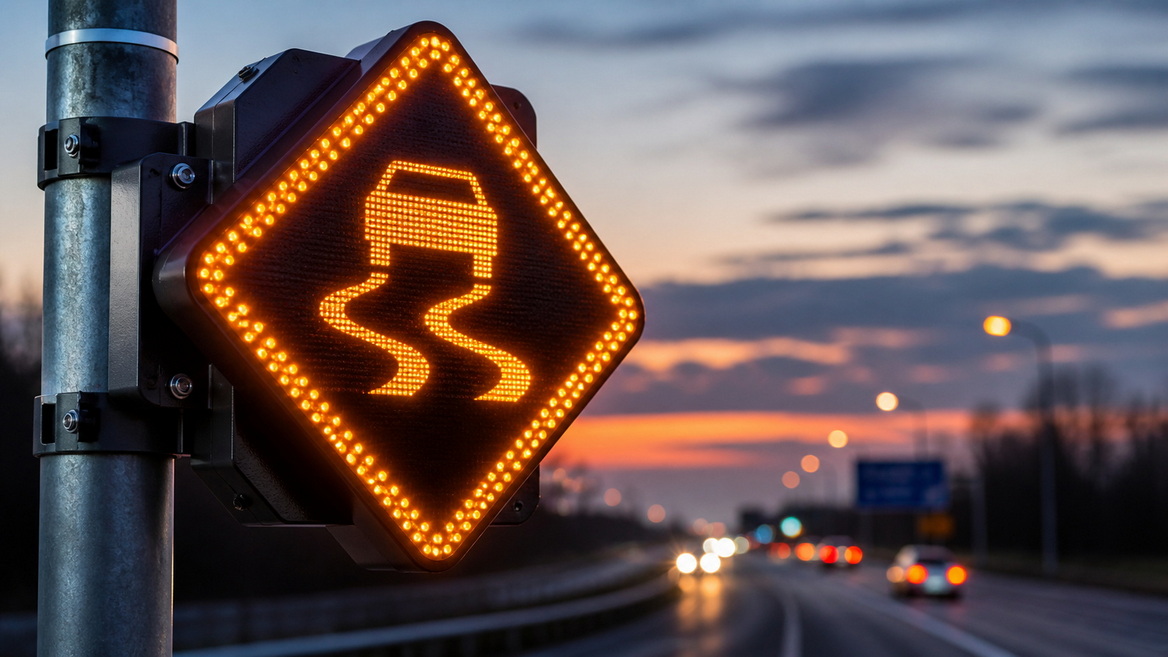

LED illumination, by contrast, uses electrically powered light-emitting diodes to actively light up a sign, warning device, or traffic control element. TAC's guidance on LED-embedded traffic signs explains that LEDs can increase conspicuity and legibility distance in low-light conditions, but they must be used carefully because excessive use can distract drivers.
The most important difference is simple: HIP reflects light; LED emits light. HIP works only when a vehicle headlight or other light source hits the sign at an appropriate angle, while LED illumination works even when ambient light is poor or the driver's headlights do not strike the sign directly.
That makes HIP highly effective for passive visibility and LED better for active warning. In dense urban traffic, complex intersections, and places where drivers must react quickly, LED-enhanced devices often create stronger attention capture than reflective materials alone.
| Factor | HIP | LED Illumination |
|---|---|---|
| Light source | Passive, reflects vehicle headlights | Active, produces its own light |
| Best use case | Static signs, general night guidance | Warning signs, critical alerts, low-visibility locations |
| Power requirement | None | Requires power and maintenance |
| Visibility in darkness | Good when headlights hit the sign | Excellent, even in very dark conditions |
| Attention capture | Moderate | High |
| Risk of distraction | Low | Higher if overused |
| Maintenance | Low | Medium to high |
| Cost profile | Lower upfront and operating cost | Higher upfront, higher lifecycle complexity |
This table shows why the two technologies are not direct substitutes. HIP is usually the better baseline solution, while LED illumination is the stronger high-alert solution for critical road situations.
HIP is a strong choice when the goal is dependable night visibility without electrical infrastructure. It is commonly suitable for city streets, school zones, intersections, and parking lots where signs must stay visible but do not need to flash or draw urgent attention.
HIP is also valuable in locations where maintenance access is limited. Because it does not depend on power, it avoids issues like controller failure, wiring damage, and dark sign risk during outages. For many public agencies, that reliability makes HIP the most cost-efficient improvement over standard reflective sheeting.
LED illumination is usually the better option when visibility must be impossible to miss. TAC notes that LED-embedded signs can increase conspicuity, especially when a sign is unexpected, when driver attention is diverted, or when the approach condition is visually complex.
This is why LED warning devices are especially relevant for:
- Toll stations and toll plaza approaches.
- Curve warning points and channelization zones.
- Temporary construction areas.
- Parking entrance control.
- School zone warning systems.
- Emergency and hazard alerts.
For a manufacturer like Shenzhen Xingsheng Traffic Facilities Co., Ltd., this is the area where OEM and ODM LED traffic warning solutions can create the most value. LED products are especially effective when the customer needs a customized flashing pattern, color, housing, or mounting structure for a specific road condition.
Different traffic environments call for different visibility strategies. A one-size-fits-all approach is usually inefficient.

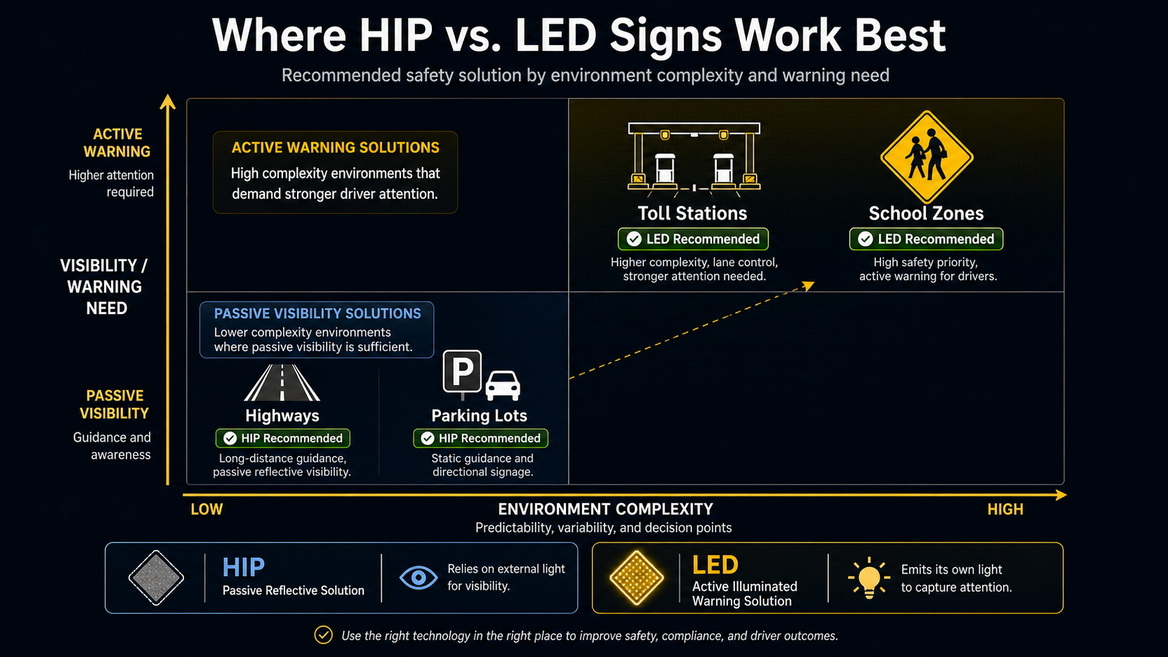

| Application | Better Choice | Why |
|---|---|---|
| Street signs in lit urban roads | HIP | Reliable, low-maintenance, cost-efficient |
| Rural intersections | HIP or LED | Depends on crash history and approach speed |
| High-speed highways | LED in critical warning points | Stronger driver attention |
| Toll stations | LED | Higher conspicuity at decision points |
| Parking lots | HIP for static guidance, LED for warnings | Balances cost and visibility |
| Temporary work zones | LED | Fast attention and dynamic warning |
| School zones | HIP or LED | LED is stronger where urgency matters |
This decision framework reflects a practical engineering principle: choose the light system based on risk, speed, complexity, and driver workload rather than brightness alone.
HIP usually wins on simplicity. It does not require wiring, controllers, sensors, or electrical inspection, so the total maintenance burden is lower over time. For buyers focused on stable long-term performance, this can be a major advantage.
LED systems typically cost more to install and maintain, but they can deliver higher warning performance. TAC's guidance also stresses that LED intensity should be controlled, inspected, and sometimes adjusted with photo-sensors or clocks to reduce glare and protect effectiveness. In other words, LED is more powerful, but it also demands more management.
From a human-factors perspective, visibility is not only about seeing a sign. It is about noticing it early enough to react safely. TAC notes that LED-embedded signs may help when driver attention is not naturally directed toward the sign, which is one reason flashing or illuminated devices often outperform purely passive visibility treatments in attention-critical sites.
At the same time, too much lighting can reduce effectiveness by creating clutter. This matters for modern road networks where drivers already face dense visual information from vehicles, storefronts, signals, and digital displays. HIP is less intrusive, while LED is more forceful and should be deployed selectively.
Use this quick method when deciding between HIP and LED.
1. Identify the main problem.
- If the issue is routine night visibility, start with HIP.
- If the issue is driver inattention, unexpected conflict, or critical warning, evaluate LED.
2. Check the site conditions.
- Consider speed limit, crash history, visual complexity, and available power.
- High-speed and high-risk approaches usually justify stronger conspicuity tools.
3. Estimate lifecycle cost.
- HIP is lower cost and lower maintenance.
- LED can provide more impact but may require electrical inspection and component replacement.
4. Decide whether the message must flash or stay static.
- Static guidance often fits HIP.
- Urgent warnings usually fit LED.
5. Verify compliance and local standards.
- LED warning devices should follow applicable engineering guidance and local policy.

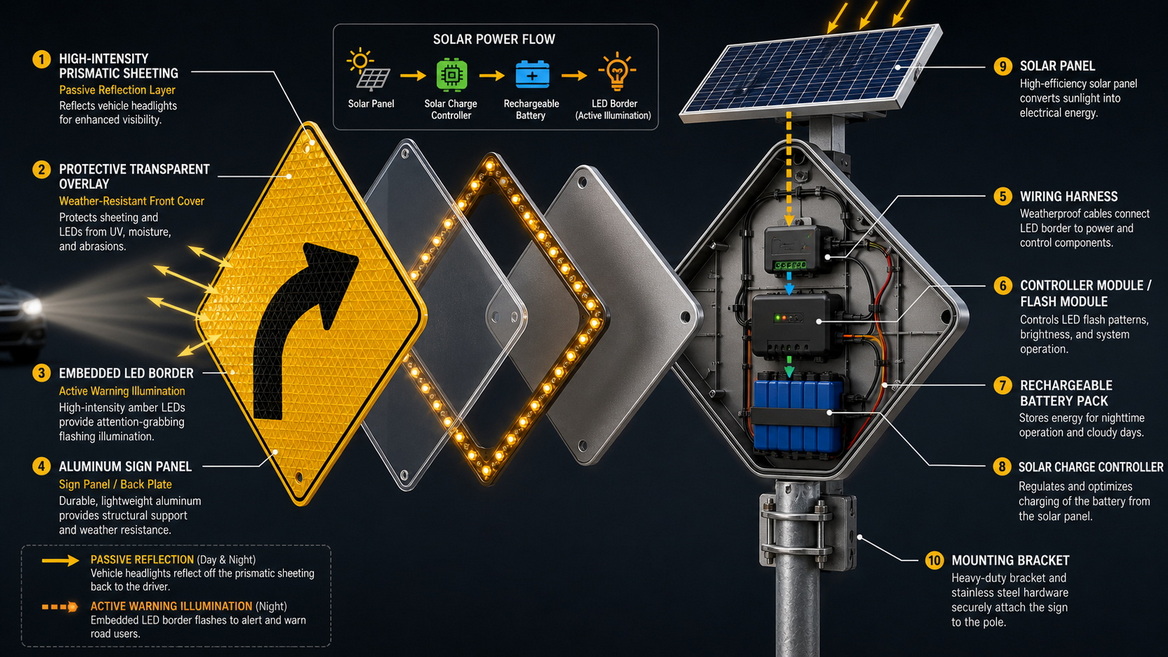

From a product and OEM perspective, the best solutions are often hybrid. A road safety product can combine HIP for passive reflectivity with LED for active warning. This approach is especially strong for manufacturers serving highways, toll stations, and parking facilities, because customers want both daytime reliability and night-time conspicuity.
In real projects, that often means:
- HIP on the base sign surface.
- LED border or perimeter enhancement.
- Flashing warning pattern for high-risk situations.
- Custom housing for weather resistance and installation efficiency.
That combination is especially relevant for export customers who need a solution that performs across different climates, road regulations, and power conditions.
Use HIP when:
- The sign is static.
- Power is unavailable or unreliable.
- Budget and maintenance simplicity matter.
- The site already has moderate visibility.
Use LED illumination when:
- The warning is urgent.
- The site is complex or high-risk.
- Drivers need stronger attention capture.
- Night-time visibility is critical for safety outcomes.
Use both when:
- The location is high-risk and the message must be visible both passively and actively.
- The customer wants a premium traffic safety solution with layered conspicuity.
If the goal is low-cost, dependable, passive night visibility, HIP is usually the smarter choice. If the goal is stronger attention capture and enhanced safety in critical conditions, LED illumination is the better tool.
For traffic safety buyers, the most effective decision is not choosing one technology forever. It is matching the technology to the site risk. For OEM/ODM buyers, this also opens the door to customized LED warning products that combine visibility, durability, and brand-specific engineering.
If you are planning a traffic safety project for streets, highways, toll stations, or parking lots, choose a solution based on the site's speed, visibility, and risk level—and consider a hybrid HIP + LED design for maximum night performance.
Contact us to get more information!
Yes. HIP is designed to return more headlight energy to drivers than basic reflective sheeting, which improves nighttime visibility.
No. LED is stronger for warning and attention, but HIP is often better for static signs, lower cost, and simpler maintenance.
Yes. LED systems require power, electrical components, and routine inspection, while HIP is passive and simpler to maintain.
For critical warning points on highways, LED is often better. For ordinary static signs, HIP is usually sufficient.
Yes. A hybrid design can combine HIP's passive reflectivity with LED's active warning effect for stronger night visibility.
